Cover for tee FT 400 | 1

morepic-1

morepic-2

Cover for tee FT

Item no. 6226124 | EAN 4012196535712

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with turn buckles for covering T pieces with welded rungs.

Technical data

Technical data

Dimension	B400
Dimension B	400 mm
Fastening type	Sash lock
Material	Steel
Material thickness	1 mm
Plate thickness	1 mm

Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Surface	Hot-dip galvanised
Wide-span version	no
Width	400 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LTD 200 R3 FT	200 mm	1 mm	6226120	piece	1 piece
LTD 300 R3 FT	300 mm	1 mm	6226122	piece	1 piece
LTD 400 R3 FT	400 mm	1 mm	6226124	piece	1 piece
LTD 450 R3 FT	450 mm	1.25 mm	6226126	piece	1 piece
LTD 500 R3 FT	500 mm	1.25 mm	6226128	piece	1 piece
LTD 600 R3 FT	600 mm	1.25 mm	6226130	piece	1 piece
LTD 750 R3 FT	750 mm	1.25 mm	6226132	piece	1 piece
LTD 800 R3 FT	800 mm	1.25 mm	6226134	piece	1 piece
LTD 900 R3 FT	900 mm	1.25 mm	6226136	piece	1 piece
LTD 1000 R3 FT	1000 mm	1.25 mm	6226138	piece	1 piece
LTD 1200 R3 FT	1200 mm	1.25 mm	6226142	piece	1 piece

Downloads

Data sheet LTD 400 R3 FT / 6226124 , 0.22MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LTD 400 R3 FT / 6226124 , 0.10MB , pdf

UK Declaration of Conformity LTD 400 R3 FT / 6226124 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic LTD 400 R3 FT / 6226124, 65.36 kB, jpg

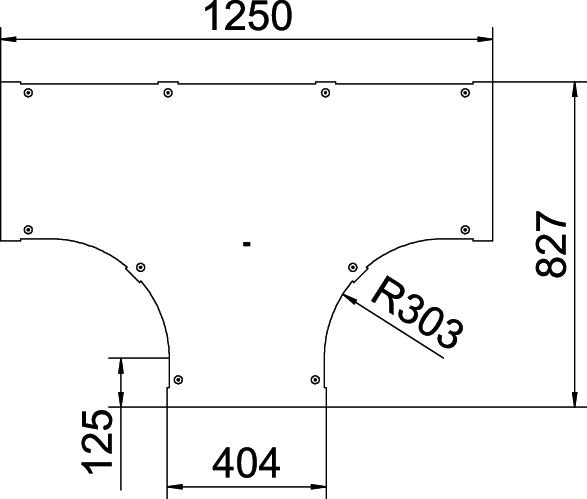

Scale drawing LTD 400 R3 FT / 6226124, 58.19 kB, jpg
