Cover for tee FS

Item no. 6226100 | EAN 4012196535422

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with turn buckles for covering T pieces with welded rungs.

Technical data

Technical data

Dimension	B200
Dimension B	200 mm
Fastening type	Sash lock
Material	Steel
Material thickness	1 mm
Plate thickness	1 mm

Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Surface	Strip galvanized
Wide-span version	no
Width	200 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LTD 200 R3 FS	200 mm	1 mm	6226100	piece	1 piece
LTD 300 R3 FS	300 mm	1 mm	6226102	piece	1 piece
LTD 400 R3 FS	400 mm	1 mm	6226104	piece	1 piece
LTD 500 R3 FS	500 mm	1.25 mm	6226106	piece	1 piece
LTD 600 R3 FS	600 mm	1.25 mm	6226108	piece	1 piece

Downloads

Data sheet LTD 200 R3 FS / 6226100 , 0.21MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LTD 200 R3 FS / 6226100 , 0.10MB , pdf

UK Declaration of Conformity LTD 200 R3 FS / 6226100 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

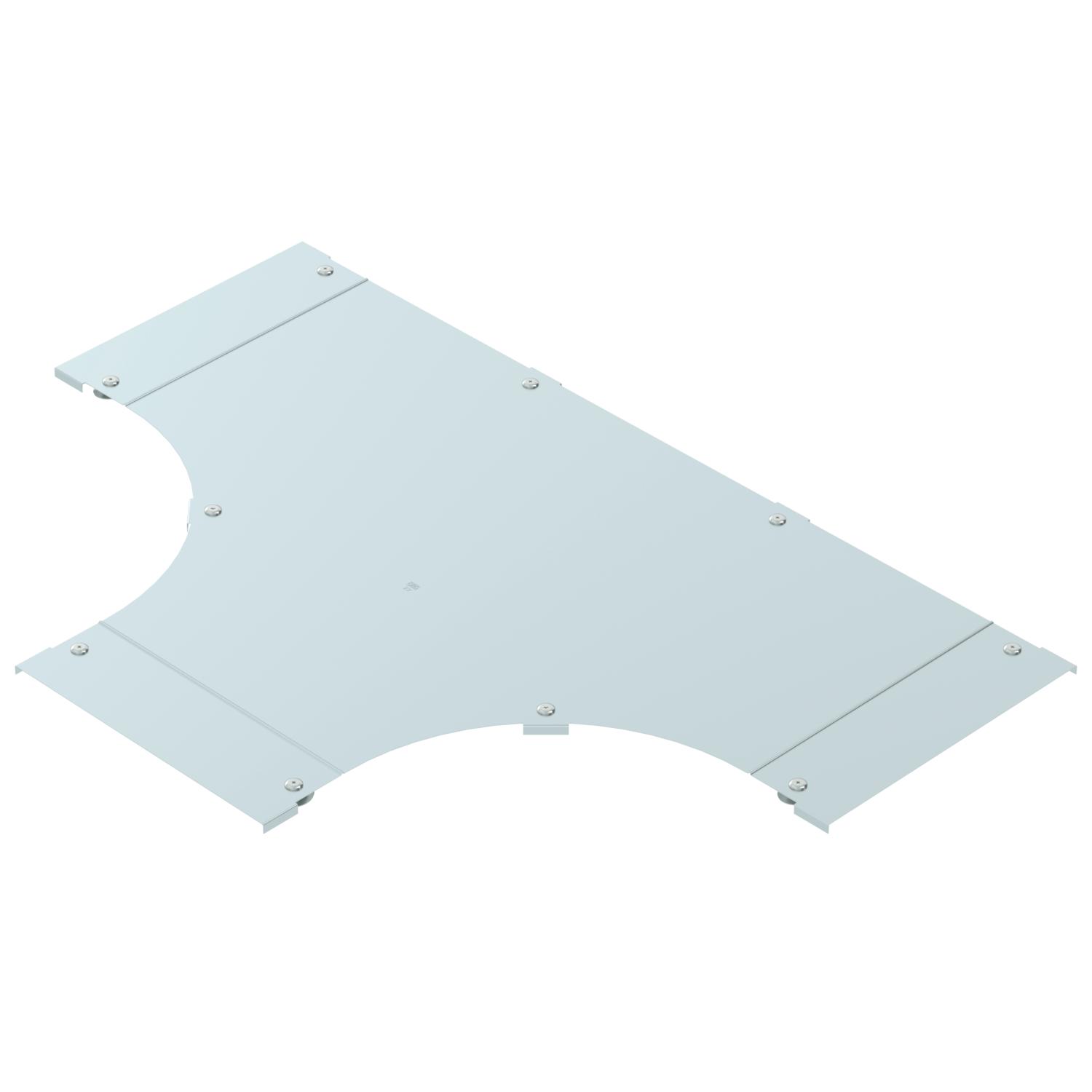

Product graphic LTD 200 R3 FS / 6226100, 29.63 kB, jpg

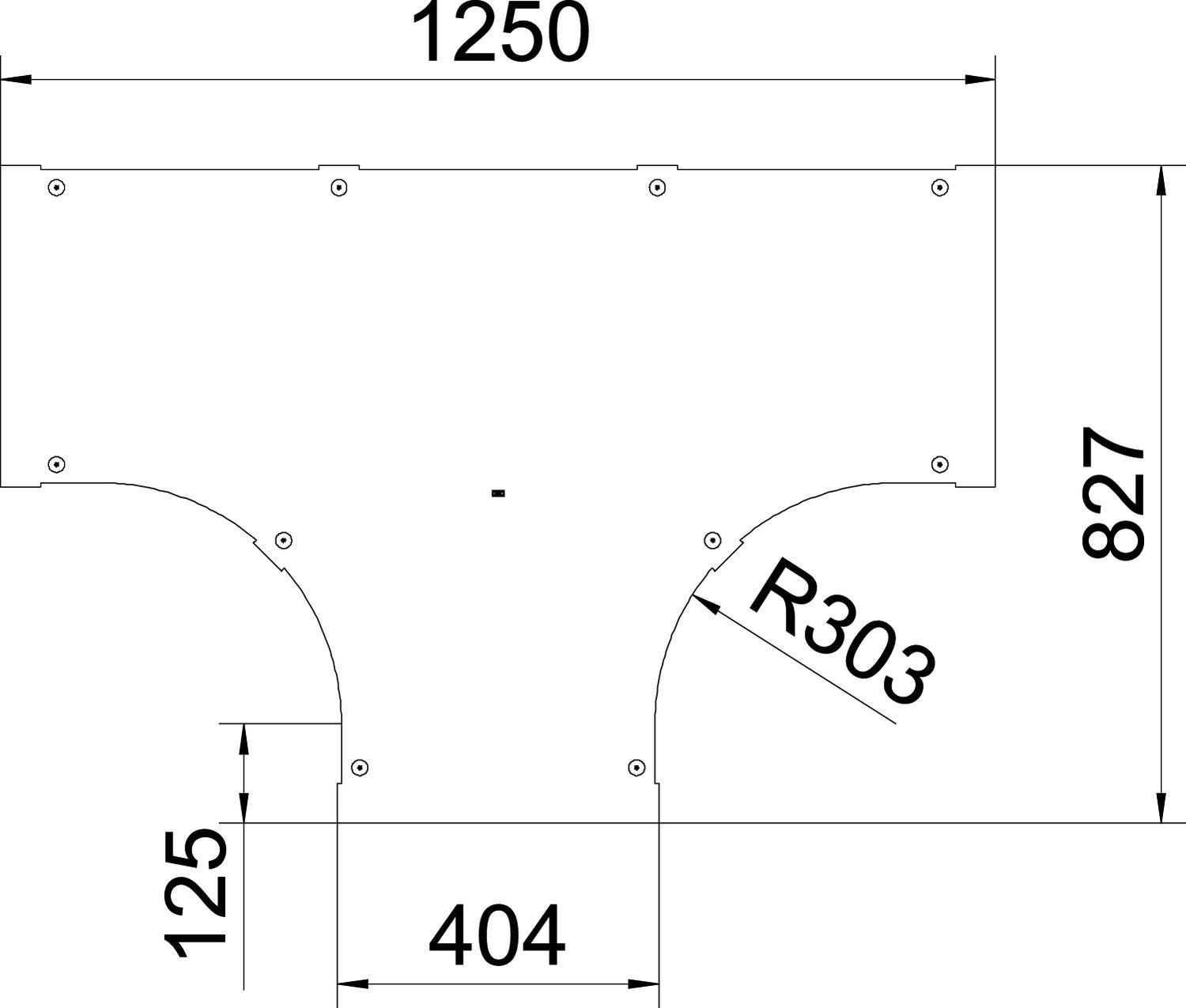

Scale drawing LTD 200 R3 FS / 6226100, 58.19 kB, jpg

LTD 200 R3 FS / 6226100
