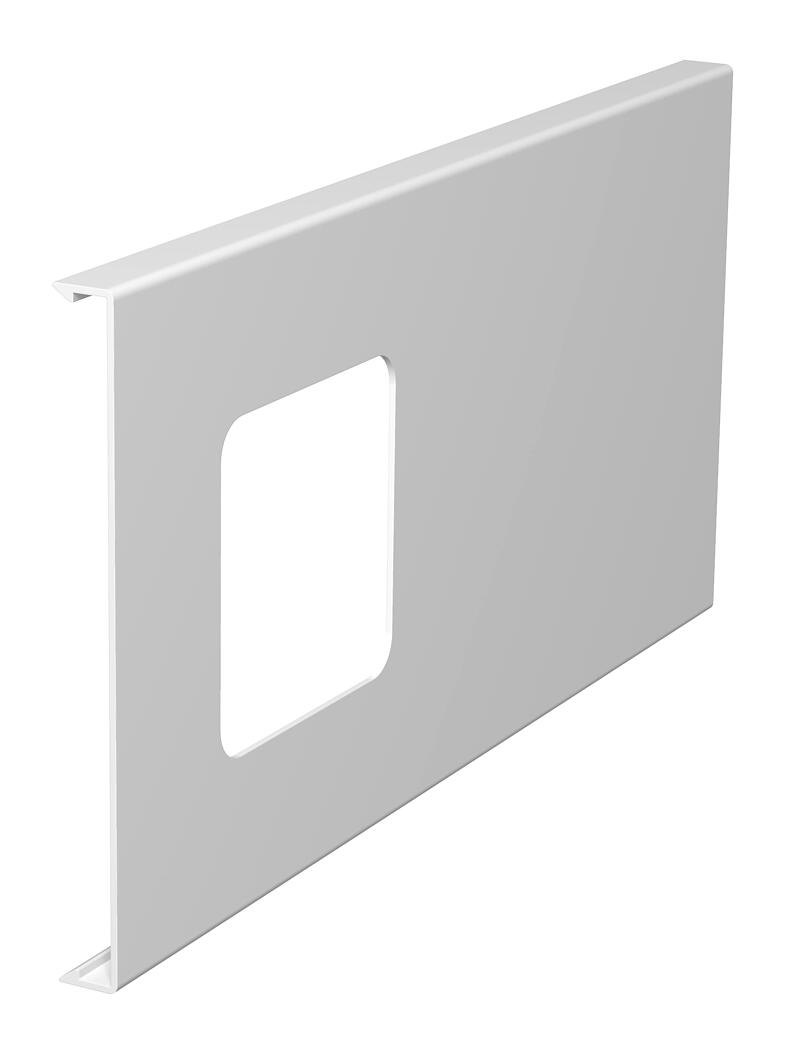

Cover for single accessory mounting box for WDK trunking, trunking height 150 mm

Item no. / Types	6194052 / D2-1 150RW

Length	300 mm

Colour	Pure white; RAL 9010

Product description

Product description

Cover section, single, for device installation in WDK trunking in conjunction with the device installation socket, type 2390.

Technical data

Antibacterial treatment	no
Colour	Pure white; RAL 9010

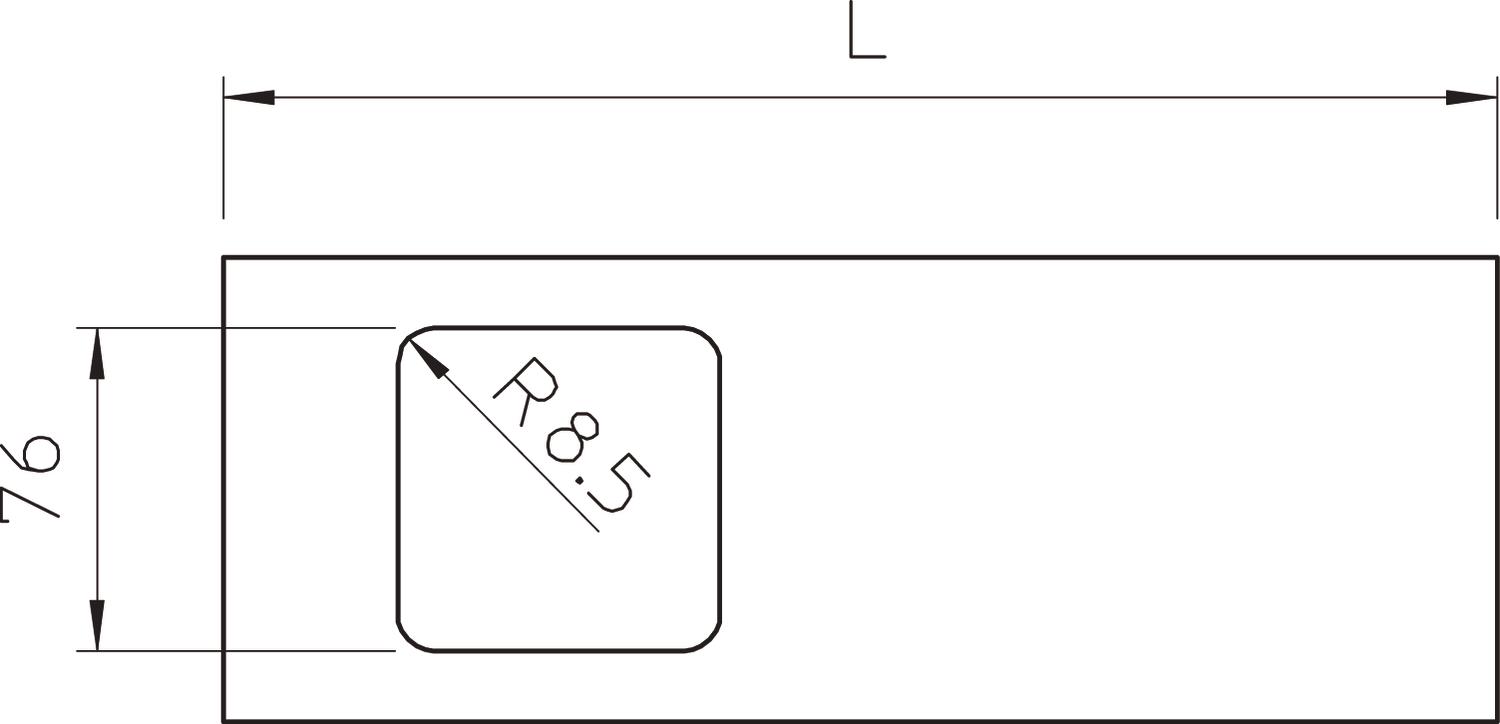

Dimension	150x300mm
Halogen-free	no
Height	15 mm
Length	300 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Width	150 mm

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
D2-1 150RW	300 mm	Pure white; RAL 9010	6194052	piece	1 piece
