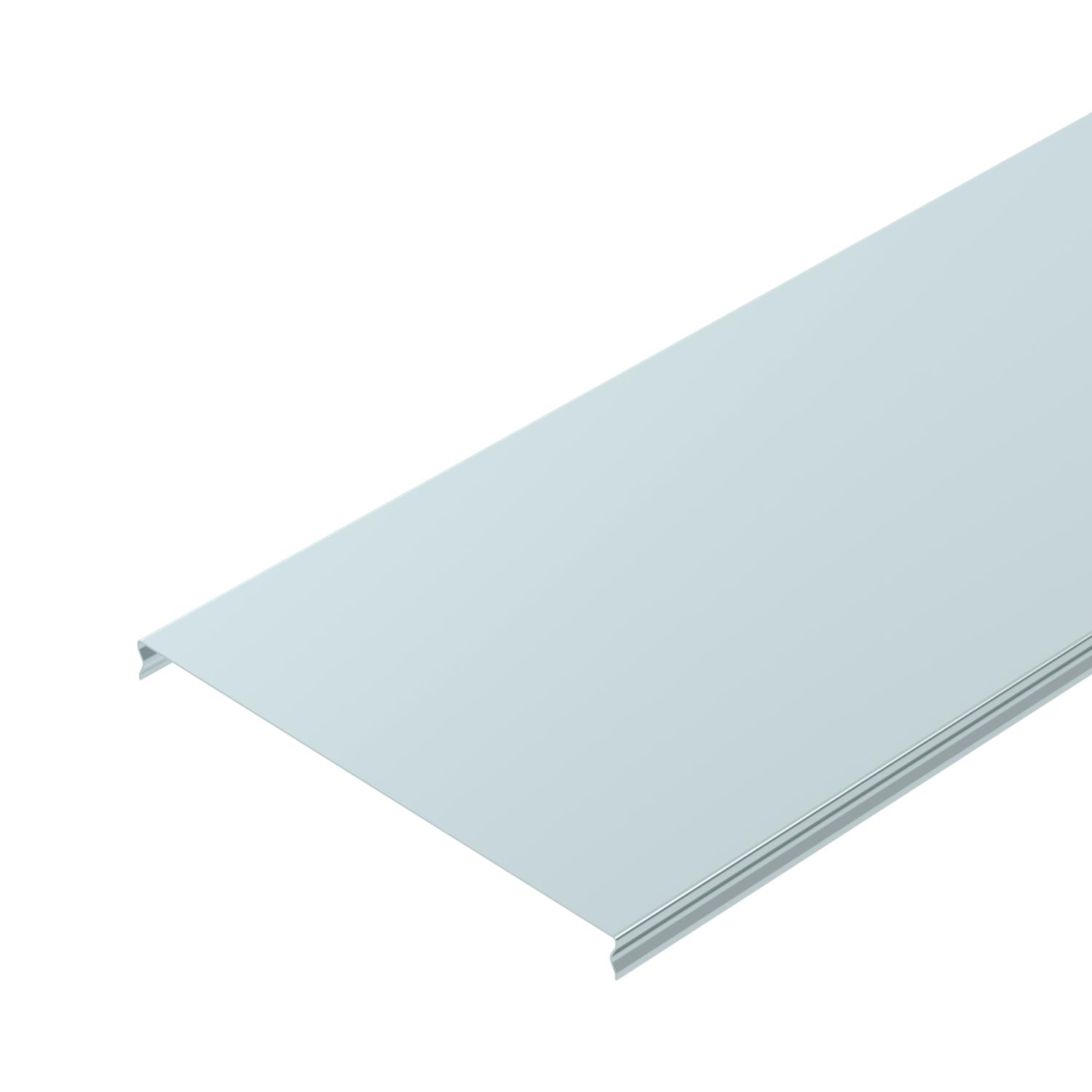

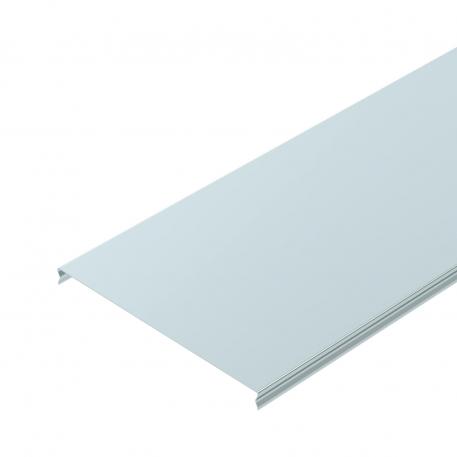

Cover for mesh cable tray, latchable FS
Item no. 6001846 | EAN 4012196687145
- Product description
-
Product description
Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for interior areas without specific requirements.
-
- Technical data
-
Technical data

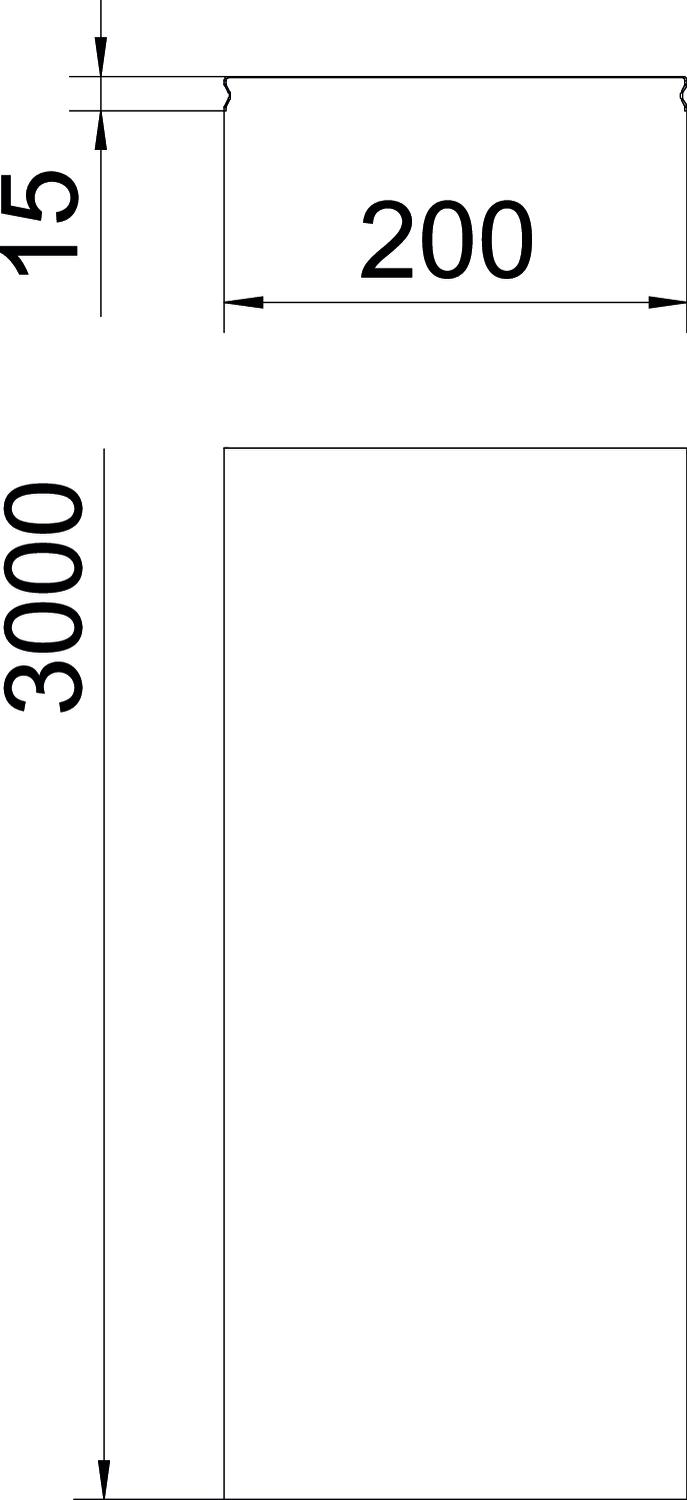

Dimension 200x3000 Dimension B 198 mm Fastening type Locking Height 15 mm Height 0,59 in Length 3000 mm Maintain electrical functions no Material Steel Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Strip galvanized Width 7,8 in Width 198 mm - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Cover clamp, universal A2
DKU A2 6065600 20 piece - Downloads
-
Data sheet DGRR 200 FS / 6001846 , 0.15MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DGRR 200 FS / 6001846 , 0.10MB , pdfREACH Declaration of conformity DGRR 200 FS / 6001846 , 0.12MB , pdfRoHS Declaration of conformity DGRR 200 FS / 6001846 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
