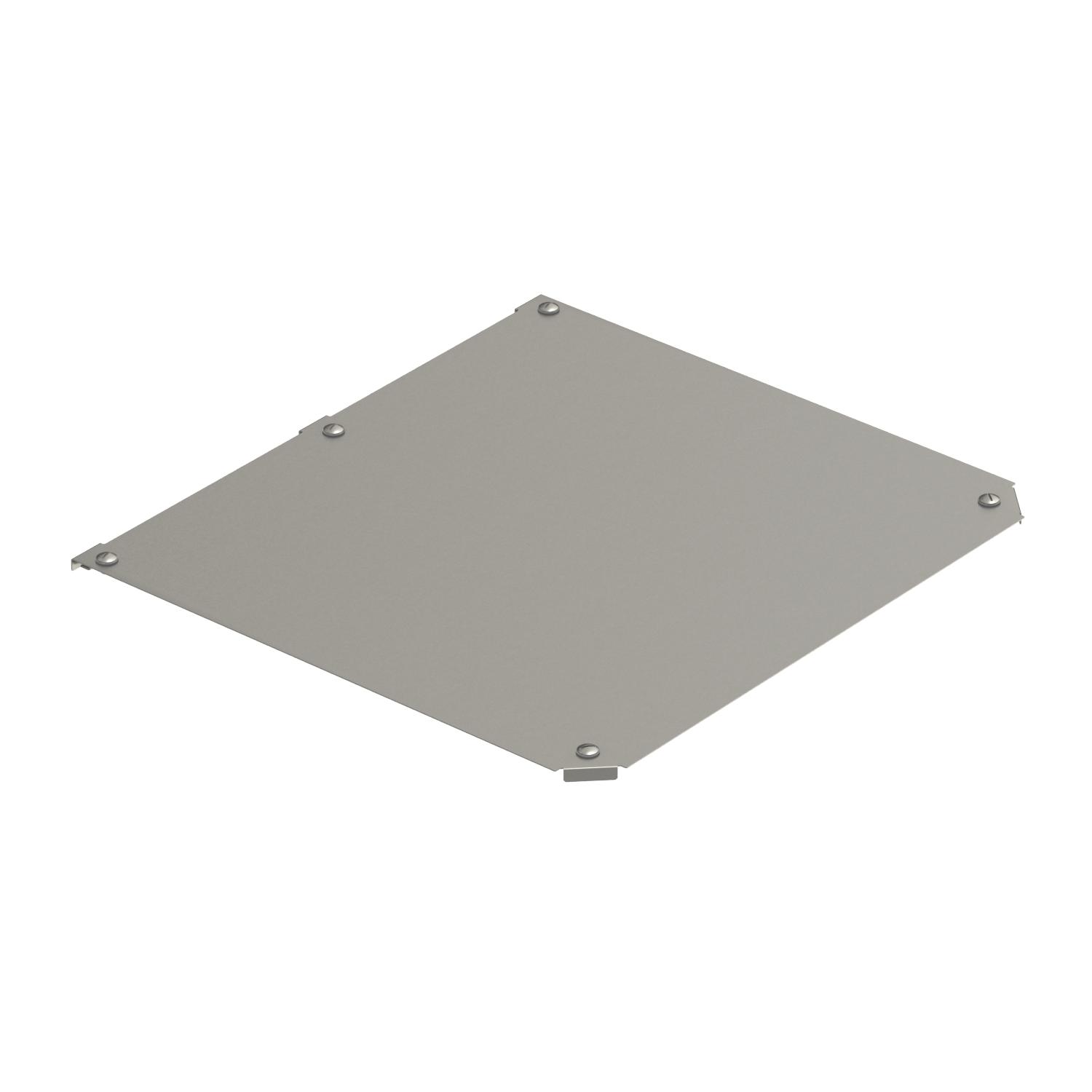

Cover for Magic tee A4 600 | 1.25

morepic-1

morepic-2

Cover for Magic tee A4

Item no. 7138892 | EAN 4012195931249

Item no. / Types	7138892 / DFTM 600 A4

Width	600 mm

Plate thickness	1.25 mm

Product description

Product description

Cover for tee with pre-mounted turn buckles.

Technical data

Technical data

Dimension	B=600mm
Fastening type	Sash lock
Material	Stainless steel
Material thickness	1,25 mm
Plate thickness	1,25 mm

Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Surface	Bright, treated

Dimensions

Dimension B	600 mm

Width	600 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
DFTM 600 A4	600 mm	1.25 mm	7138892	piece	1 piece

Downloads

Data sheet DFTM 600 A4 / 7138892 , 0.24MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity DFTM 600 A4 / 7138892 , 0.17MB , pdf

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

Product graphic DFTM 600 A4 / 7138892, 30.62 kB, jpg

Scale drawing DFTM 600 A4 / 7138892, 46.75 kB, jpg

DFTM 600 A4 / 7138892

7138892_KSTP1.stp, 628.40 kB
