Note: This article is discontinued.

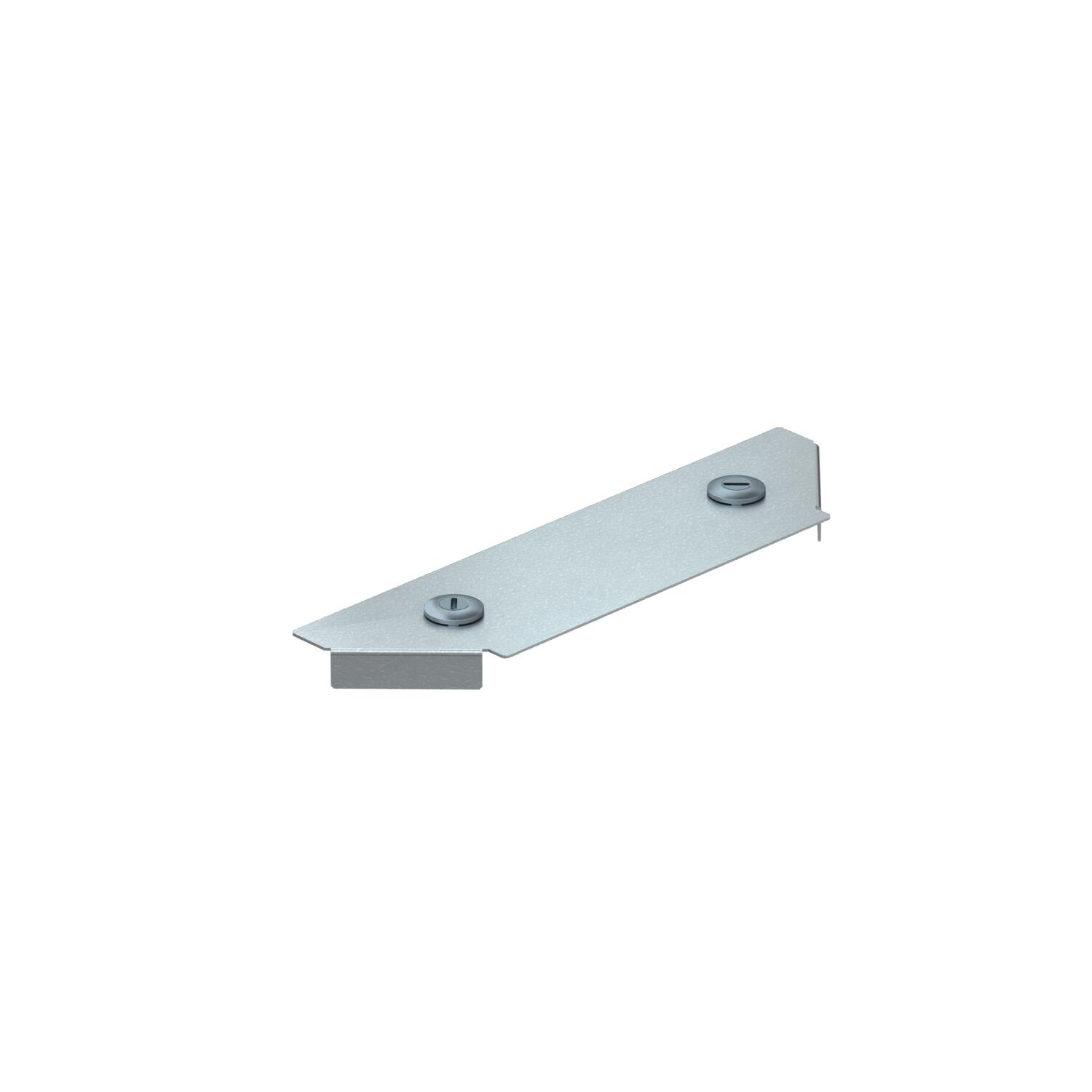

Cover for Magic add-on tee DD 150 | 1.25

morepic-1

morepic-2

Cover for Magic add-on tee DD

Item no. 7138682 | EAN 4012195930662

Item no. / Types

Width

Plate thickness	1.25 mm

Product description

Product description

Cover for add-on tee with pre-mounted turn buckles.

Technical data

Technical data

Dimension	B=150mm
Dimension B	150 mm
Fastening type	Sash lock
Material	Steel
Material thickness	1,25 mm
Plate thickness	1,25 mm
Rustproof steel, pickled	no

Suitable for cable ladder	yes
Suitable for cable tray	yes
Surface	Strip galvanised zinc/aluminium, Double Dip
Wide-span version	no
Width	6 in
Width	150 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
DFAAM 100 DD	100 mm	1.25 mm	7138680	piece	1 piece
DFAAM 150 DD	150 mm	1.25 mm	7138682	piece	1 piece
DFAAM 200 DD	200 mm	1.25 mm	7138684	piece	1 piece
DFAAM 400 DD	400 mm	1.25 mm	7138688	piece	1 piece
DFAAM 500 DD	500 mm	1.25 mm	7138690	piece	1 piece
DFAAM 600 DD	600 mm	1.25 mm	7138692	piece	1 piece

Downloads

Data sheet DFAAM 150 DD / 7138682 , 0.14MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity DFAAM 150 DD / 7138682 , 0.10MB , pdf

REACH Declaration of conformity DFAAM 150 DD / 7138682 , 0.27MB , pdf

Download

RoHS Declaration of conformity DFAAM 150 DD / 7138682 , 0.28MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic DFAAM 150 DD / 7138682, 30.52 kB, jpg

Scale drawing DFAAM 150 DD / 7138682, 29.92 kB, jpg

DFAAM 150 DD / 7138682

7138682_KSTP1.stp, 487.16 kB
