Note: This article is discontinued.

Cover for Magic add-on tee A4 400 | 1.25

morepic-1

morepic-2

Cover for Magic add-on tee A4

Item no. 7138748 | EAN 4012195930853

Item no. / Types

Width

Plate thickness	1.25 mm

Product description

Product description

Cover for add-on tee with pre-mounted turn buckles.

Technical data

Technical data

Dimension	B=400mm
Dimension B	400 mm
Fastening type	Sash lock
Material	Stainless steel
Material thickness	1,25 mm
Plate thickness	1,25 mm

Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Surface	Bright, treated
Wide-span version	no
Width	400 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
DFAAM 200 A4	200 mm	1.25 mm	7138744	piece	1 piece
DFAAM 300 A4	300 mm	1.25 mm	7138746	piece	1 piece
DFAAM 400 A4	400 mm	1.25 mm	7138748	piece	1 piece

Downloads

Data sheet DFAAM 400 A4 / 7138748 , 0.17MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity DFAAM 400 A4 / 7138748 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

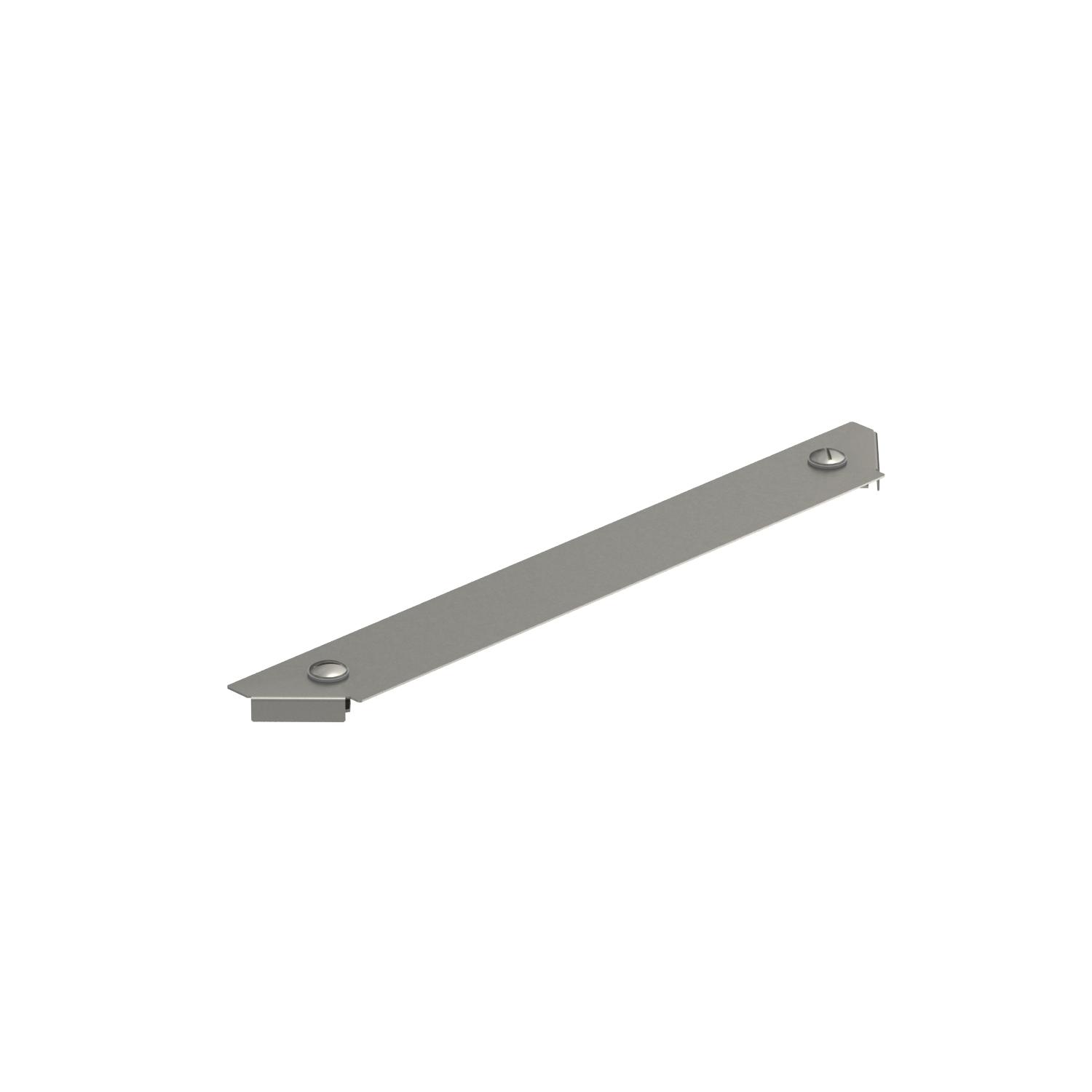

Product graphic DFAAM 400 A4 / 7138748, 24.46 kB, jpg

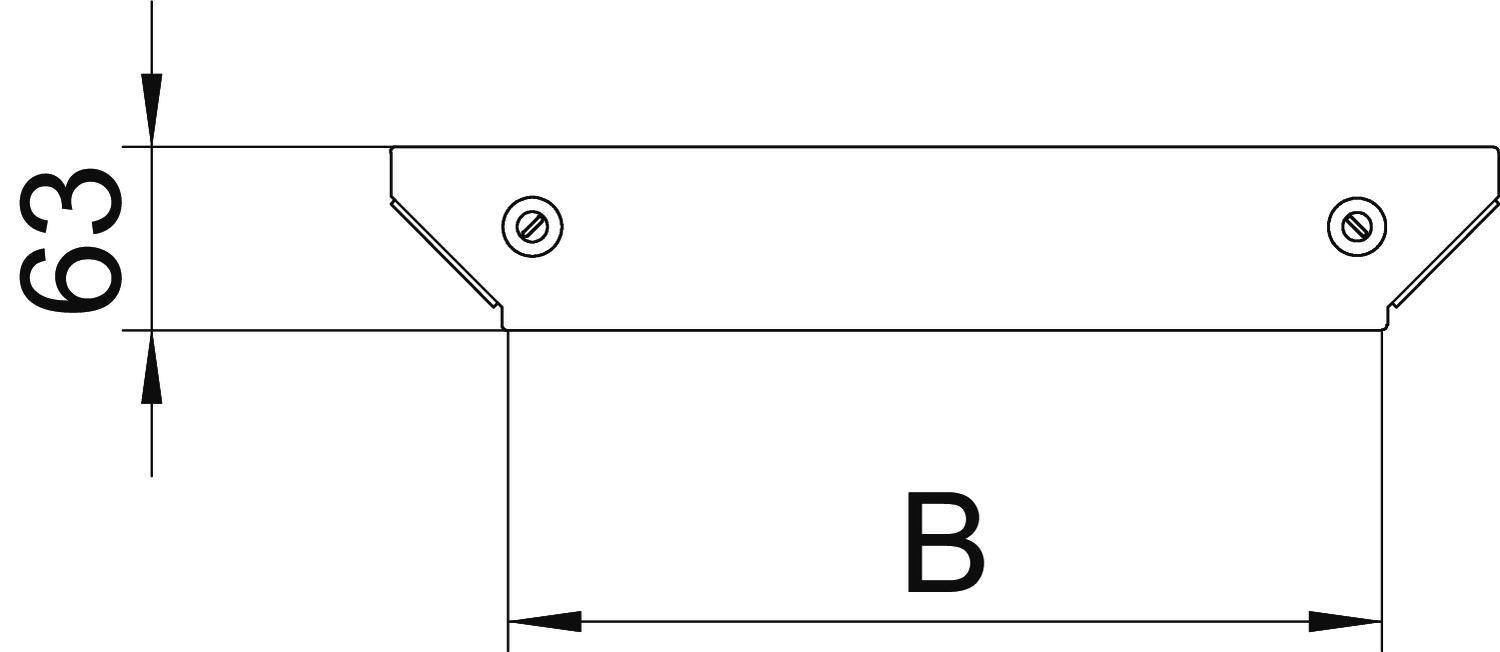

Scale drawing DFAAM 400 A4 / 7138748, 29.92 kB, jpg

DFAAM 400 A4 / 7138748

7138748_KSTP1.stp, 578.58 kB
