Note: This article is discontinued.

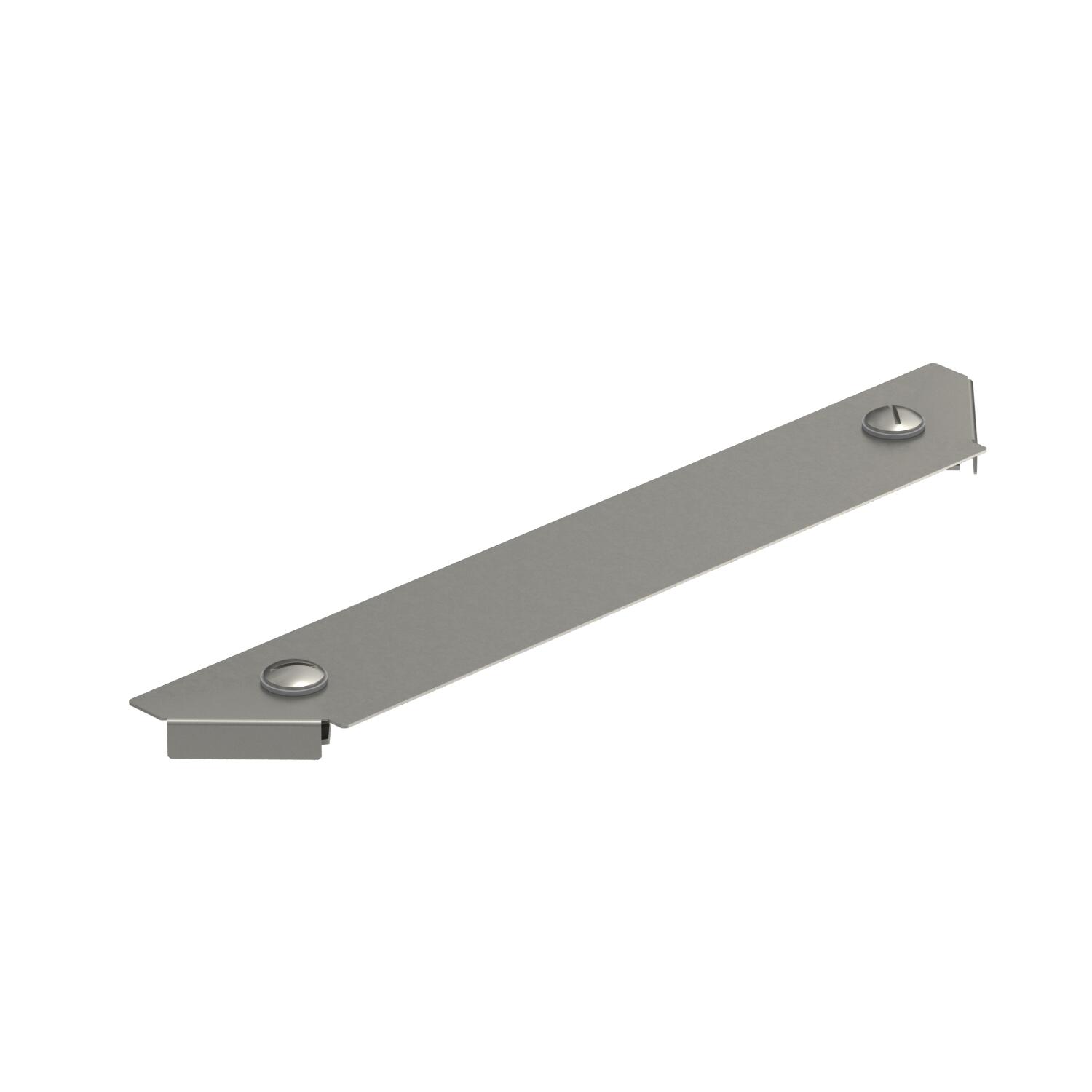

Cover for Magic add-on tee A2 300 | 1.25

morepic-1

morepic-2

Cover for Magic add-on tee A2

Item no. 7138726 | EAN 4012195930778

Item no. / Types

Width

Plate thickness	1.25 mm

Product description

Product description

Cover for add-on tee with pre-mounted turn buckles.

Technical data

Technical data

Dimension	B=300mm
Dimension B	300 mm
Fastening type	Sash lock
Material	Stainless steel
Material thickness	1,25 mm
Plate thickness	1,25 mm

Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Surface	Bright, treated
Wide-span version	no
Width	300 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
DFAAM 100 A2	100 mm	1.25 mm	7138720	piece	1 piece
DFAAM 300 A2	300 mm	1.25 mm	7138726	piece	1 piece
DFAAM 400 A2	400 mm	1.25 mm	7138728	piece	1 piece
DFAAM 500 A2	500 mm	1.25 mm	7138730	piece	1 piece
DFAAM 600 A2	600 mm	1.25 mm	7138732	piece	1 piece

Downloads

Data sheet DFAAM 300 A2 / 7138726 , 0.17MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity DFAAM 300 A2 / 7138726 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic DFAAM 300 A2 / 7138726, 29.27 kB, jpg

Scale drawing DFAAM 300 A2 / 7138726, 29.92 kB, jpg

DFAAM 300 A2 / 7138726

7138726_KSTP1.stp, 578.56 kB
