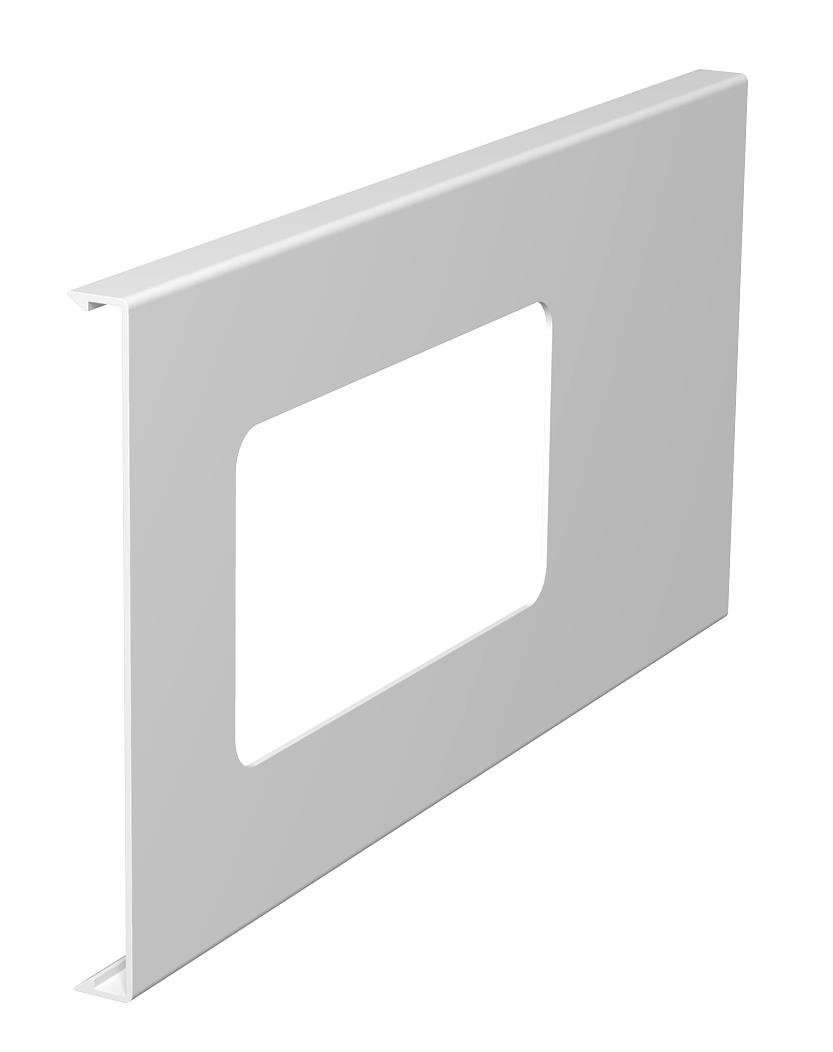

Cover for double accessory mounting box for WDK trunking, trunking height 150 mm

Item no. / Types

Length	300 mm

Colour

Product description

Product description

Cover section, double, for device installation in WDK trunking in conjunction with the device installation socket, type 2390.

Technical data

Antibacterial treatment	no
Colour	Pure white; RAL 9010
Dimension	150x300mm
Halogen-free	no
Height	15 mm
Length	300 mm
Maintain electrical functions	no

Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Width	150 mm

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
D2-2 150CW	300 mm	Cream; RAL 9001	6169368	piece	10 piece
D2-2 150RW	300 mm	Pure white; RAL 9010	6194125	piece	1 piece

Downloads

Data sheet D2-2 150RW / 6194125 , 0.15MB , pdf

Catalogue Cable routing systems , 17.62MB , pdf

EU declaration of conformity D2-2 150RW / 6194125 , 0.13MB , pdf

Mounting instructions Leitungsführungskanal WDK , 6.19MB , pdf

Safety data sheet PVC_Material data , 0.02MB , pdf

No invitation to tender text is available for this product.
