Cover for DD mounting/branch piece 200 | 1.5
morepic-1 morepic-2 video-1 video-2

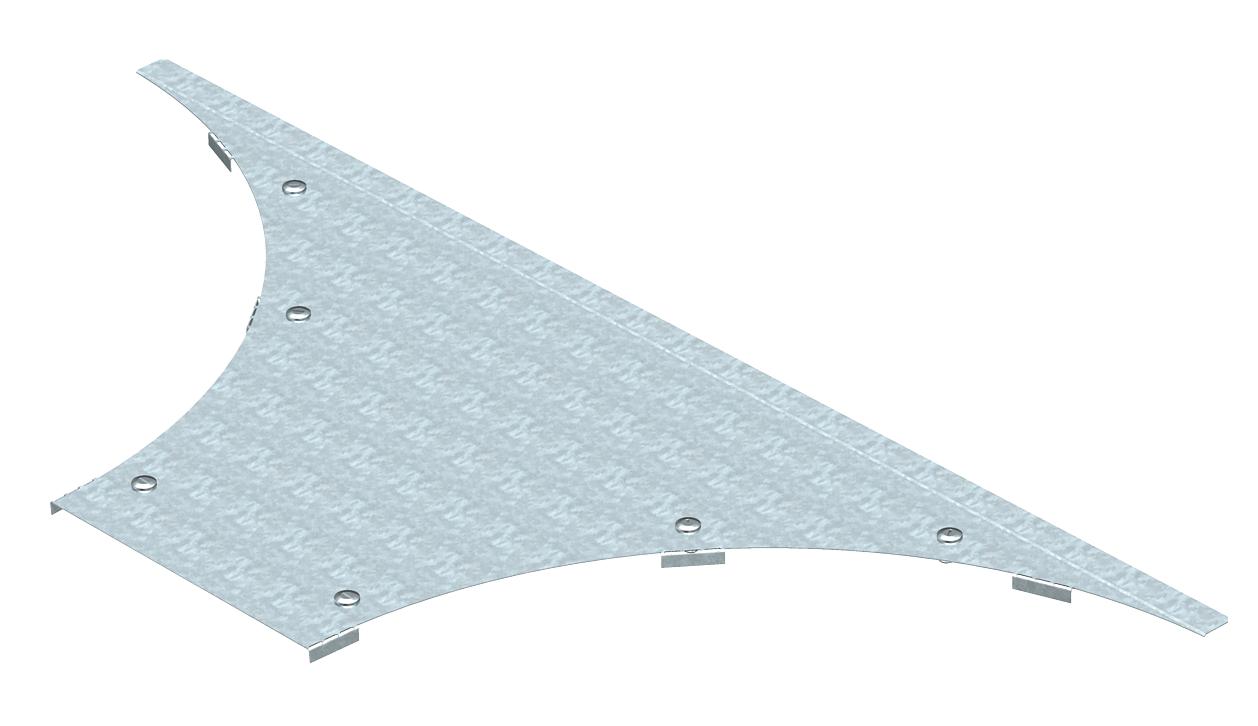

Cover for DD mounting/branch piece

Item no. 6231922 | EAN 4012196080717

1.5 mm
Product description

Product description

Cover for wide span add-on tee with pre-mounted turn buckles.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Wide span cable tray, side height, 110 mm
  • Wide span cable tray, side height, 160 mm
Technical data

Technical data

Dimension B200mm
Fastening type Sash lock
Material Steel
Material thickness 1,5 mm
Number of turn buckles 6 St.
Plate thickness 1,5 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray yes
Surface Strip galvanised zinc/aluminium, Double Dip
Wide-span version yes

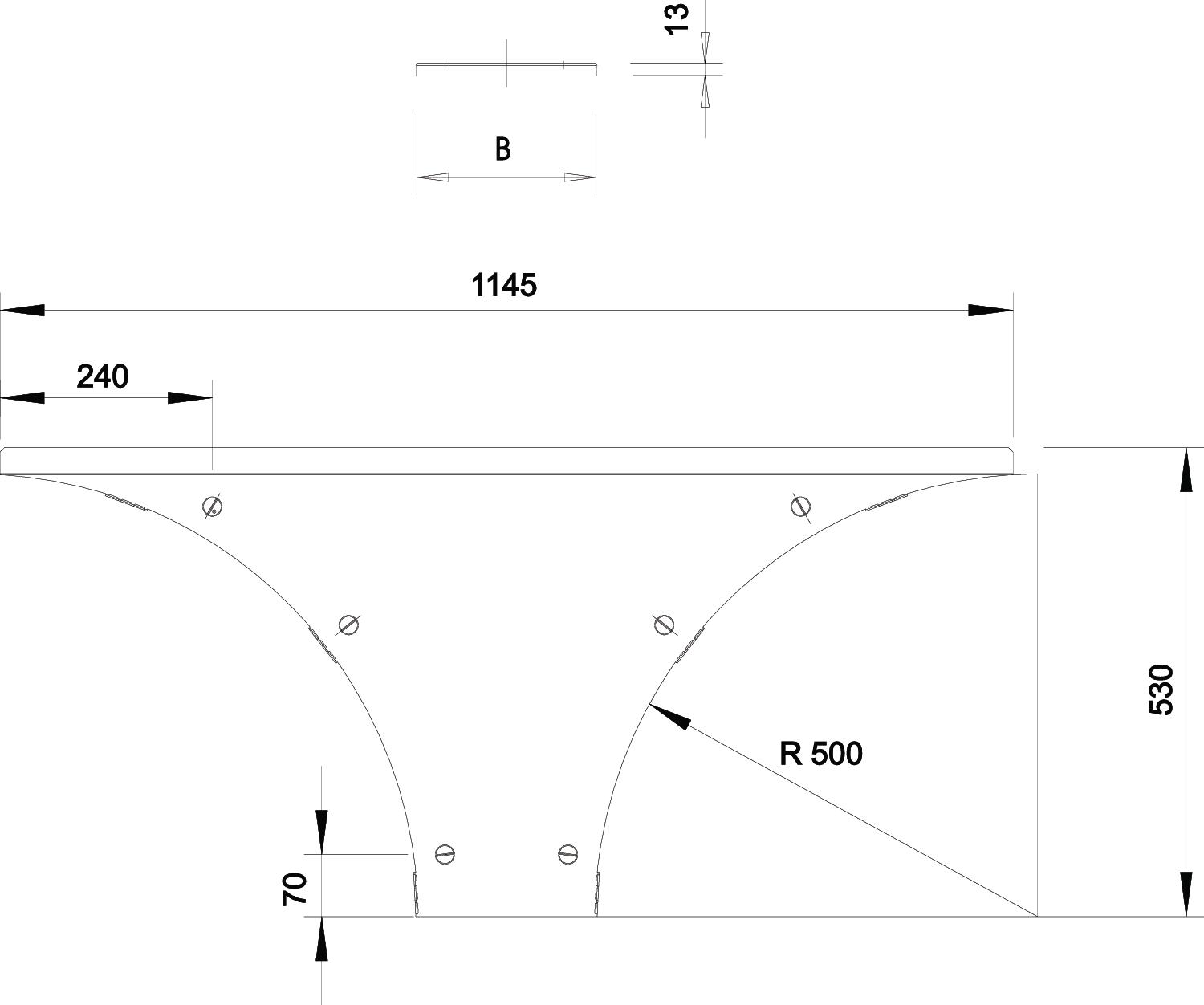

Dimensions

Dimension B 200 mm
Dimension H 15 mm
Dimension R 500 mm
Height 110 mm
Width 200 mm
All types

All types

Types Width Plate thickness Item no. Quantity SSU
WAAD 200 DD 200 mm 1.5 mm 6231922
1 piece
WAAD 300 DD 300 mm 1.5 mm 6231926
1 piece
WAAD 400 DD 400 mm 1.5 mm 6231930
1 piece
WAAD 500 DD 500 mm 1.5 mm 6231934
1 piece
WAAD 600 DD 600 mm 1.5 mm 6231938
1 piece
