Cover for center suspension threaded rod FS 3000 | 103 | 1

morepic-1

morepic-2

Cover for center suspension threaded rod FS

Item no. 6080979 | EAN 4012196407415

Item no. / Types	6080979 / AZDG 100 FS

Length	3000 mm

Width	103 mm

Plate thickness	1 mm

Product description

Product description

Perforated cover, for threaded rod mounting, for AZ small duct.

To fasten the cover, the cover clamp DKU is required.

Technical data

Technical data

Antibacterial treatment	no
Colour	zinc
Dimension	103x3000
Dimension B	103 mm
Dimension H	10 mm
Fastening type	Cover clamp
Height	10 mm
Length	3000 mm
Maintain electrical functions	no

Material	Steel
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanized
Width	103 mm

All types

All types

Types	Length	Width	Plate thickness	Item no.	Quantity	SSU
AZDG 100 FS	3000 mm	103 mm	1 mm	6080979	m	3 m

Downloads

Data sheet AZDG 100 FS / 6080979 , 0.15MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity AZDG 100 FS / 6080979 , 0.13MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

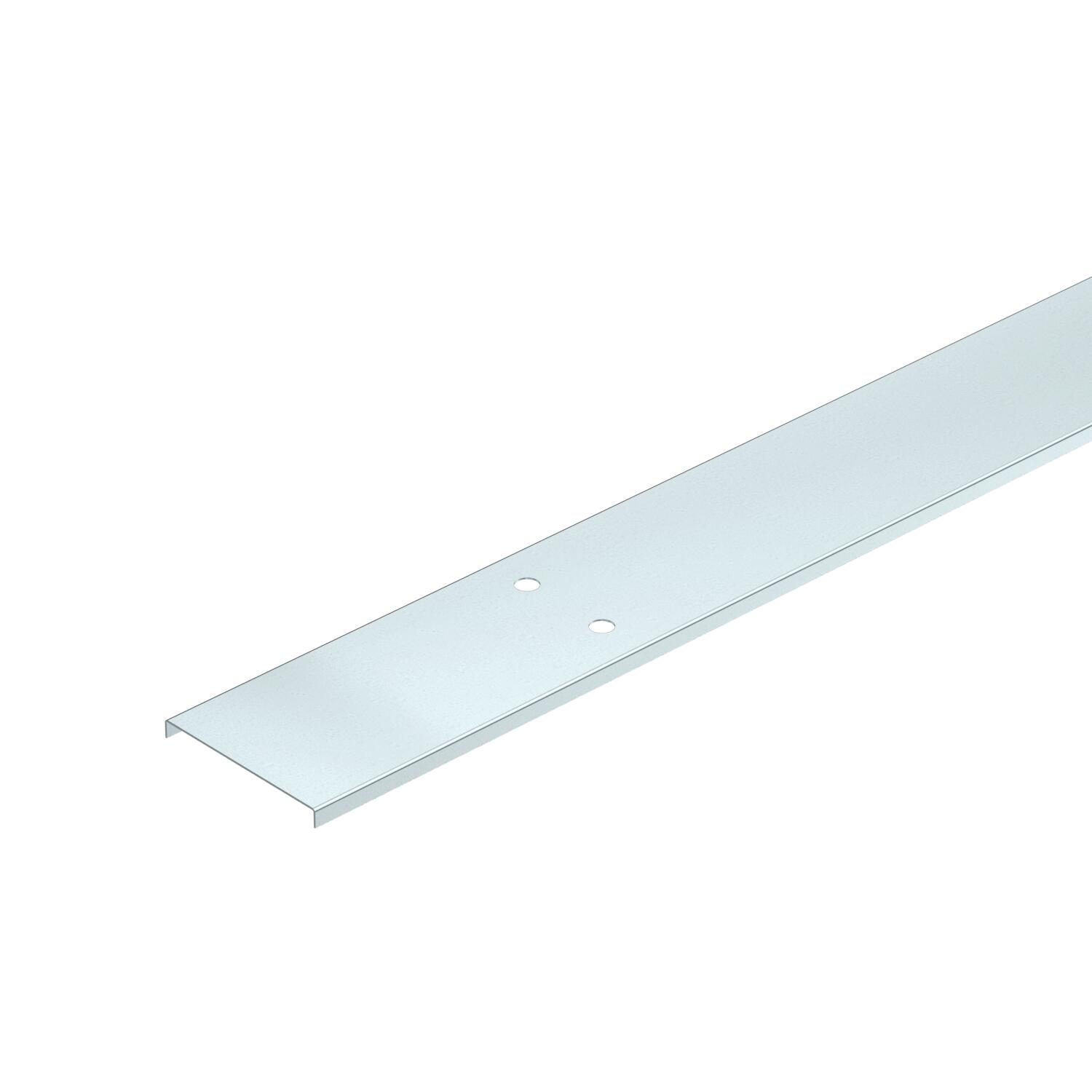

Product graphic AZDG 100 FS / 6080979, 37.29 kB, jpg

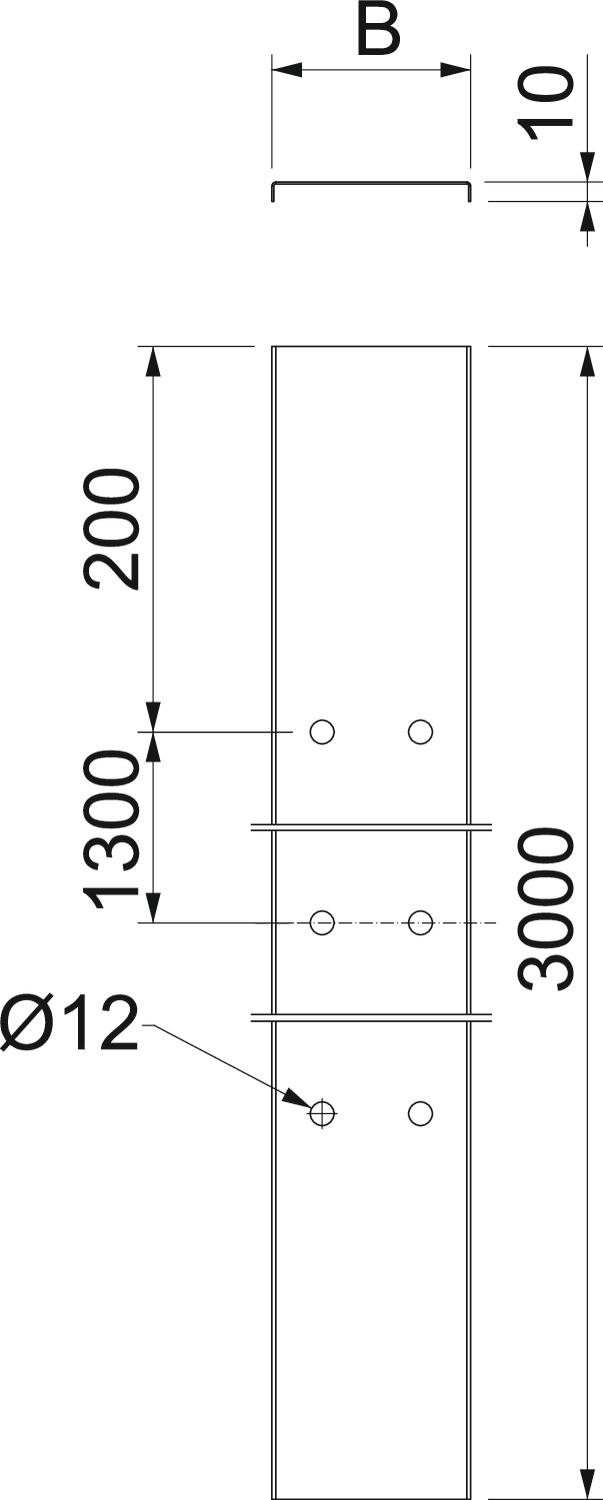

Scale drawing AZDG 100 FS / 6080979, 39.50 kB, jpg

AZDG 100 FS / 6080979

6080979_KSTP1.stp, 84.32 kB
