Cover for add-on tee FT

Item no. / Types

Width

Plate thickness

Product description

Product description

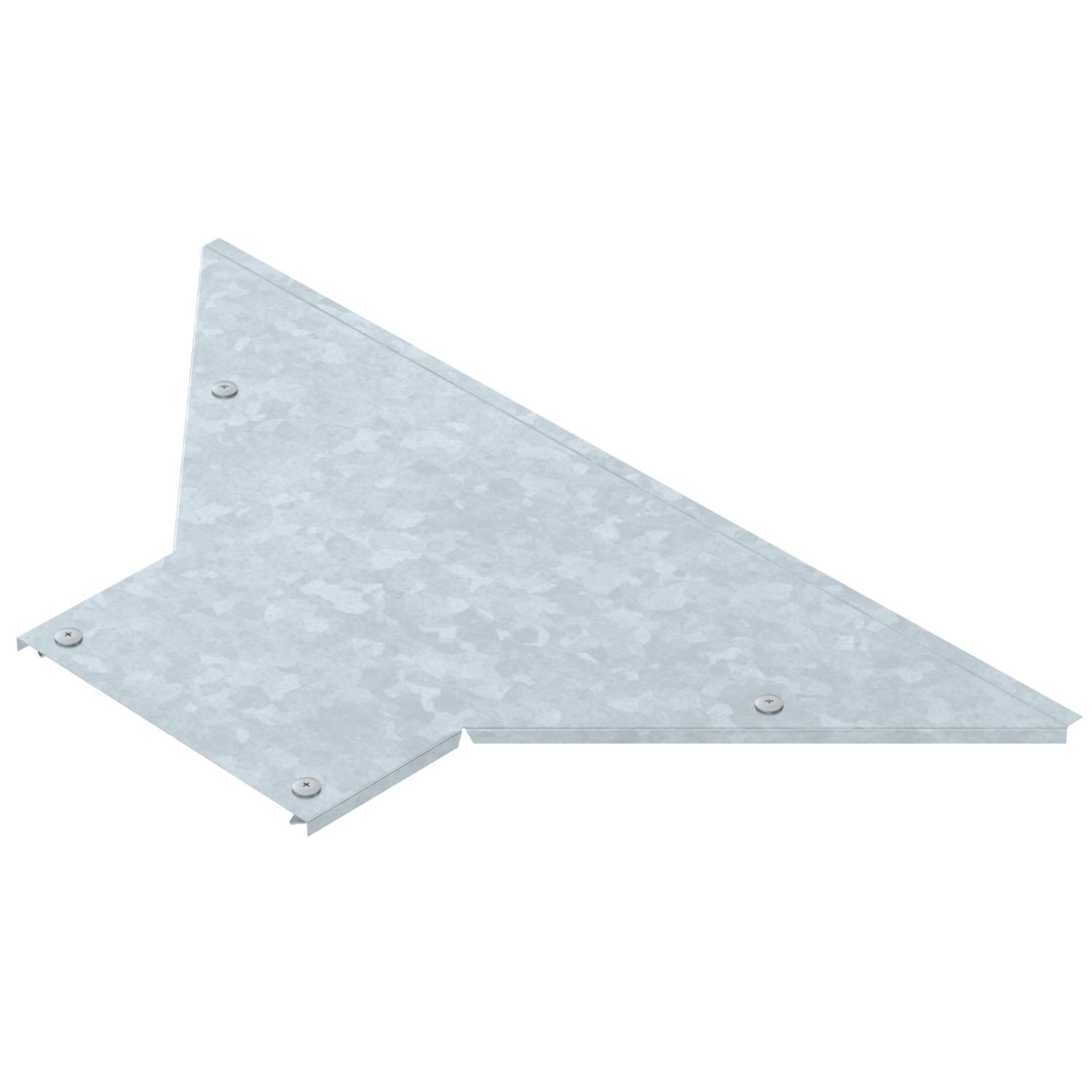

Cover with turn buckles for covering add-on tee with welded rungs.

Technical data

Dimension B	300 mm

Width	300 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LAAD 200 R3 FT	200 mm	1 mm	6226330	piece	1 piece
LAAD 300 R3 FT	300 mm	1 mm	6226332	piece	1 piece
LAAD 400 R3 FT	400 mm	1 mm	6226334	piece	1 piece
LAAD 450 R3 FT	450 mm	1.25 mm	6226336	piece	1 piece
LAAD 500 R3 FT	500 mm	1.25 mm	6226338	piece	1 piece
LAAD 600 R3 FT	600 mm	1.25 mm	6226340	piece	1 piece
LAAD 750 R3 FT	750 mm	1.25 mm	6226342	piece	1 piece
LAAD 800 R3 FT	800 mm	1.25 mm	6226344	piece	1 piece
LAAD 900 R3 FT	900 mm	1.25 mm	6226346	piece	1 piece
LAAD 1000 R3 FT	1000 mm	1.25 mm	6226348	piece	1 piece
LAAD 1200 R3 FT	1200 mm	1.25 mm	6226352	piece	1 piece
