Cover for add-on tee FS

Item no. 6226314 | EAN 4012196536337

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with turn buckles for covering add-on tee with welded rungs.

Technical data

Technical data

Colour	zinc
Dimension	B400
Dimension B	400 mm
Fastening type	Sash lock
Material	Steel
Material thickness	1 mm
Plate thickness	1 mm

Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Surface	Strip galvanized
Wide-span version	no
Width	400 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LAAD 200 R3 FS	200 mm	1 mm	6226310	piece	1 piece
LAAD 300 R3 FS	300 mm	1 mm	6226312	piece	1 piece
LAAD 400 R3 FS	400 mm	1 mm	6226314	piece	1 piece
LAAD 500 R3 FS	500 mm	1.25 mm	6226316	piece	1 piece
LAAD 600 R3 FS	600 mm	1.25 mm	6226318	piece	1 piece

Downloads

Data sheet LAAD 400 R3 FS / 6226314 , 0.18MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity LAAD 400 R3 FS / 6226314 , 0.10MB , pdf

UK Declaration of Conformity LAAD 400 R3 FS / 6226314 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

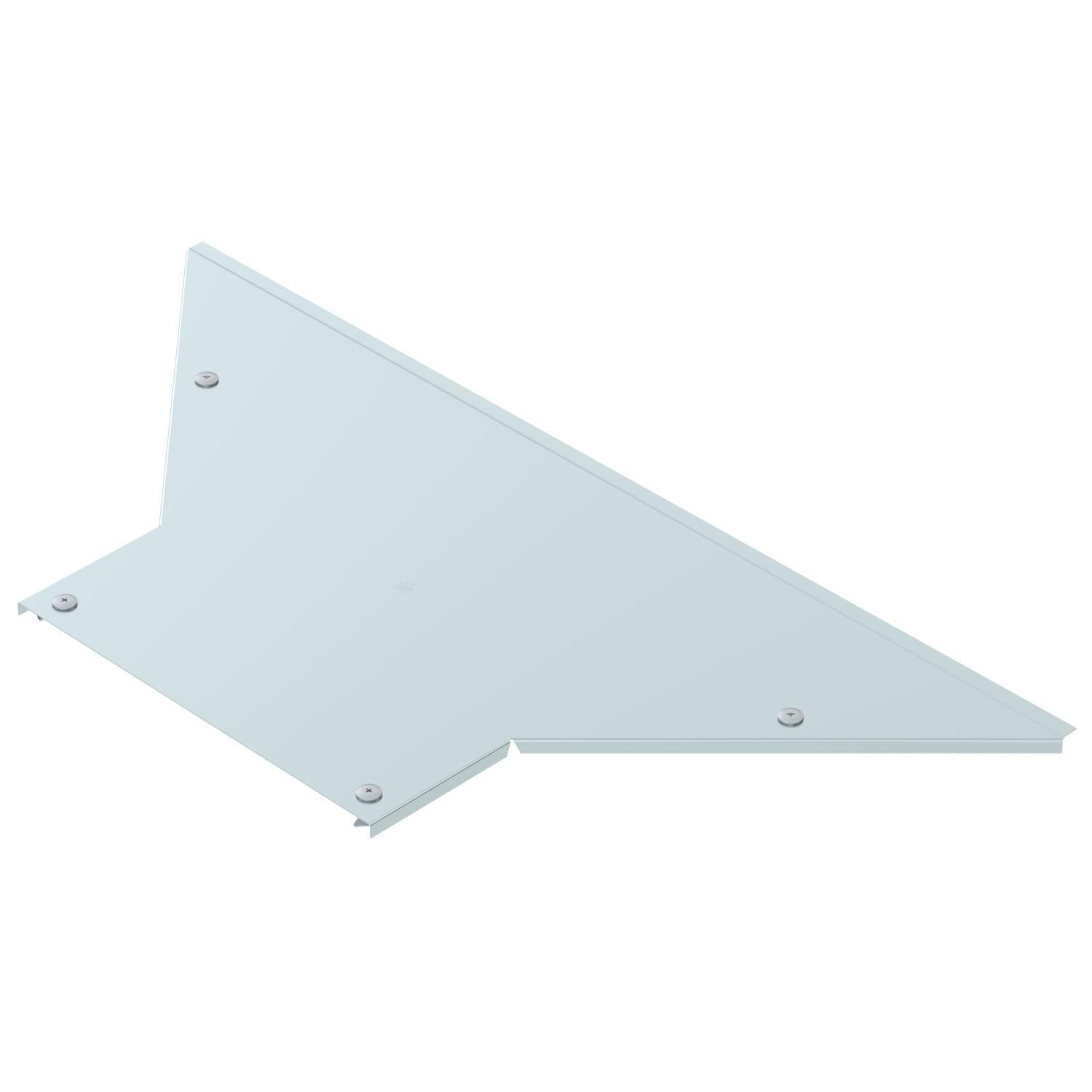

Product graphic LAAD 400 R3 FS / 6226314, 27.64 kB, jpg

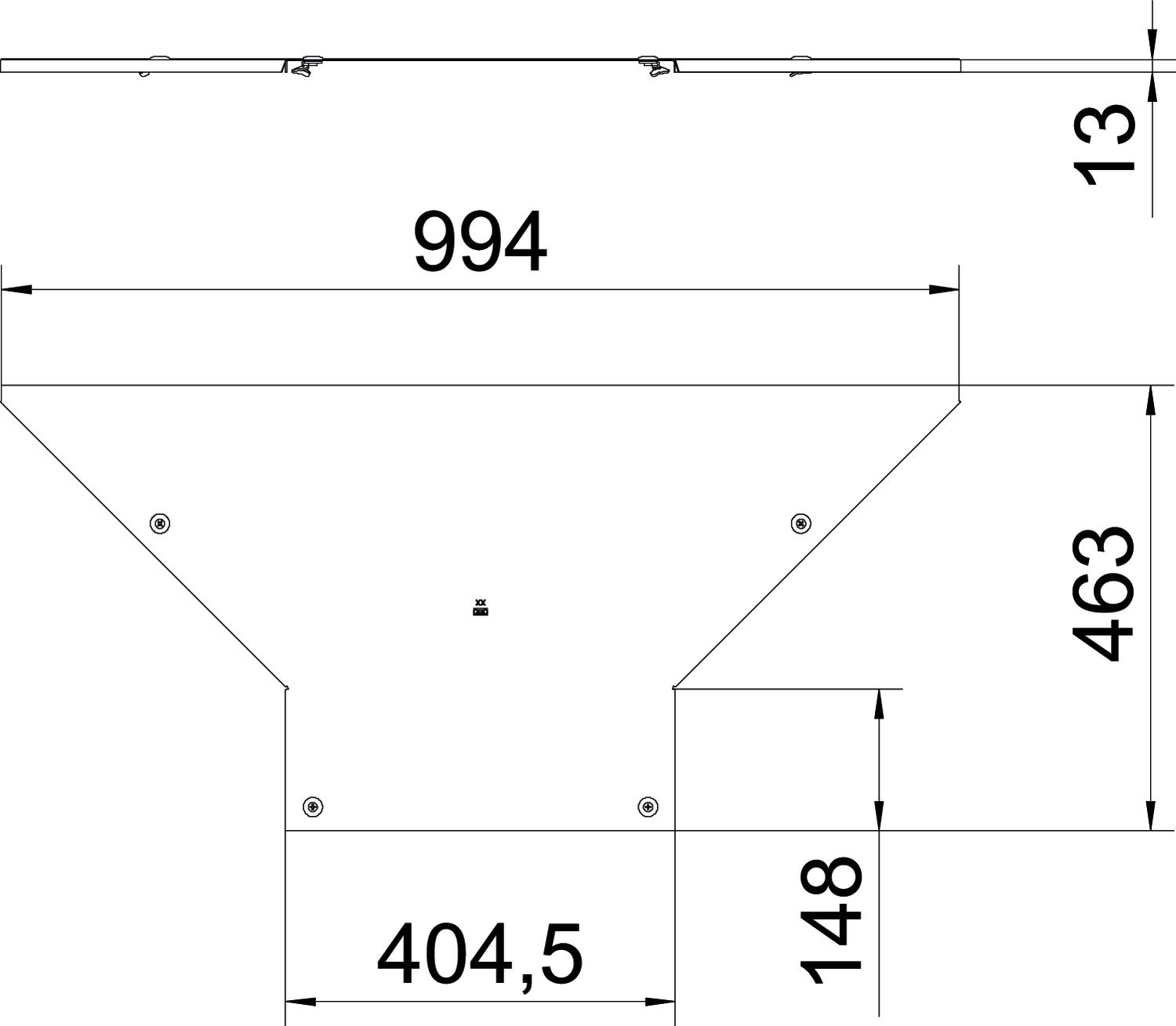

Scale drawing LAAD 400 R3 FS / 6226314, 59.09 kB, jpg

LAAD 400 R3 FS / 6226314

6226314_KSTP1.stp, 390.20 kB
