Cover for 90° vertical bend, rising, A2 100 | 0.75
morepic-1 morepic-2 video-1

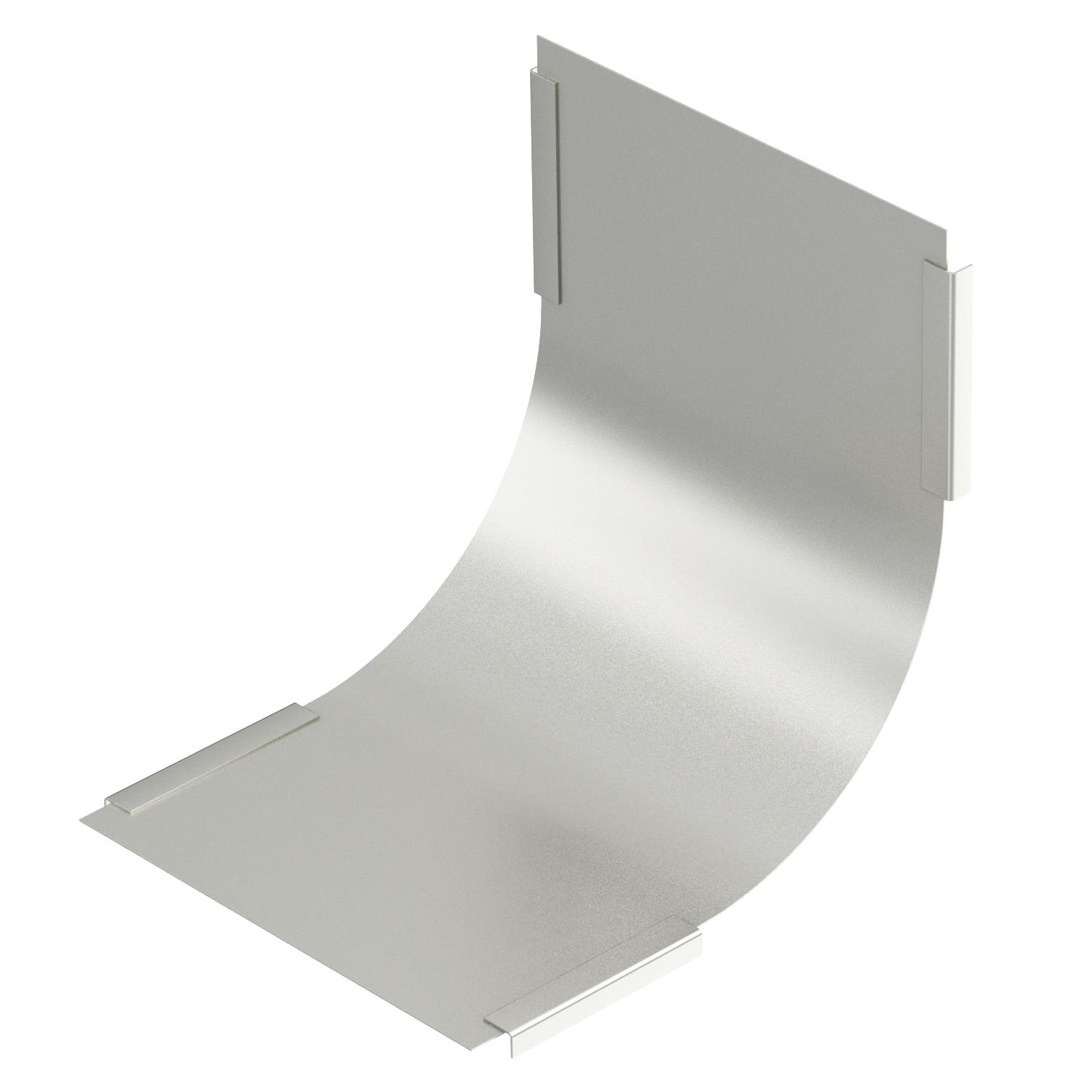

Cover for 90° vertical bend, rising, A2

Item no. 7130905 | EAN 4012195688600

0.75 mm
Product description

Product description

Cover for all rising vertical bends.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Bend (angle) 90°
Change of direction Vertical rising
Dimension B100mm
Fastening type Cover clamp
Hinged no
Maintain electrical functions no
Material Stainless steel
Plate thickness 0,03 in
Plate thickness 0,75 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Suitable for mesh cable tray no
Surface Bright, treated

Dimensions

Dimension B 100 mm
Height 60 mm
Width 4 in
Width 100 mm
All types

All types

Types Width Plate thickness Item no. Quantity SSU
DBV 100 S A2 100 mm 0.75 mm 7130905
1 piece
DBV 200 S A2 200 mm 0.75 mm 7130907
1 piece
DBV 300 S A2 300 mm 0.75 mm 7130909
1 piece
DBV 400 S A2 400 mm 0.75 mm 7130911
1 piece
DBV 500 S A2 500 mm 0.75 mm 7130913
1 piece
DBV 600 S A2 600 mm 0.75 mm 7130915
1 piece
