Bend (angle)	90°
Change of direction	Vertical, falling
Colour	zinc
Dimension	B100mm
Dimension B	100 mm
Fastening type	Sash lock
Height	60 mm
Hinged	no
Maintain electrical functions	no
Material	Steel

Plate thickness	0,75 mm
Plate thickness	0,03 in
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Width	4 in
Width	100 mm

Types	Width	Plate thickness	Item no.	Quantity	SSU
DBV 60 100 F DD	100 mm	0.75 mm	7131632	piece	1 piece
DBV 60 150 F DD	150 mm	0.75 mm	7131634	piece	1 piece
DBV 60 200 F DD	200 mm	0.75 mm	7131636	piece	1 piece
DBV 60 300 F DD	300 mm	0.75 mm	7131640	piece	1 piece
DBV 60 400 F DD	400 mm	0.75 mm	7131644	piece	1 piece
DBV 60 500 F DD	500 mm	0.75 mm	7131648	piece	1 piece
DBV 60 600 F DD	600 mm	0.75 mm	7131652	piece	1 piece

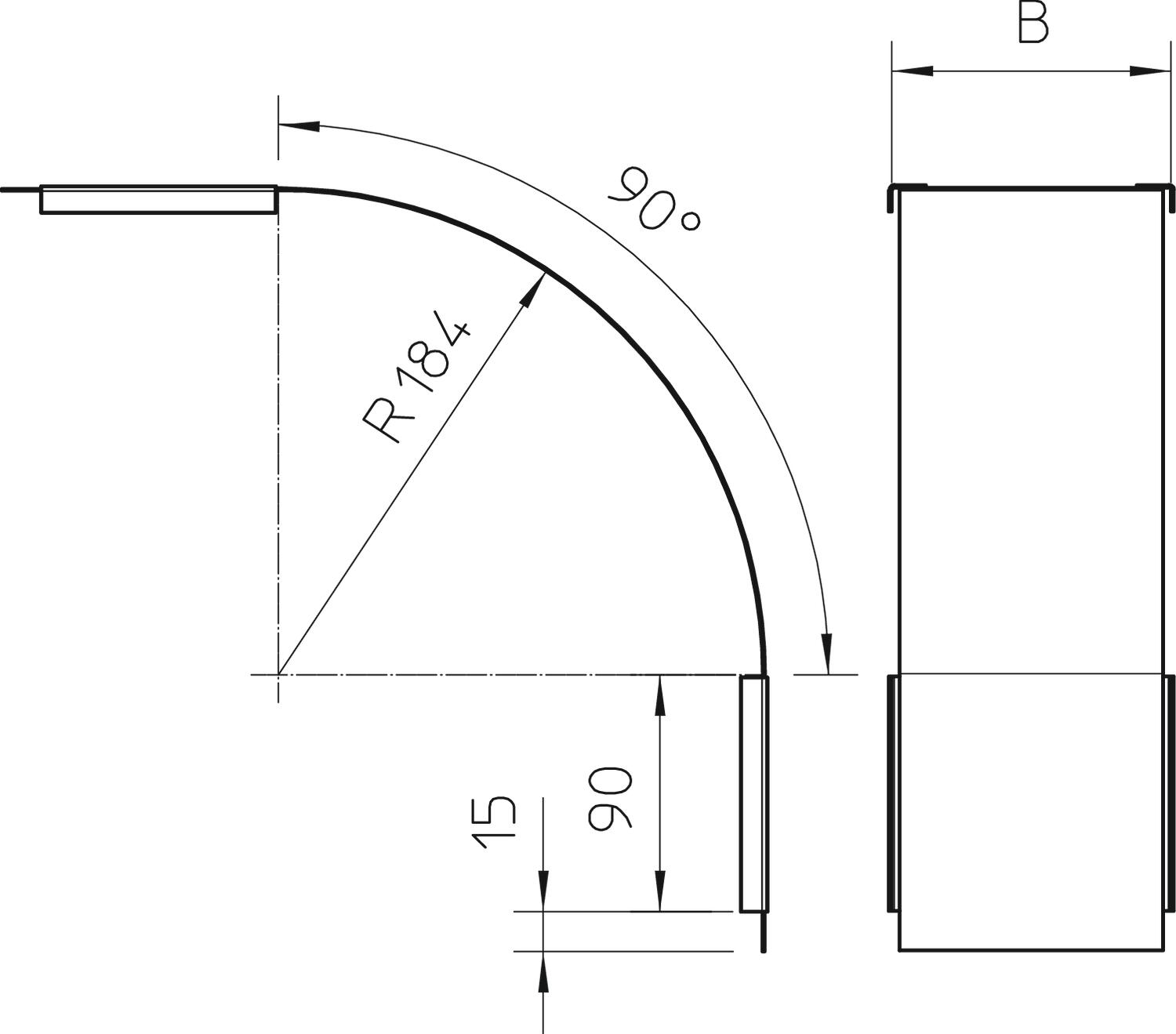

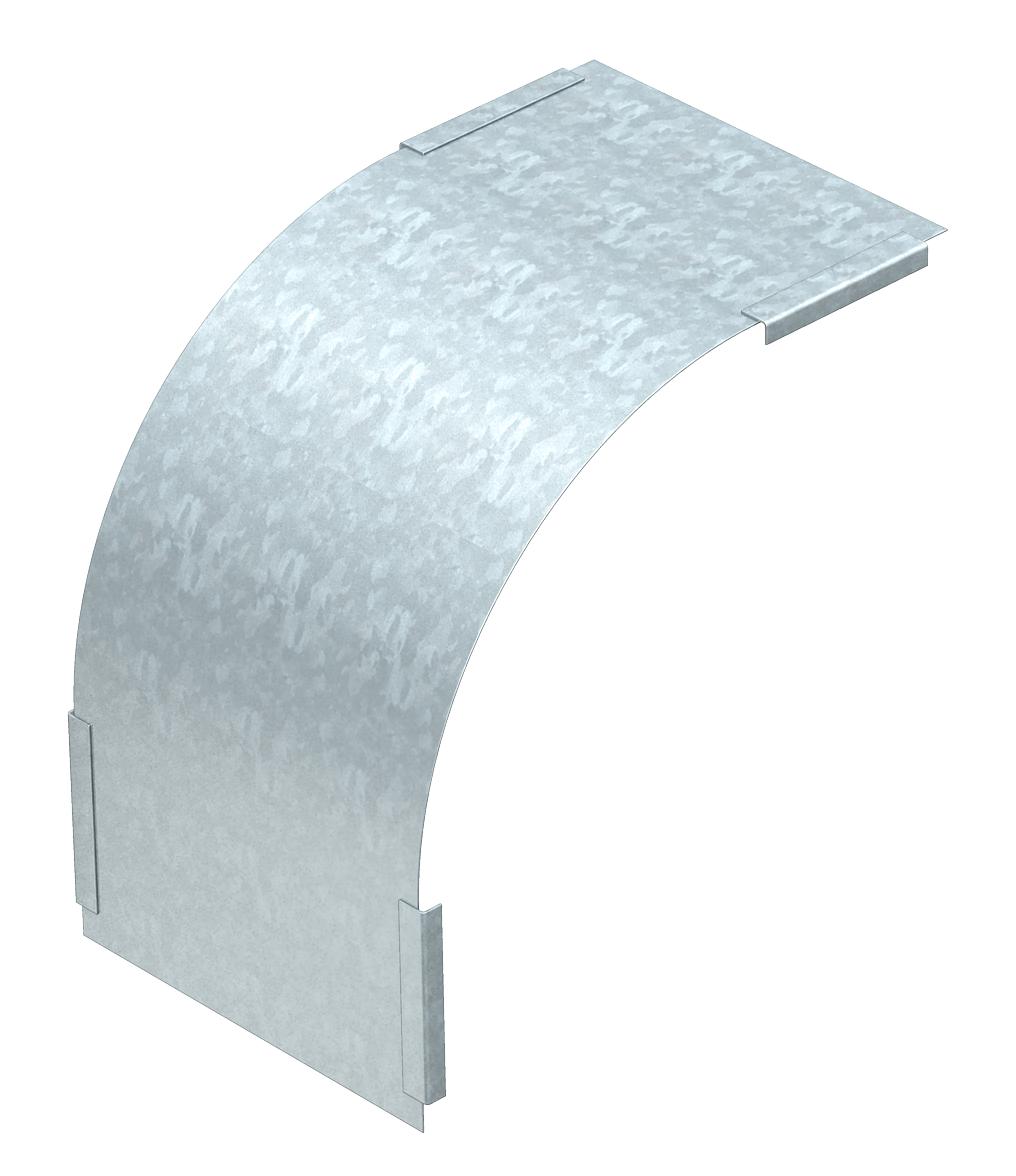

Cover for 90° vertical bend, falling, DD

All types
