Bend (angle)	90°
Change of direction	Vertical, falling
Dimension	B100mm
Dimension B	100 mm
Fastening type	Sash lock
Height	85 mm
Hinged	no
Maintain electrical functions	no
Material	Steel

Plate thickness	0,03 in
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Width	100 mm
Width	4 in

Types	Width	Plate thickness	Item no.	Quantity	SSU
DBV 85 100 F DD	100 mm	0.75 mm	7131672	piece	1 piece
DBV 85 200 F DD	200 mm	0.75 mm	7131676	piece	1 piece
DBV 85 300 F DD	300 mm	0.75 mm	7131680	piece	1 piece
DBV 85 400 F DD	400 mm	0.75 mm	7131684	piece	1 piece
DBV 85 500 F DD	500 mm	0.75 mm	7131688	piece	1 piece
DBV 85 600 F DD	600 mm	0.75 mm	7131692	piece	1 piece

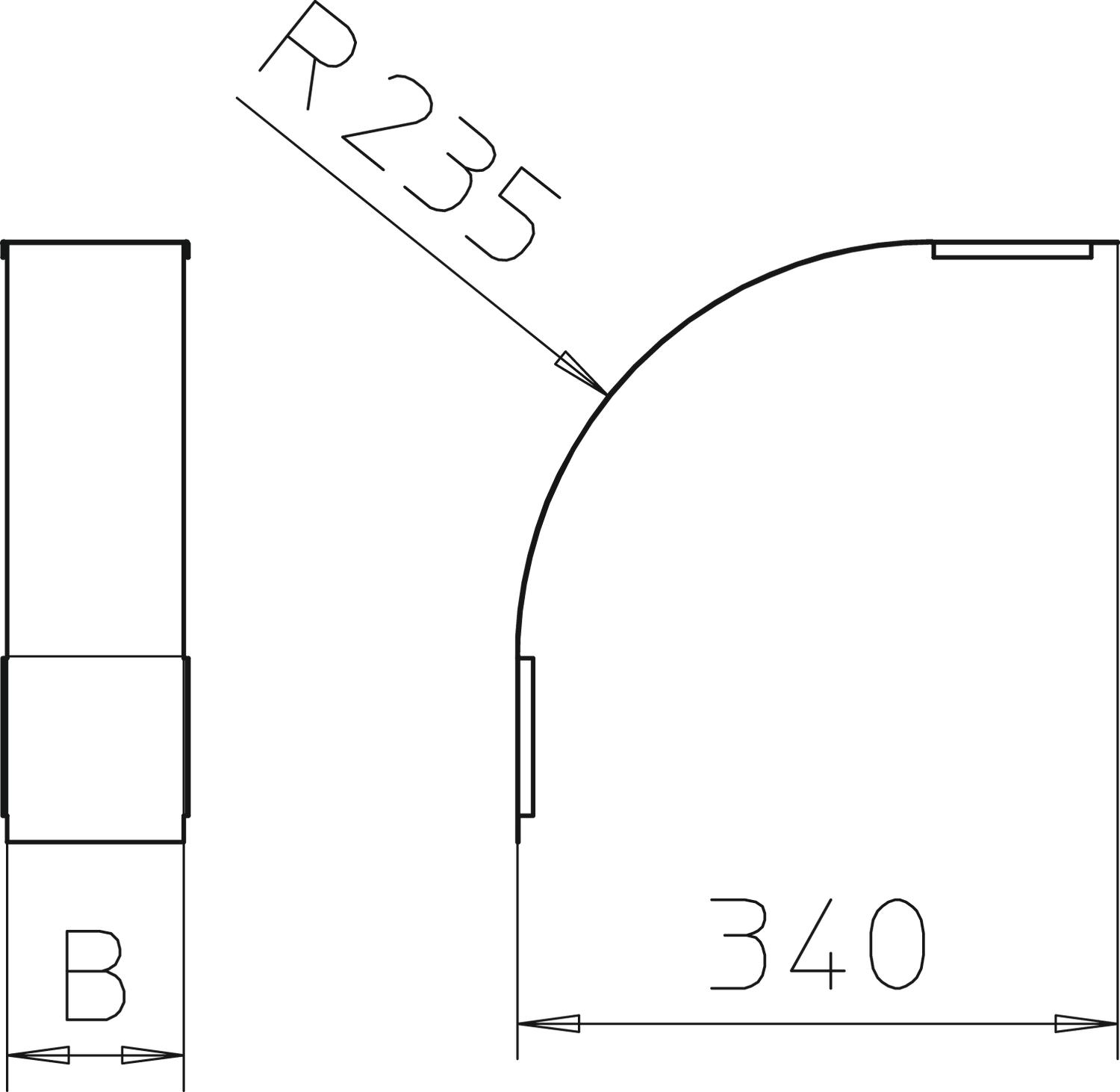

Cover for 90° vertical bend 85, falling, DD
