- Product description
-
Product description

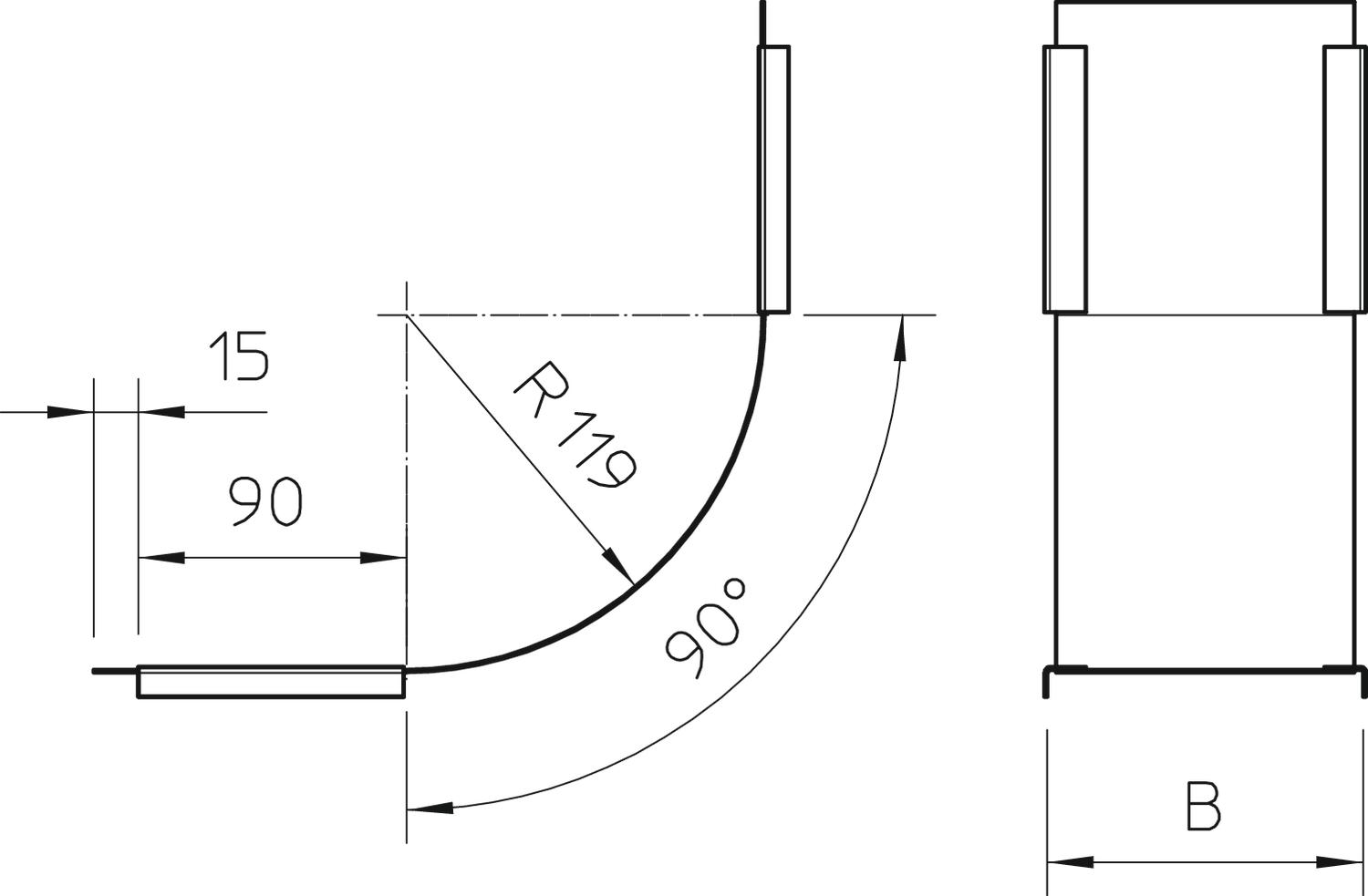

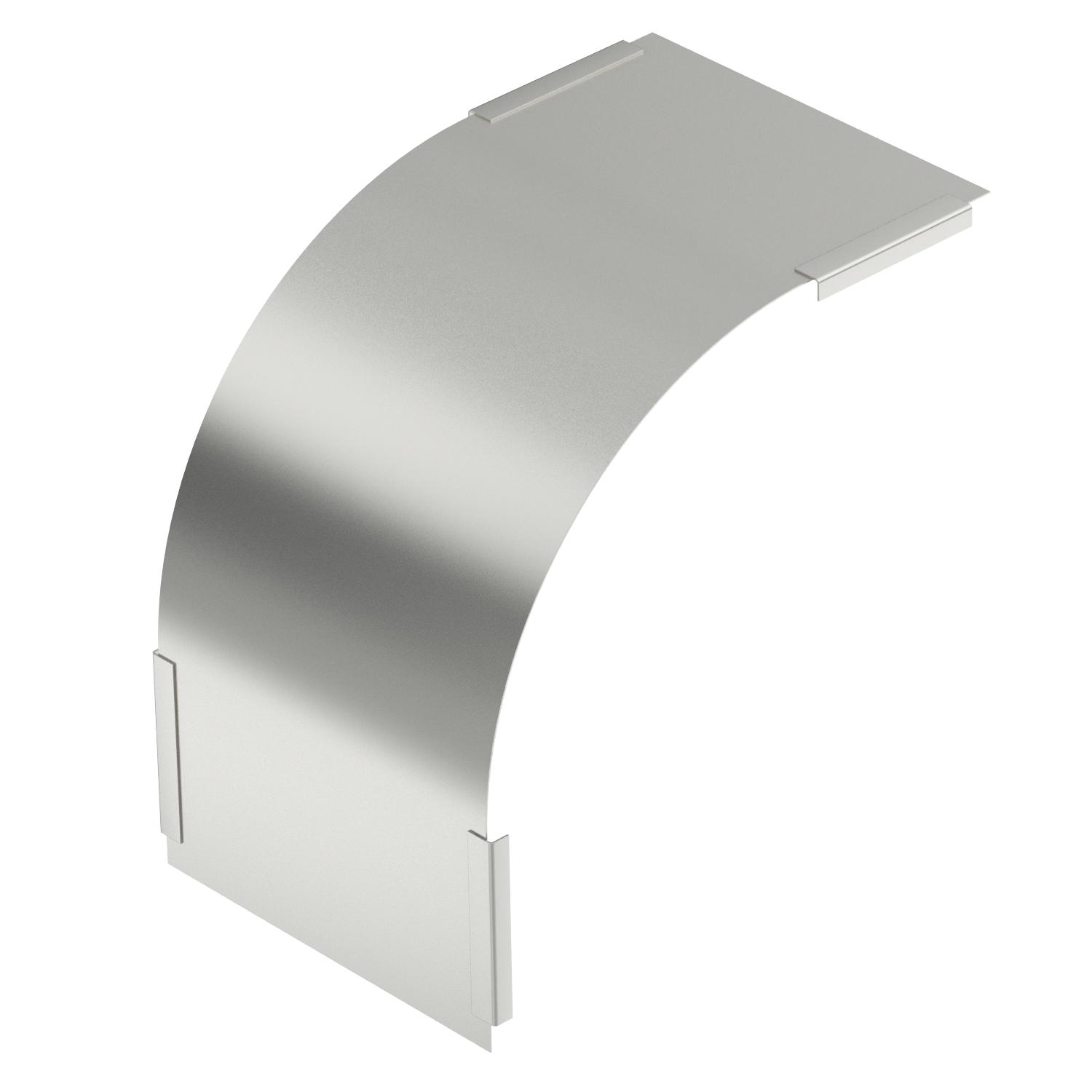

Cover for falling vertical bends of side height 60 mm.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Vertical, falling Dimension B100mm Fastening type Sash lock Hinged no Maintain electrical functions no Material Stainless steel Plate thickness 0,03 in Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Dimensions
Dimension B 100 mm Height 60 mm Width 4 in Width 100 mm - All types
- Downloads
-
Data sheet DBV 60 100 F A4 / 7130972 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DBV 60 100 F A4 / 7130972 , 0.17MB , pdf
