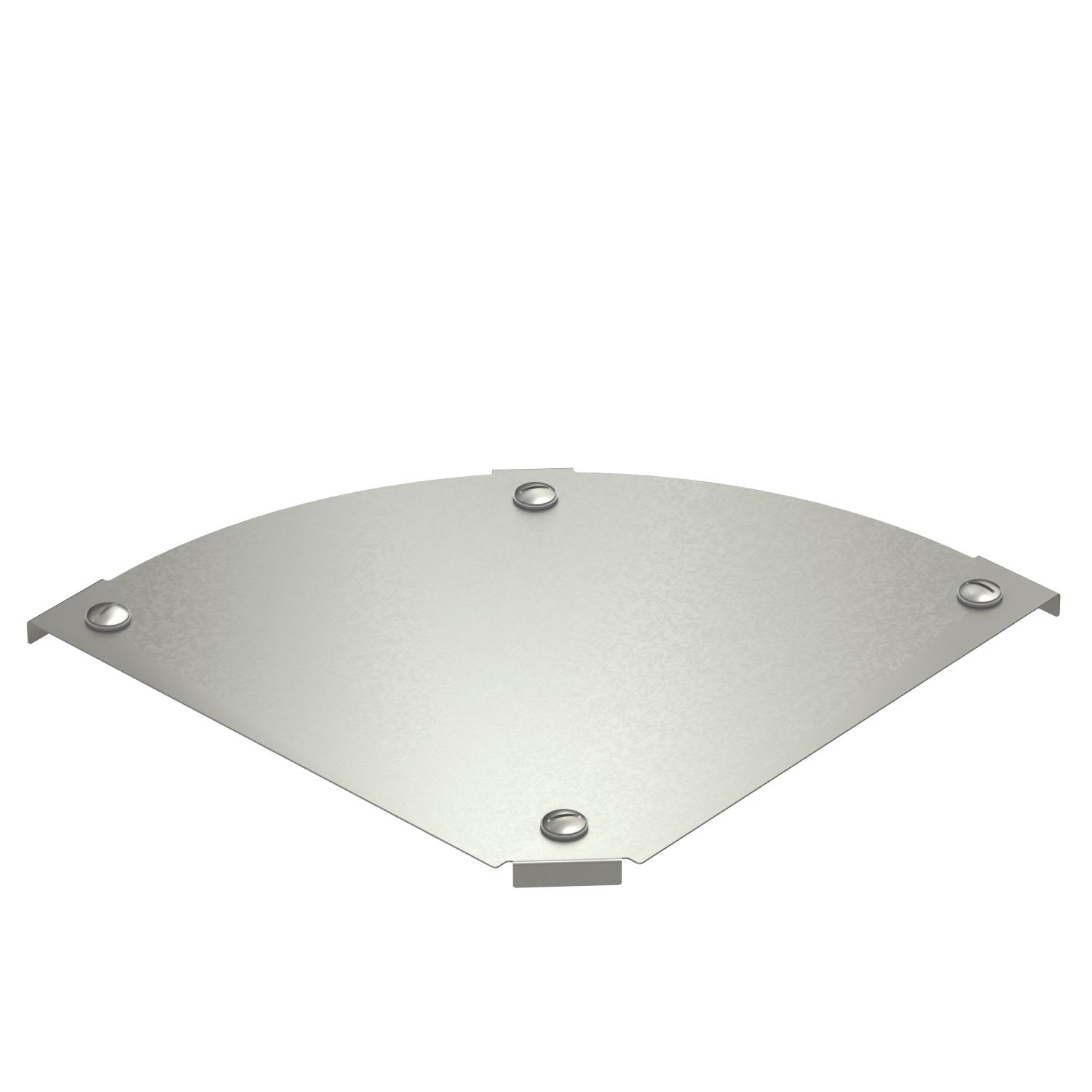

Cover for 90° Magic bend A4 300 | 1.25

morepic-1

morepic-2

Cover for 90° Magic bend A4

Item no. 7138596 | EAN 4012195929369

Item no. / Types

Width

Plate thickness	1.25 mm

Product description

Product description

Cover for 90° bend with pre-mounted turn buckles.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Dimension	B=300mm
Dimension B	300 mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Stainless steel

Plate thickness	1,25 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Bright, treated
Width	300 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
DFBM 90 200 A4	200 mm	1.25 mm	7138594	piece	1 piece
DFBM 90 300 A4	300 mm	1.25 mm	7138596	piece	1 piece
DFBM 90 400 A4	400 mm	1.25 mm	7138598	piece	1 piece

Downloads

Data sheet DFBM 90 300 A4 / 7138596 , 0.19MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity DFBM 90 300 A4 / 7138596 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic DFBM 90 300 A4 / 7138596, 48.00 kB, jpg

Scale drawing DFBM 90 300 A4 / 7138596, 49.81 kB, jpg

DFBM 90 300 A4 / 7138596

7138596_KSTP1.stp, 638.98 kB
