Cover for 90° bend FT 800 | 1.25
morepic-1 morepic-2 video-1 video-2

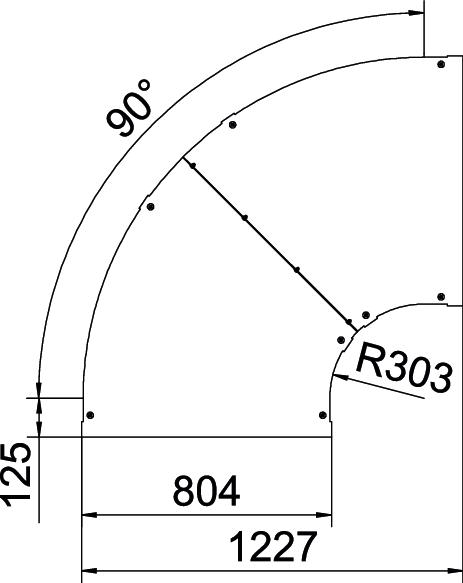

Cover for 90° bend FT

Item no. 6226024 | EAN 4012196534722

Product description
Product description
Cover with turn buckles for covering 90° cable ladder bends with welded rungs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Colour zinc
Dimension B800
Dimension B 800 mm
Fastening type Sash lock
Hinged no
Maintain electrical functions no
Material Steel
Plate thickness 1,25 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray no
Suitable for mesh cable tray no
Surface Hot-dip galvanised
Width 800 mm
All types

All types

Types Width Plate thickness Item no. Quantity SSU
LBD 90 200 R3 FT 200 mm 1 mm 6226010
1 piece
LBD 90 300 R3 FT 300 mm 1 mm 6226012
1 piece
LBD 90 400 R3 FT 400 mm 1 mm 6226014
1 piece
LBD 90 450 R3 FT 450 mm 1.25 mm 6226016
1 piece
LBD 90 500 R3 FT 500 mm 1.25 mm 6226018
1 piece
LBD 90 600 R3 FT 600 mm 1.25 mm 6226020
1 piece
LBD 90 750 R3 FT 750 mm 1.25 mm 6226022
1 piece
LBD 90 800 R3 FT 800 mm 1.25 mm 6226024
1 piece
LBD 90 900 R3 FT 900 mm 1.25 mm 6226026
1 piece
LBD 90 1000 R3FT 1000 mm 1.25 mm 6226028
1 piece
LBD 90 1200 R3FT 1200 mm 1.25 mm 6226032
1 piece
