Cover for 90° bend FS

Item no. 6225990 | EAN 4012196532780

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover with turn buckles for covering 90° cable ladder bends with welded rungs.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Dimension	B200
Dimension B	200 mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Steel

Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Suitable for mesh cable tray	no
Surface	Strip galvanized
Width	200 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LBD 90 200 R3 FS	200 mm	1 mm	6225990	piece	1 piece
LBD 90 300 R3 FS	300 mm	1 mm	6225992	piece	1 piece
LBD 90 400 R3 FS	400 mm	1 mm	6225994	piece	1 piece
LBD 90 500 R3 FS	500 mm	1.25 mm	6225996	piece	1 piece
LBD 90 600 R3 FS	600 mm	1.25 mm	6225998	piece	1 piece

Downloads

Data sheet LBD 90 200 R3 FS / 6225990 , 0.18MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LBD 90 200 R3 FS / 6225990 , 0.10MB , pdf

UK Declaration of Conformity LBD 90 200 R3 FS / 6225990 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

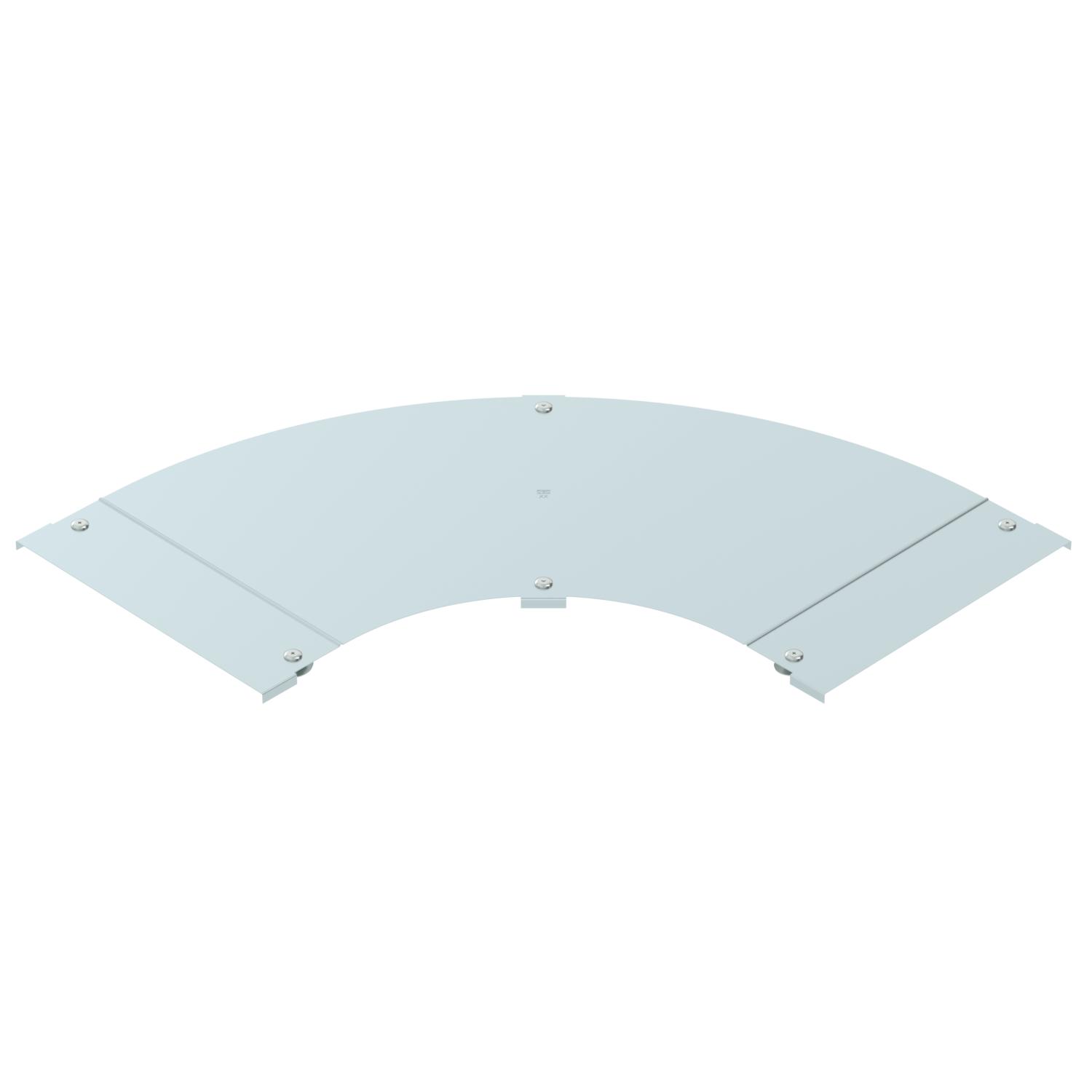

Product graphic LBD 90 200 R3 FS / 6225990, 25.47 kB, jpg

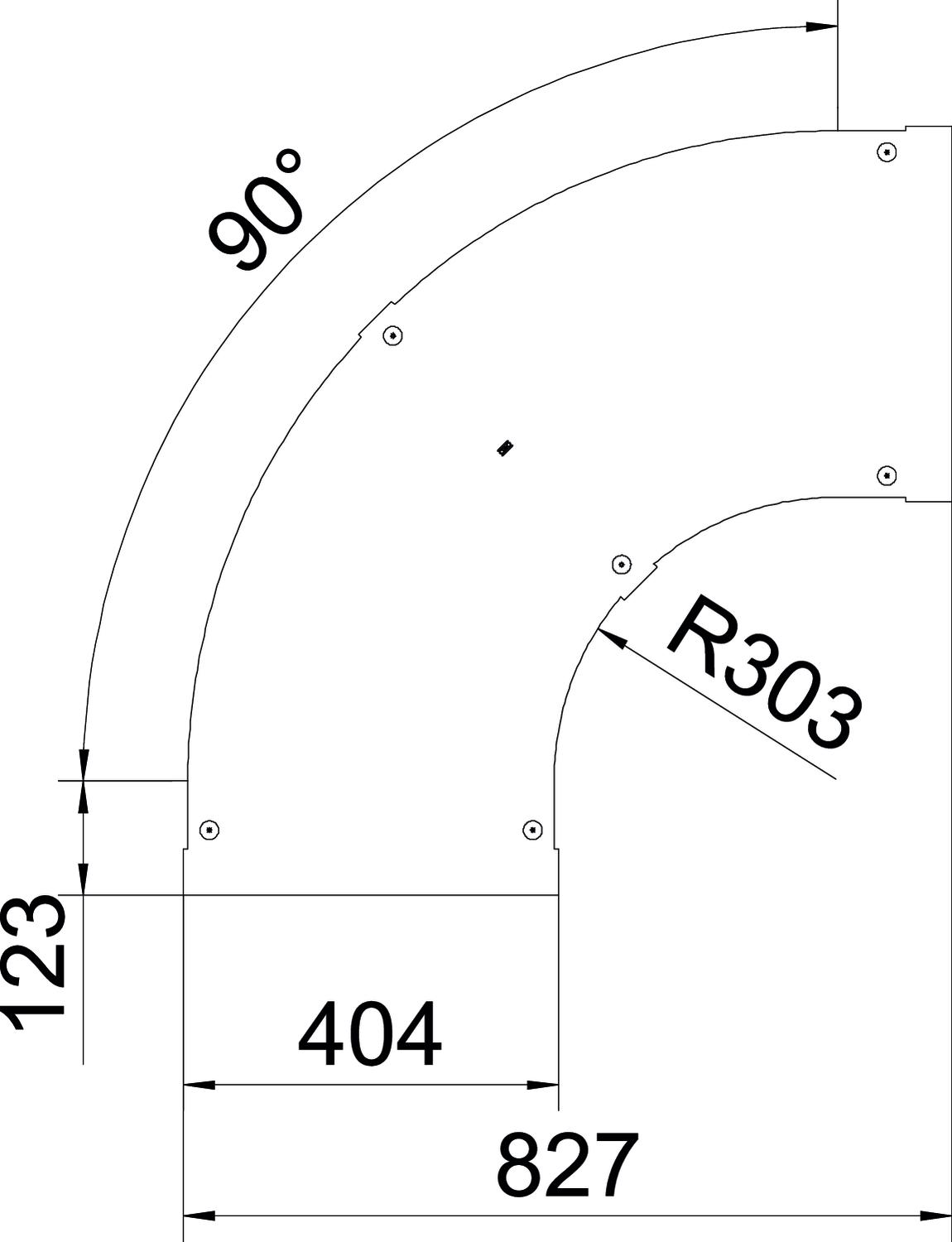

Scale drawing LBD 90 200 R3 FS / 6225990, 62.38 kB, jpg

LBD 90 200 R3 FS / 6225990

6225990_KSTP1.STP, 414.71 kB
