Cover for 90° bend A2

Item no. 6226050 | EAN 4012196534784

Item no. / Types

Width

Plate thickness

Product description

Product description

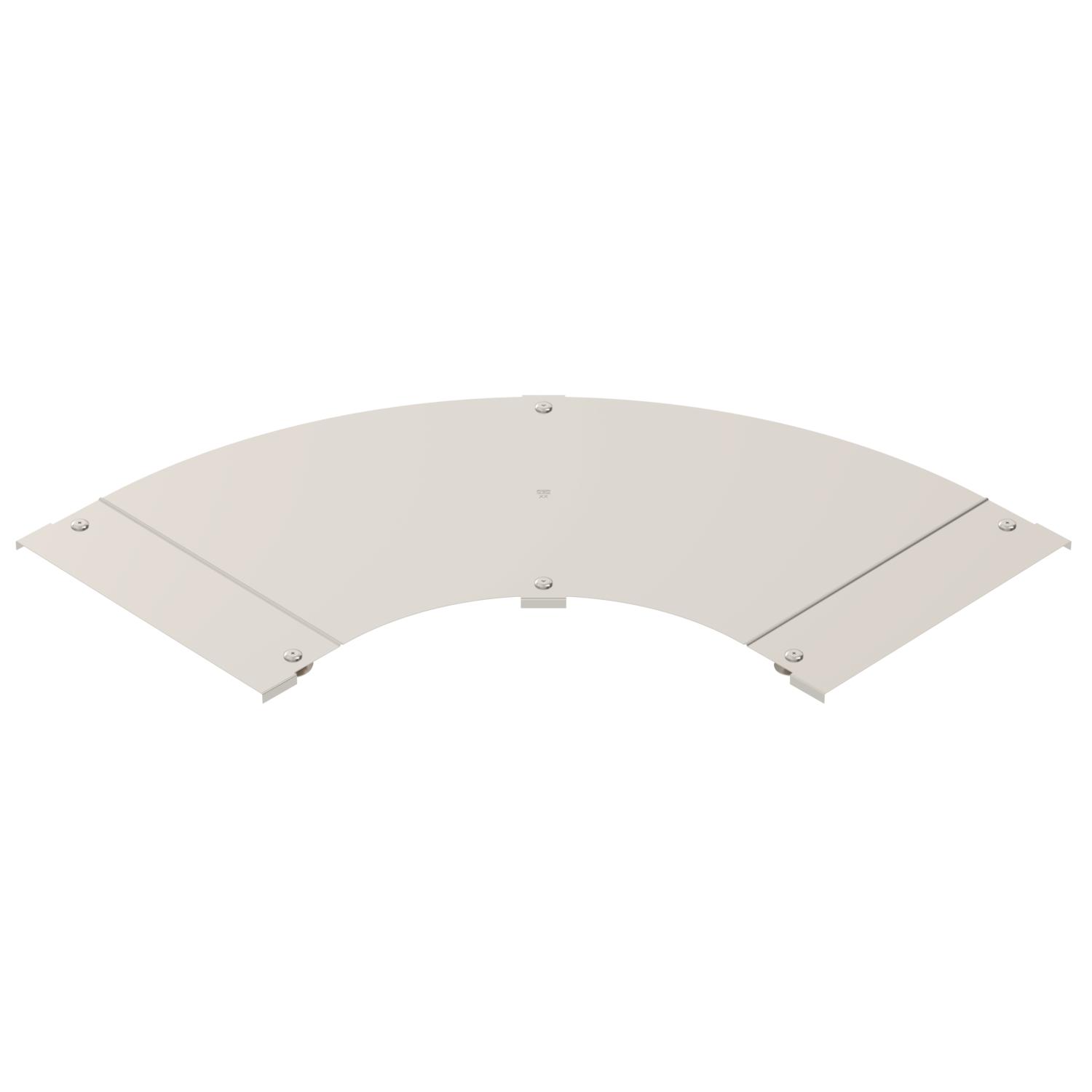

Cover with turn buckles for covering 90° cable ladder bends with welded rungs.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Dimension	B200
Dimension B	200 mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Stainless steel

Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	no
Suitable for mesh cable tray	no
Surface	Bright, treated
Width	200 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
LBD 90 200 R3 A2	200 mm	1 mm	6226050	piece	1 piece
LBD 90 300 R3 A2	300 mm	1 mm	6226052	piece	1 piece
LBD 90 400 R3 A2	400 mm	1 mm	6226054	piece	1 piece
LBD 90 500 R3 A2	500 mm	1.25 mm	6226056	piece	1 piece
LBD 90 600 R3 A2	600 mm	1.25 mm	6226058	piece	1 piece

Downloads

Data sheet LBD 90 200 R3 A2 / 6226050 , 0.20MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LBD 90 200 R3 A2 / 6226050 , 0.10MB , pdf

UK Declaration of Conformity LBD 90 200 R3 A2 / 6226050 , 0.09MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic LBD 90 200 R3 A2 / 6226050, 25.53 kB, jpg

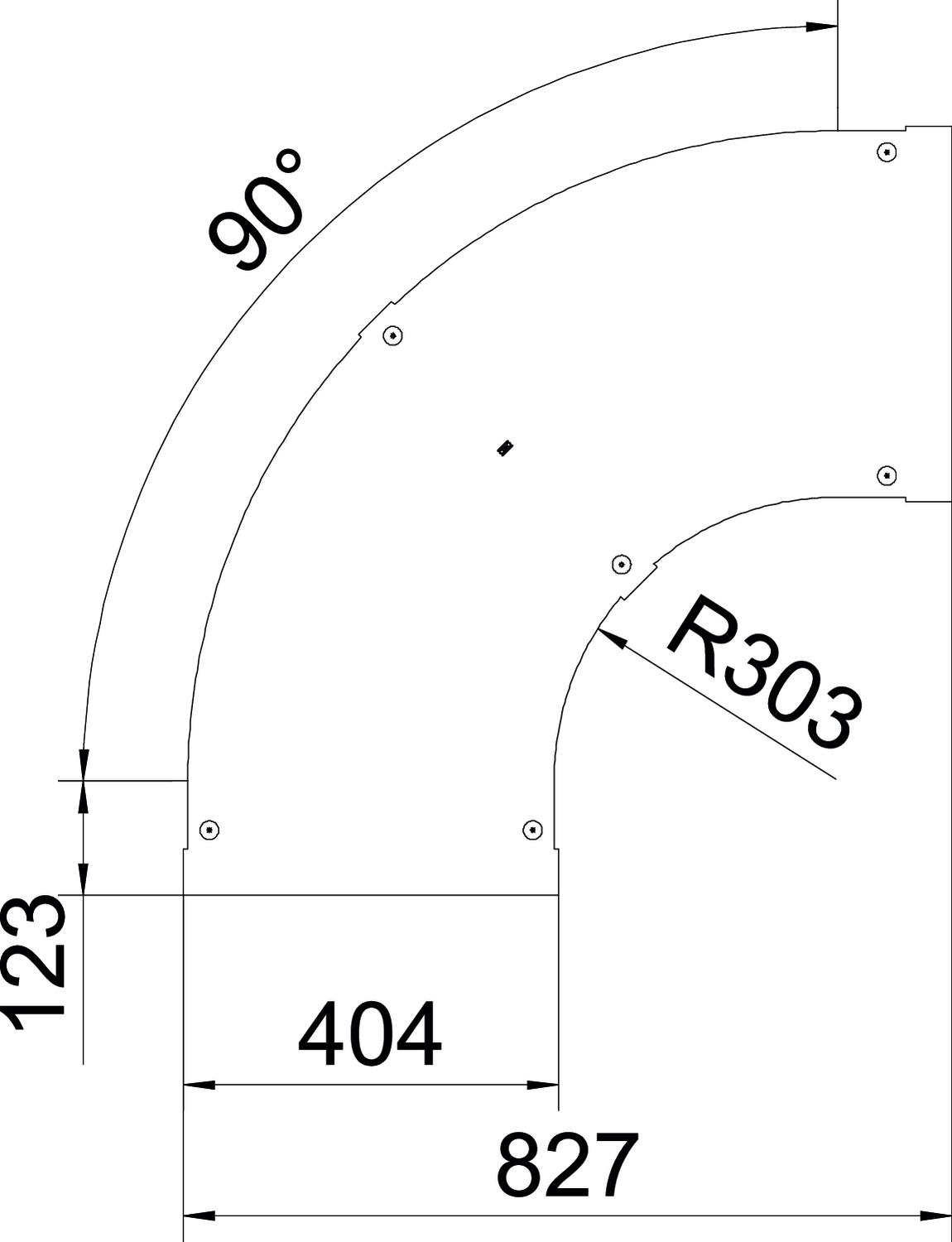

Scale drawing LBD 90 200 R3 A2 / 6226050, 62.38 kB, jpg
