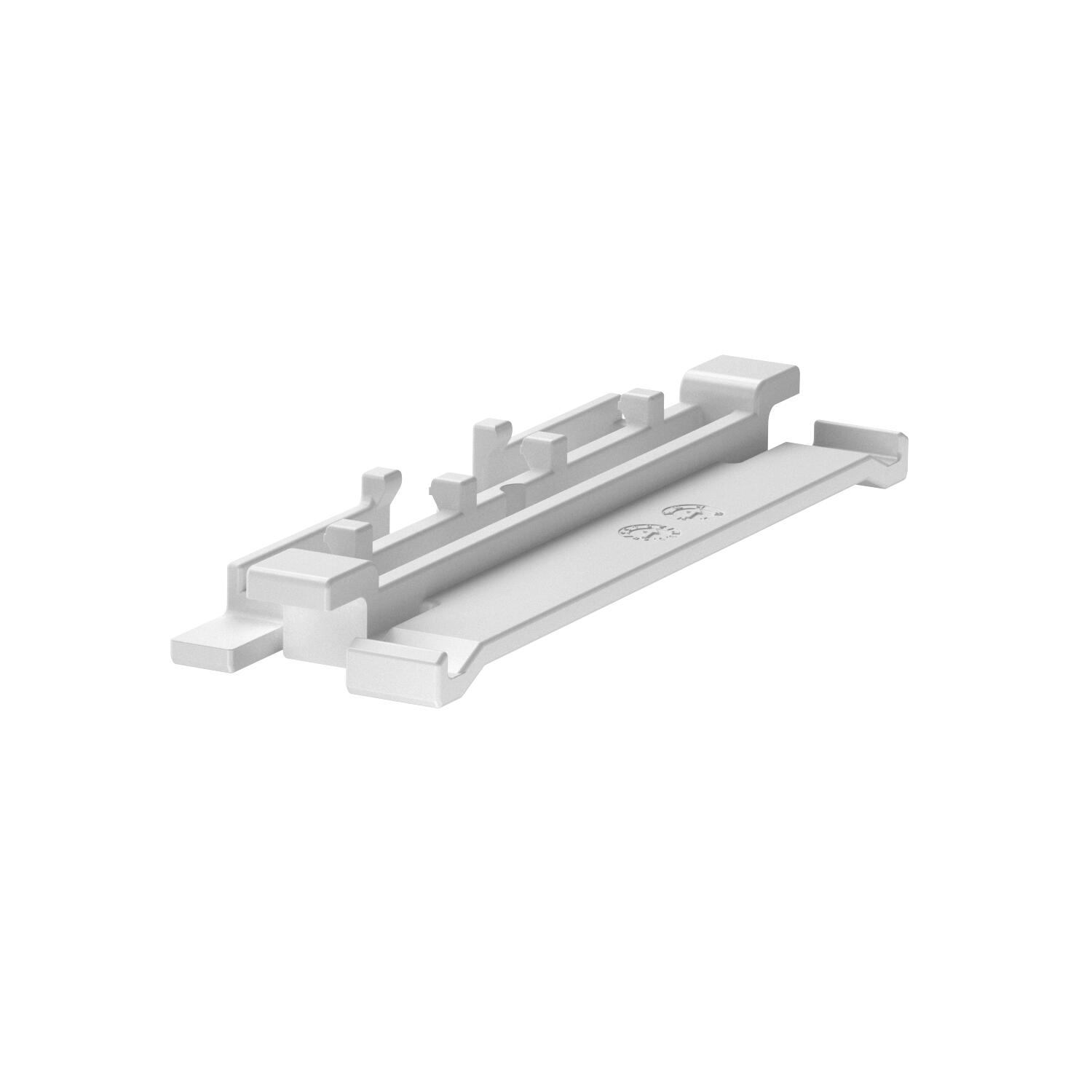

Cover clip for WDKH trunking, trunking width 110 mm
Item no. 6176128 | EAN 4012195817901
- Product description
-
Product descriptionCover clip for better and easier laying of lines in the WDKH trunking.
The cover clip is locked on one side and moved forward. This provides a 30° opening, meaning that cable routing is very simple.
-
- Technical data
-
Technical data

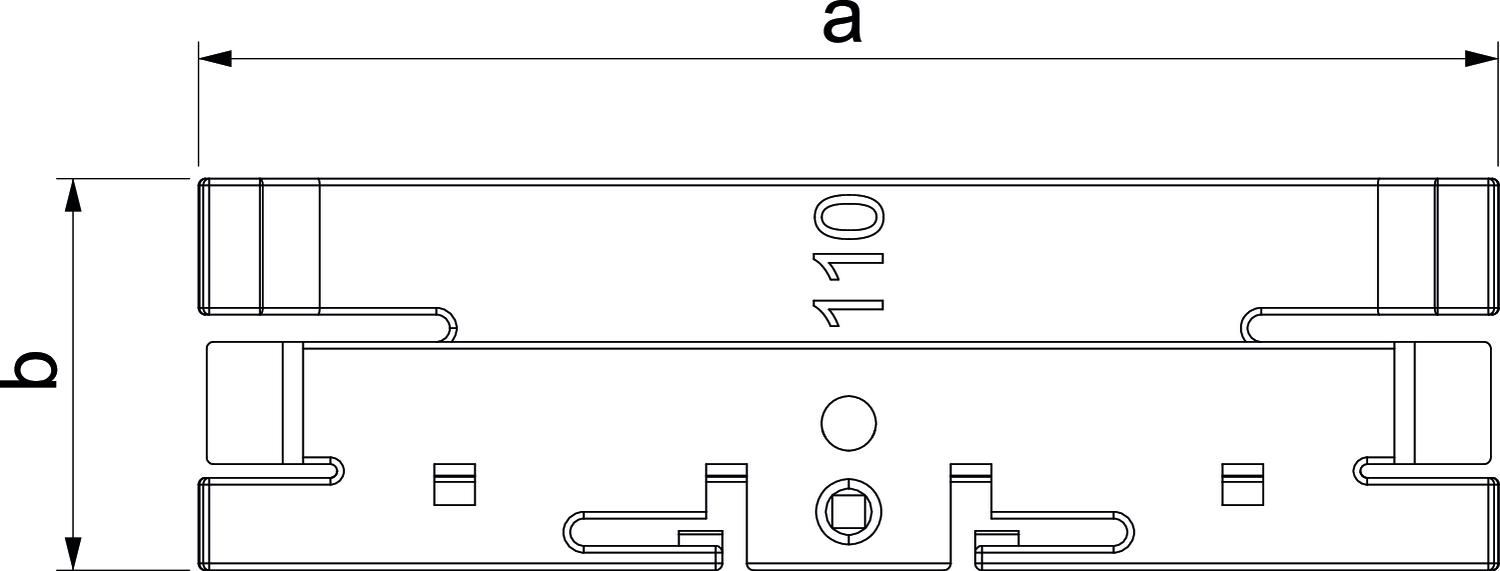

Colour Pure white; RAL 9010 Cover width 110 mm Dimension 96x29 Dimension a 95,7 mm Dimension b 28,8 mm Fastening type Lockable Halogen-free yes Height 10,5 mm Length 28,8 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Self-extinguishing yes Width 95,7 mm With equipotential bonding no - All types
- Downloads
-
Data sheet OTK H110 / 6176128 , 0.19MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity OTK H110 / 6176128 , 0.13MB , pdfUK Declaration of Conformity OTK H110 / 6176128 , 0.14MB , pdfMounting instructions Leitungsführungskanal WDK , 6.19MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
