Product description
Joint connector for connecting the bases of Rapid 80 GA aluminium device installation trunking.

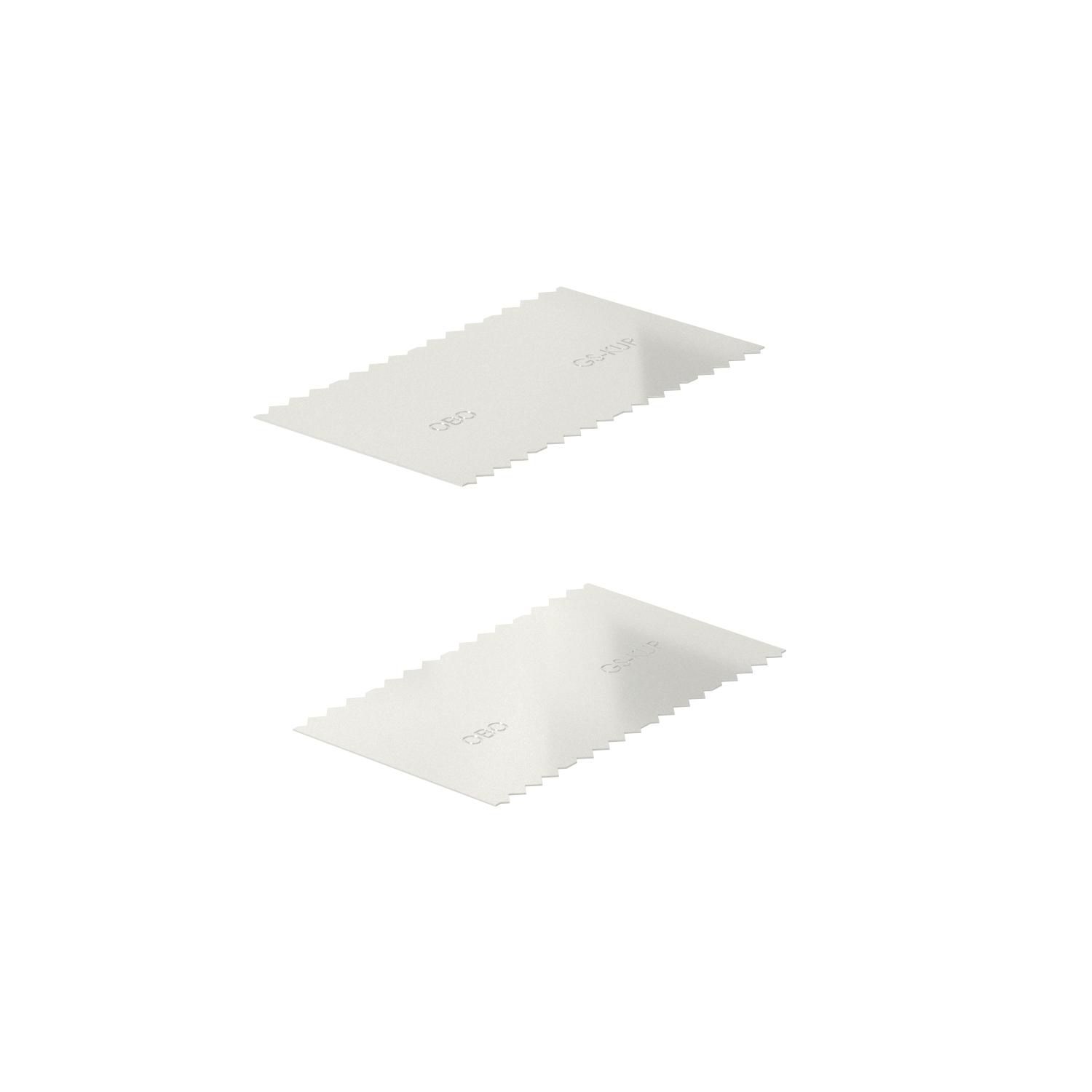

The scope of delivery of a coupling includes 2 connection plates.
- Technical data
-
Technical data
Dimension 64x120 Halogen-free yes Material Stainless steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Trunking depth 70 mm Type coupling Version for Universal With equipotential bonding yes Dimensions

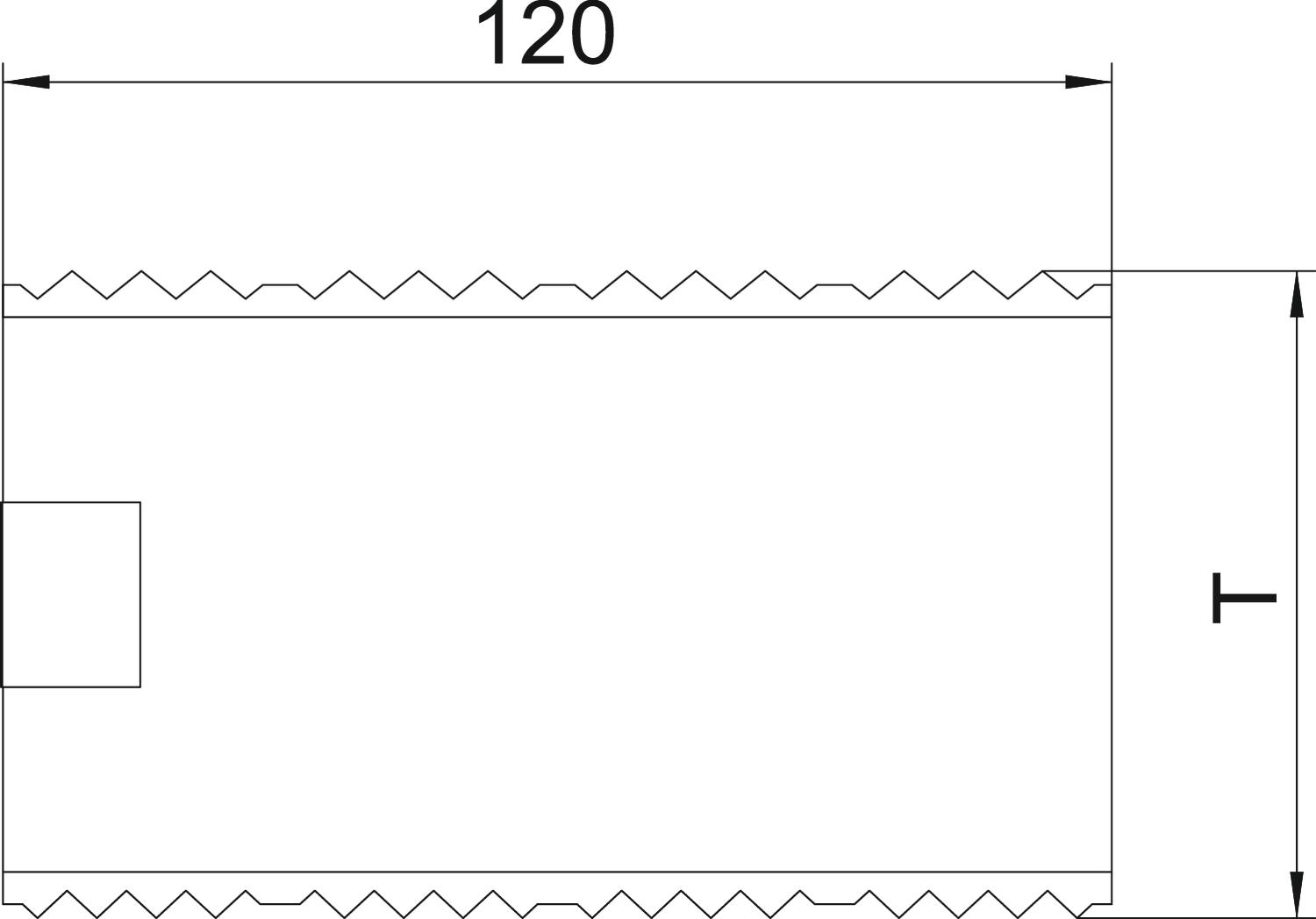

Length 120 mm Width 64 mm - All types
- Downloads
-
Data sheet GA-KUP70 / 6279701 , 0.24MB , pdfDeclaration of conformity GA-KUP70 / 6279701 , 0.13MB , pdfUK Declaration of Conformity GA-KUP70 / 6279701 , 0.14MB , pdfREACH Declaration of conformity GA-KUP70 / 6279701 , 0.27MB , pdfRoHS Declaration of conformity GA-KUP70 / 6279701 , 0.28MB , pdfMounting instructions Mounting instructions, GK-KUP/GS-KUP/KUPP/GA-KUP coupling , 3.68MB , pdf
