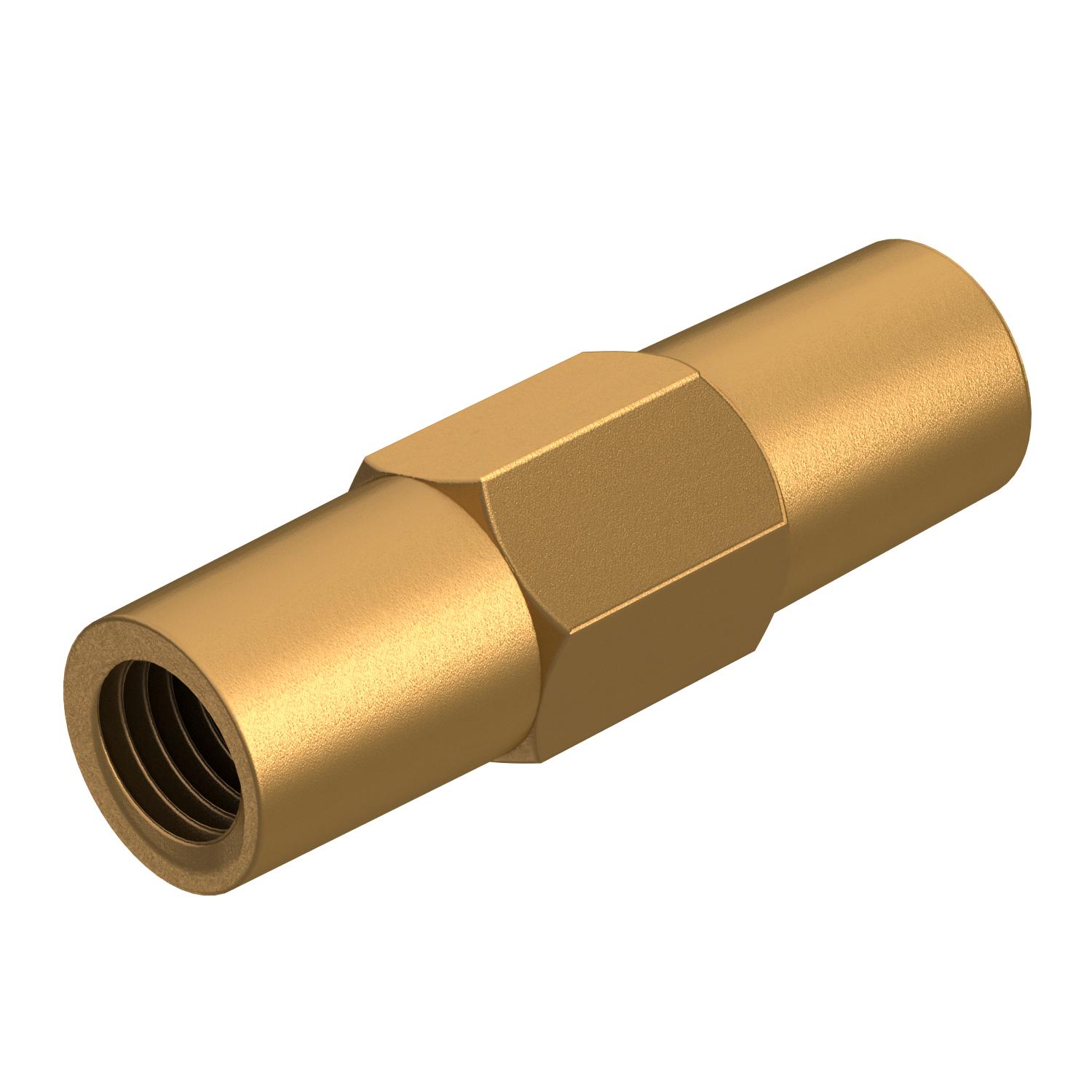

Coupling for earth rod with thread

Item no. / Types	5001190 / 2019 16

External diameter	14.2 mm

Product description

Product description

• Suitable for earth rods, type 2019 16 CU

Technical data

Dimension	72x21
External diameter	14,2 mm

for earth rods	14,2 mm
Material	Red bronze

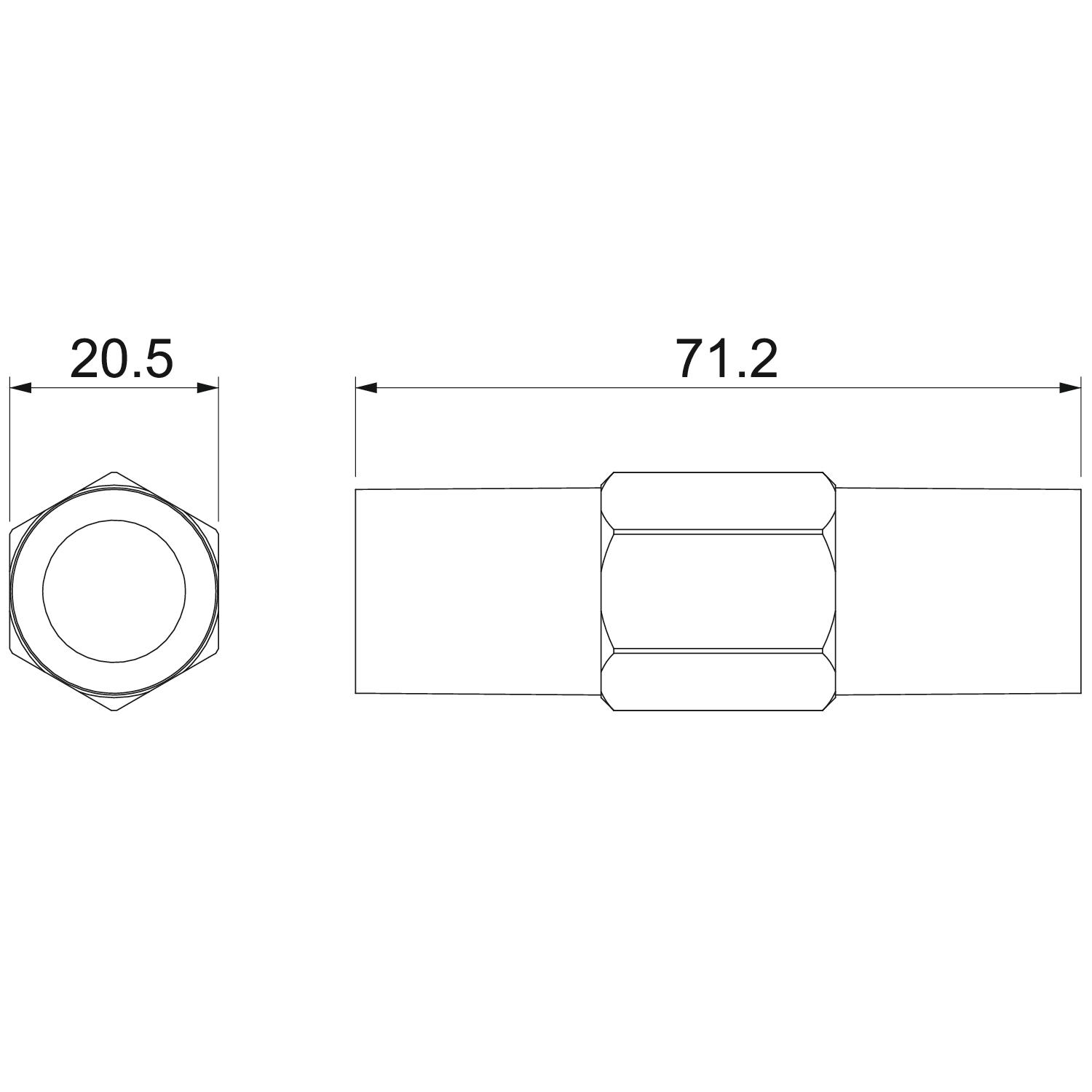

Dimension D	20,5 mm
Dimension L	71,2 mm

Length	72 mm

All types

Types	External diameter	Item no.	Quantity	SSU
2019 16	14.2 mm	5001190	piece	10 piece
