- Product description
-
Product descriptionMetal counter-trough, for mounting on clamp clip. Can be used universally, irrespective of the rail.
- Technical data
-
Technical data

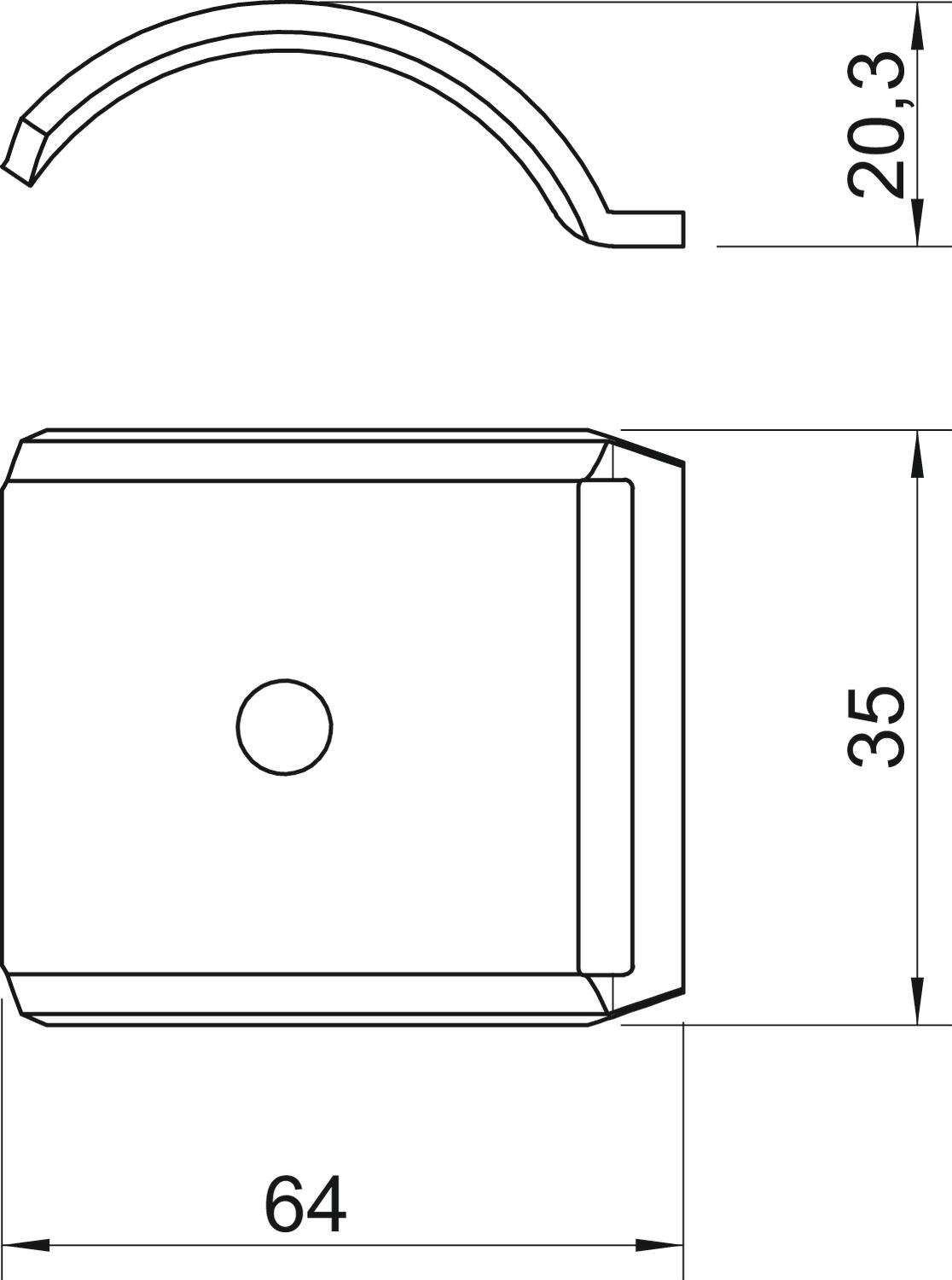

Clamping range D, max. 58 mm Clamping range D, min. 52 mm Counter-trough/clip version Counter sleeve CO₂ Footprint (GWP) Cradle-to-Gate 0,119 kg CO₂e / 1 Piece Dimension 52-58mm Dimension B 64 mm Dimension H 20,3 mm Dimension L 35 mm Halogen-free yes Material Steel Suitable for max. cable diameter 58 mm Surface Strip galvanised zinc/aluminium, Double Dip - All types
-
All types
- Downloads
-
Data sheet 2058FW M 58 DD / 1199927 , 0.18MB , pdfREACH Declaration of conformity 2058FW M 58 DD / 1199927 , 0.12MB , pdfRoHS Declaration of conformity 2058FW M 58 DD / 1199927 , 0.12MB , pdf
