Counter-trough, metal, universal A2

Item no. / Types

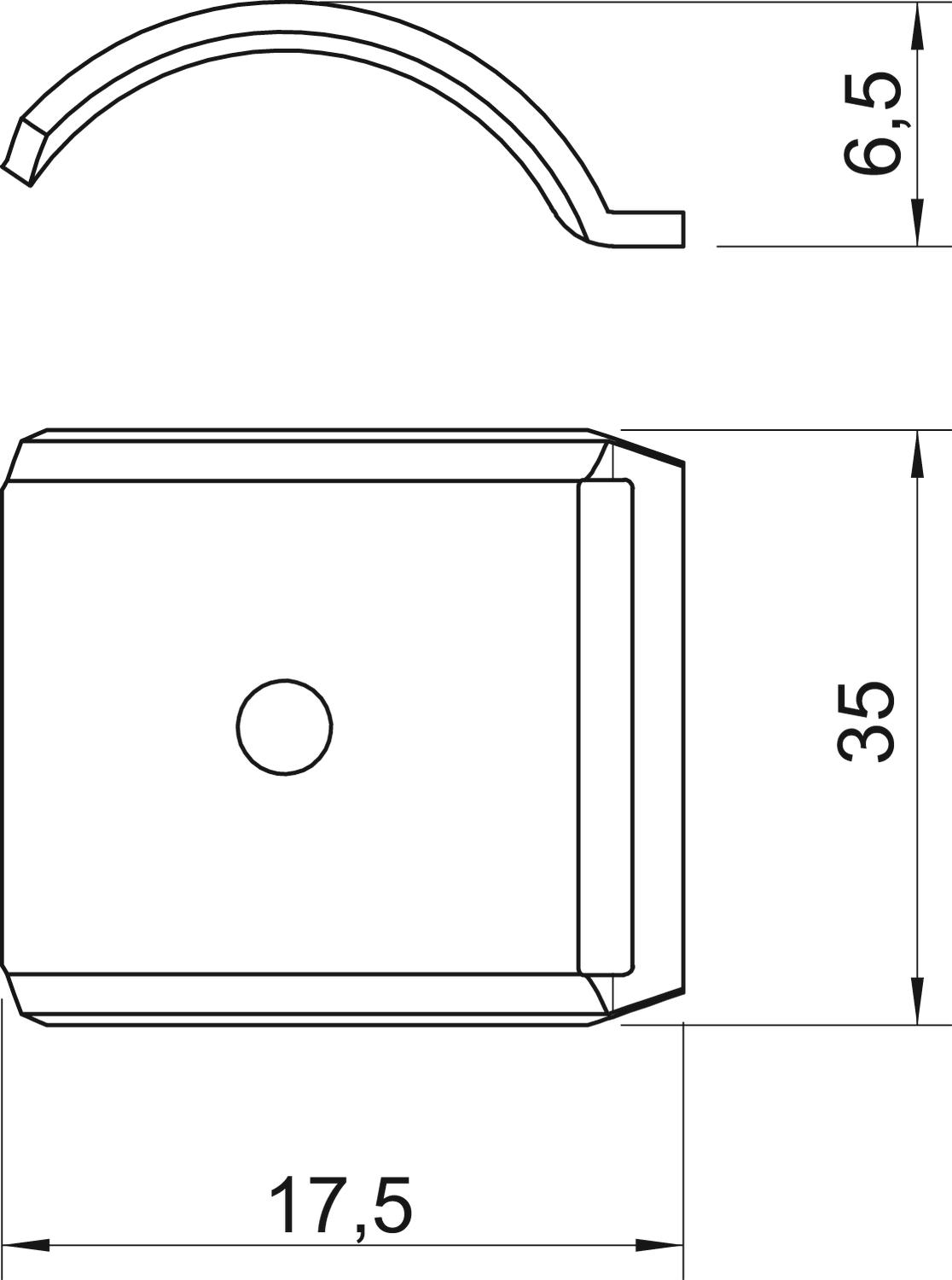

Dimension B

Dimension H

Dimension L	35 mm

Clamping range D, min.

Clamping range D, max.

Product description

Product description

Metal counter-trough, for mounting on clamp clip. Can be used universally, irrespective of the rail.

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
Counter-trough/clip version	Counter sleeve
CO₂ Footprint (GWP) Cradle-to-Gate	0,047 kg CO₂e / 1 Piece
Dimension	8-12mm
Dimension B	17,5 mm

Dimension H	6,5 mm
Dimension L	35 mm
Halogen-free	yes
Material	Stainless steel
Suitable for max. cable diameter	12 mm
Surface	Bright, treated

All types

All types

Types	Dimension B	Dimension H	Dimension L	Clamping range D, min.	Clamping range D, max.	Item no.	Quantity	SSU
2058FW M 8 A2	13 mm	2.25 mm	35 mm	4 mm	8 mm	1197096	piece	100 piece
2058FW M 12 A2	17.5 mm	6.5 mm	35 mm	8 mm	12 mm	1197134	piece	100 piece
2058FW M 16 A2	21.5 mm	7.7 mm	35 mm	12 mm	16 mm	1197177	piece	100 piece
2058FW M 22 A2	28 mm	8.8 mm	35 mm	16 mm	22 mm	1197231	piece	100 piece
2058FW M 28 A2	34 mm	10.4 mm	35 mm	22 mm	28 mm	1197290	piece	100 piece
2058FW M 34 A2	40 mm	13.5 mm	35 mm	28 mm	34 mm	1197355	piece	100 piece
2058FW M 40 A2	46 mm	15.1 mm	35 mm	34 mm	40 mm	1197428	piece	100 piece
2058FW M 46 A2	52 mm	17.2 mm	35 mm	40 mm	46 mm	1197479	piece	100 piece
2058FW M 52 A2	58 mm	19.2 mm	35 mm	46 mm	52 mm	1197533	piece	50 piece
2058FW M 58 A2	40 mm	13.5 mm	35 mm	52 mm	58 mm	1197592	piece	50 piece
2058FW M 64 A2	70 mm	24.5 mm	35 mm	58 mm	64 mm	1197606	piece	50 piece
