Counter plate FT 13 | 6.5 | M 12
morepic-1 morepic-2

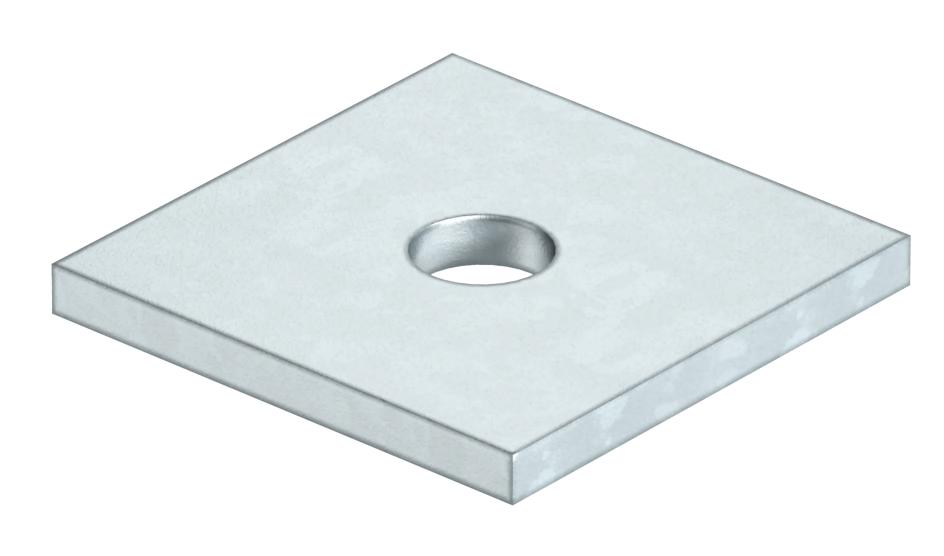

Counter plate FT

Item no. 6348408 | EAN 4012196465972

6.5 mm
Product description

Product description

Counter plate to increase the contact surface for pass-through installation of brackets and supports.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Dimension 50x60
Hole diameter 13 mm
Material Steel
Material thickness 6,5 mm
Plate thickness 0,26 in
Surface Hot-dip galvanised
Thread M 12

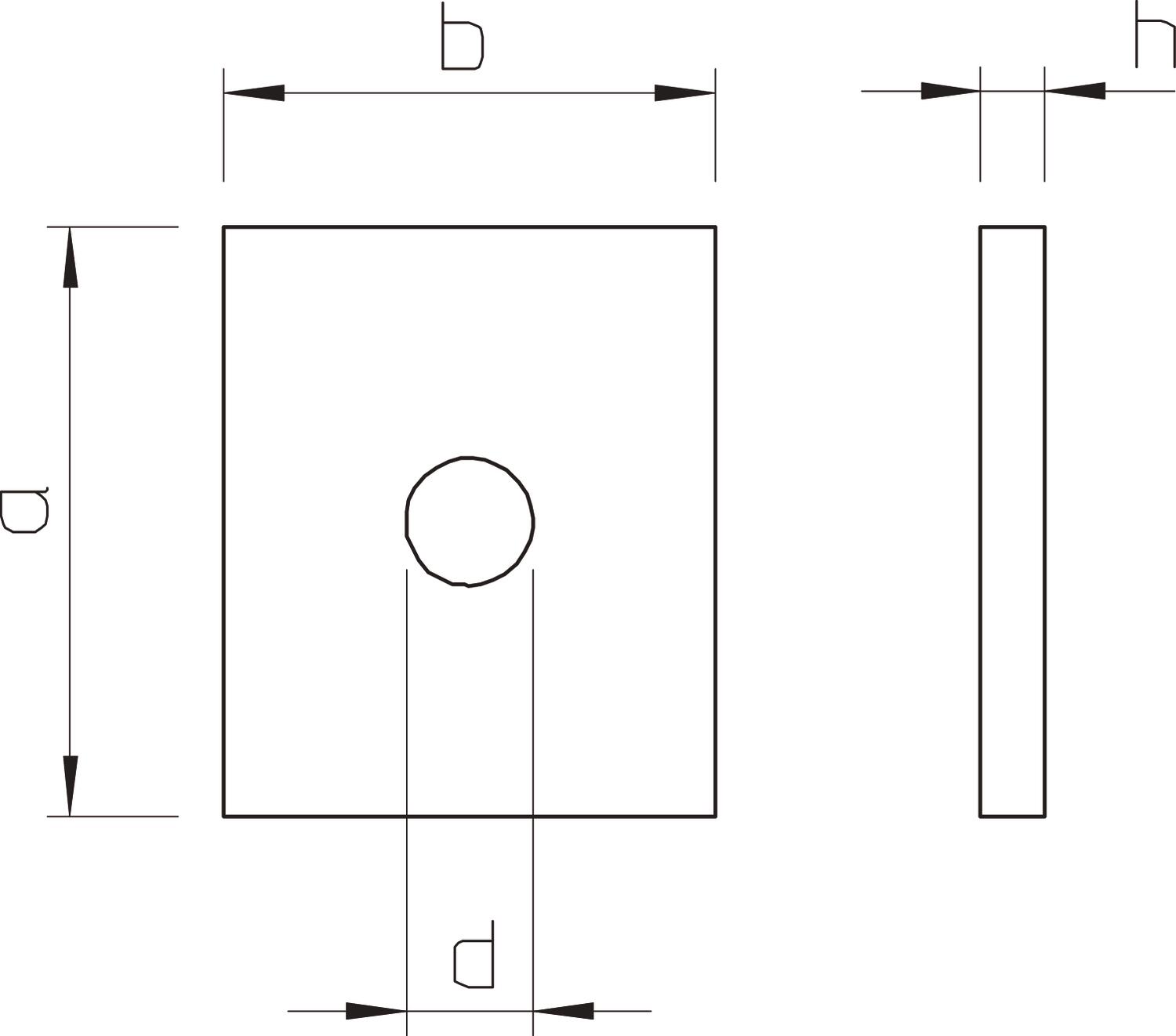

Dimensions

Dimension a 60 mm
Dimension b 50 mm
Dimension d 13 mm
Dimension h 6,5 mm
All types

All types

Types Dimension d Dimension h Thread Item no. Quantity SSU
K 60 FT 13 mm 6.5 mm M 12 6348408
10 piece
K 70 FT 17 mm 6.5 mm - 6348440
10 piece
