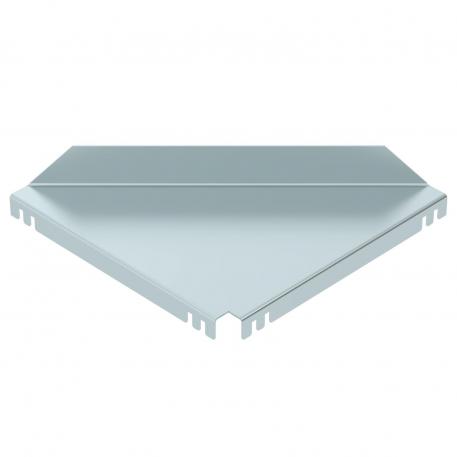

Corner plate DD 500

morepic-1

morepic-2

Corner plate DD

Item no. 6221259 | EAN 4012196089239

Item no. / Types

Radius

Product description

Product description

Corner plate to increase the radius and the cable supporting surface.

Technical data

Technical data

Dimension	R500mm
Material	Steel

Surface	Strip galvanised zinc/aluminium, Double Dip

Dimensions

Dimension a	500 mm
Height	45 mm

Radius	500 mm

All types

All types

Types	Radius	Item no.	Quantity	SSU
LEB 25 DD	250 mm	6221216	piece	1 piece
LEB 50 DD	500 mm	6221259	piece	1 piece

Downloads

Data sheet LEB 50 DD / 6221259 , 0.19MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LEB 50 DD / 6221259 , 0.17MB , pdf

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

Product graphic LEB 50 DD / 6221259, 34.21 kB, jpg

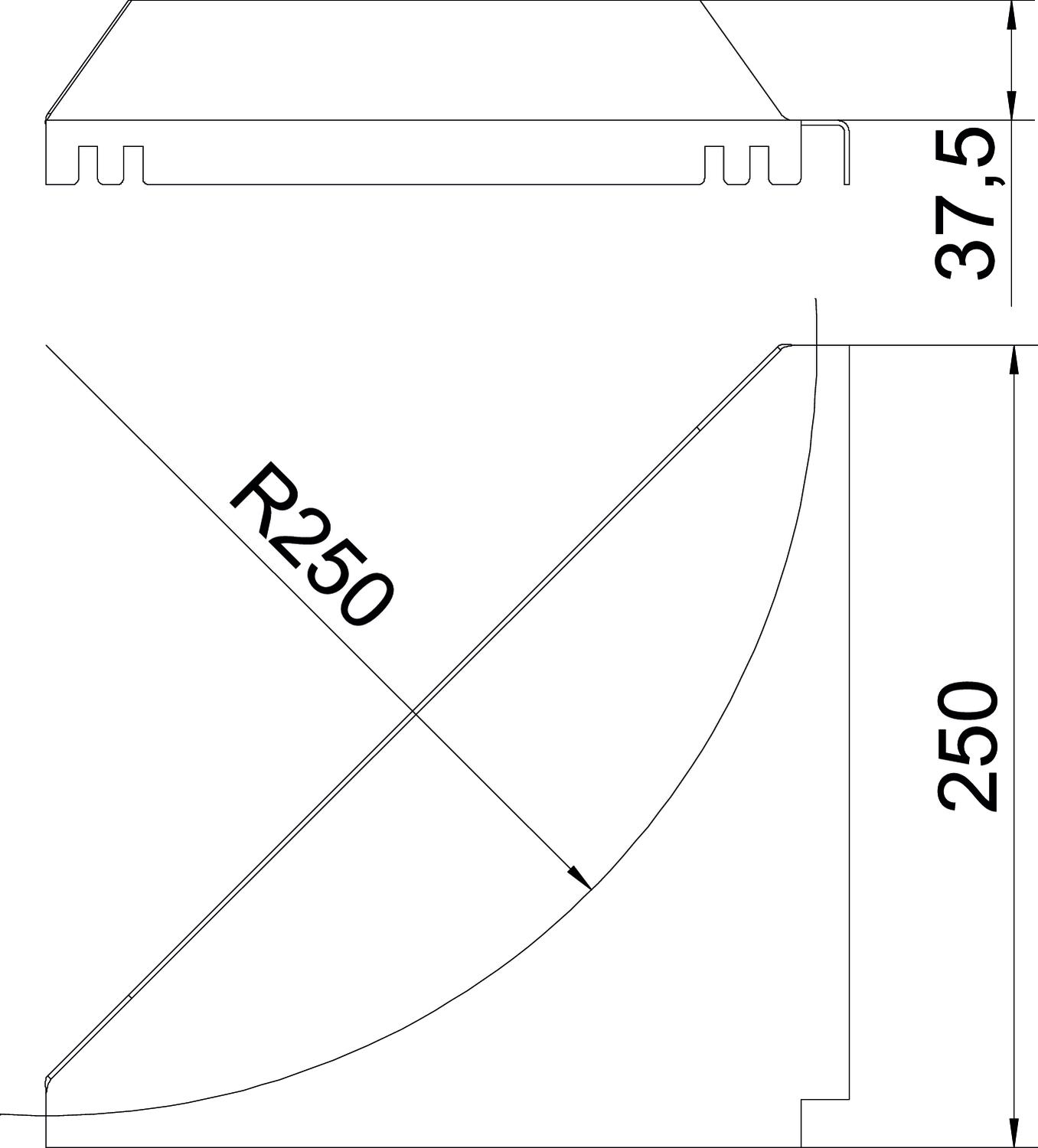

Scale drawing LEB 50 DD / 6221259, 69.51 kB, jpg

LEB 50 DD / 6221259

6221259_KSTP1.stp, 125.00 kB
