Corner extension piece 160 FT
Item no. 6098864 | EAN 4012195242550
- Product description
-
Product description

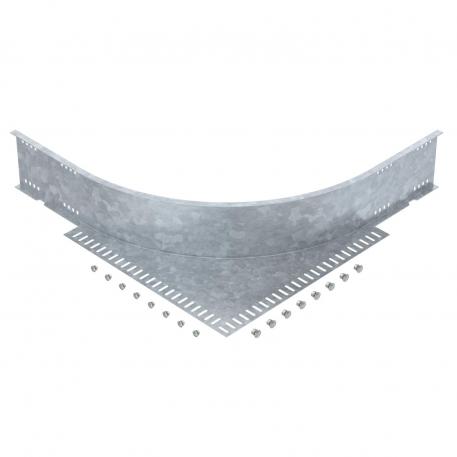

Corner extension piece for wide span cable trays and ladders with a side height of 160 mm.
-
- Technical data
-
Technical data
Connector version Without connectors Dimension 160 Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Screwed Dimensions

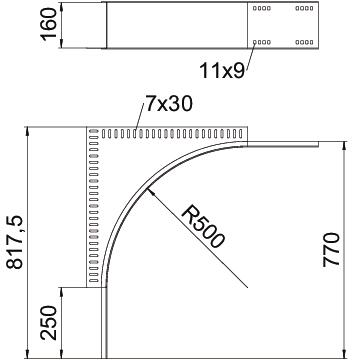

Dimension h 160 mm Height 160 mm - All types
- Downloads
-
Data sheet WEAS 160 FT / 6098864 , 0.17MB , pdfDeclaration of conformity WEAS 160 FT / 6098864 , 0.16MB , pdfREACH Declaration of conformity WEAS 160 FT / 6098864 , 0.12MB , pdfRoHS Declaration of conformity WEAS 160 FT / 6098864 , 0.12MB , pdf
