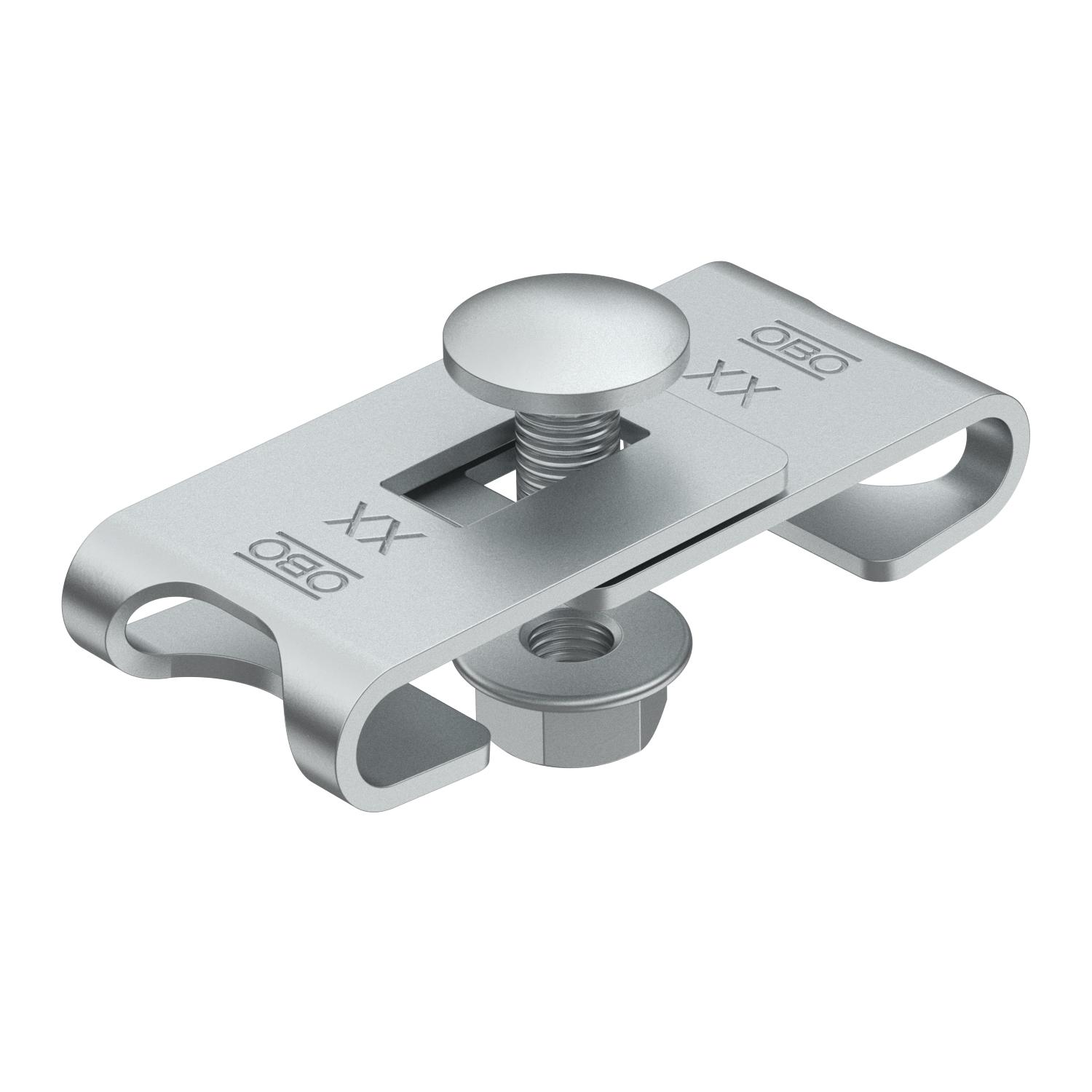

Corner connector G

Item no. 6016715 | EAN 4012196307876

6016715 / GEV 36 G
23 mm
Product description

Product description

Corner connector for the creation of mesh cable tray bend elements.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • C-mesh cable tray, slant height 50mm
Technical data

Technical data

Connection type Screw connector

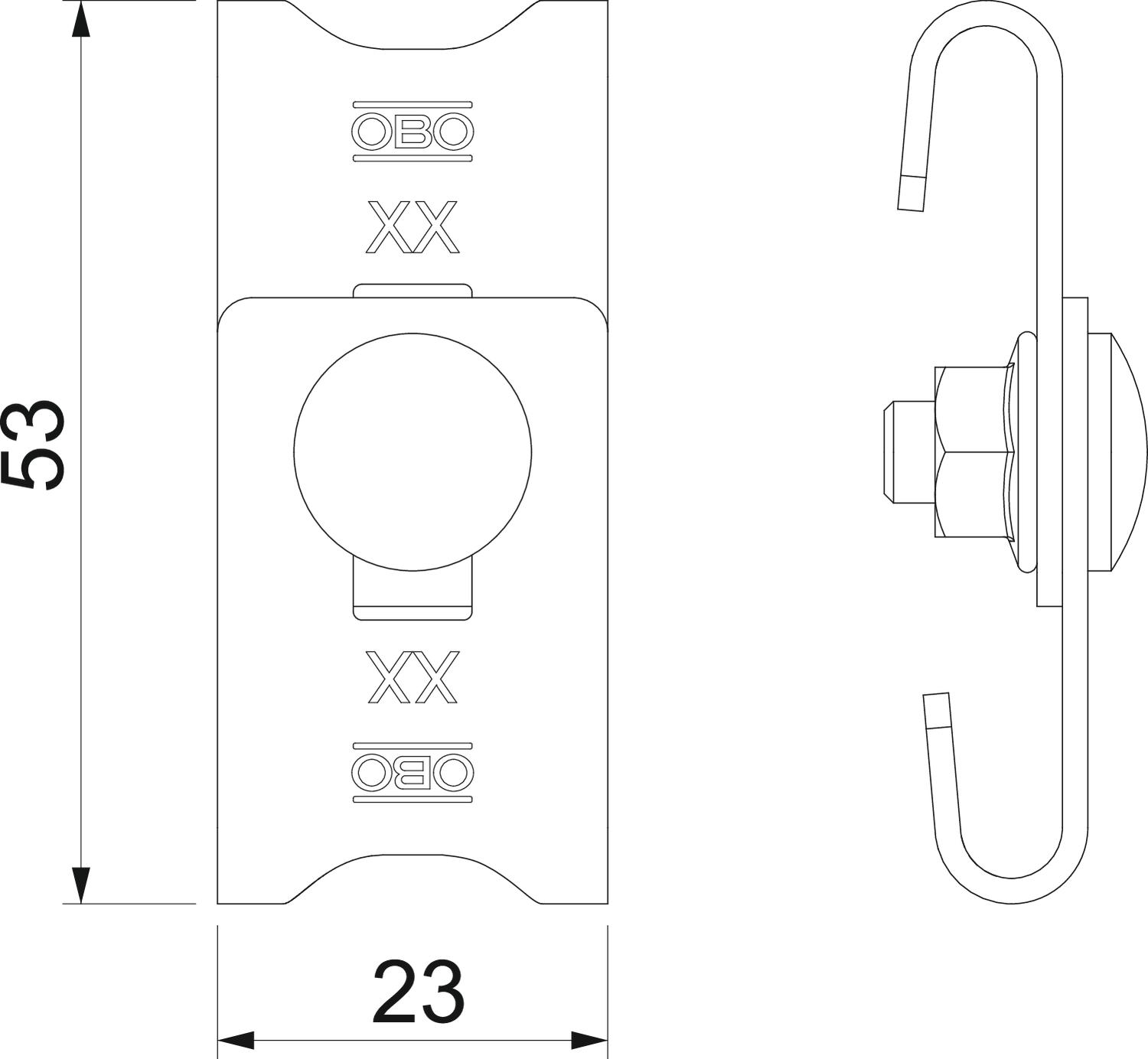

Dimension 42-54 x 23
Height 0,63 in
Height 16 mm
Length 56 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray no
Suitable for mesh cable tray yes
Suitable for mesh cable tray wire, max. 4,9 mm
Suitable for mesh cable tray wire, min. 3,9 mm
Surface Electrogalvanized
Version for Corner connector
Width 0,91 in
Width 23 mm
All types

All types

Types Width Item no. Quantity SSU
GEV 36 G 23 mm 6016715
20 piece
