- Product description
-
Product description

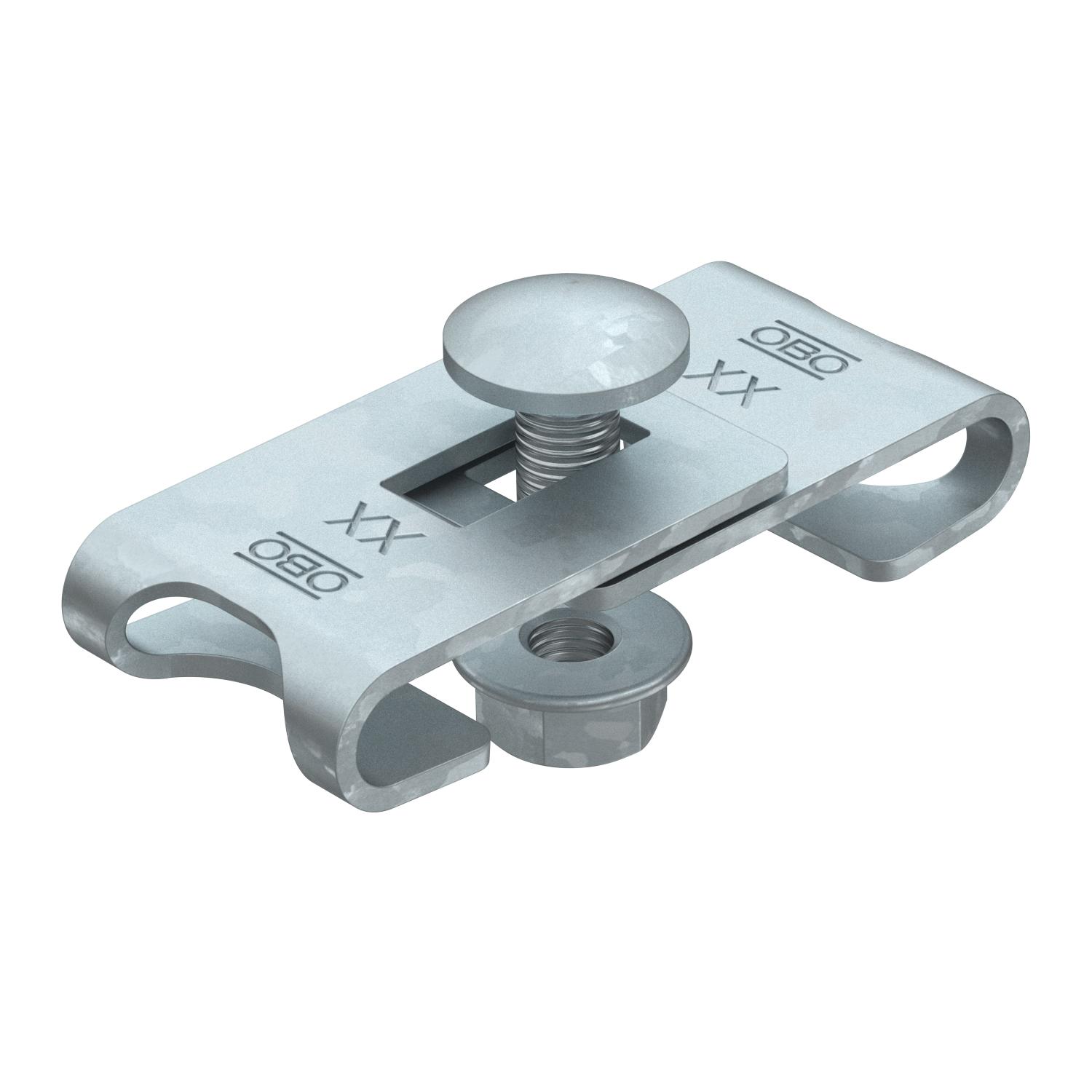

Corner connector for creation of mesh cable tray bend elements of different angles (bend creation on the construction site).
- Technical data
-
Technical data

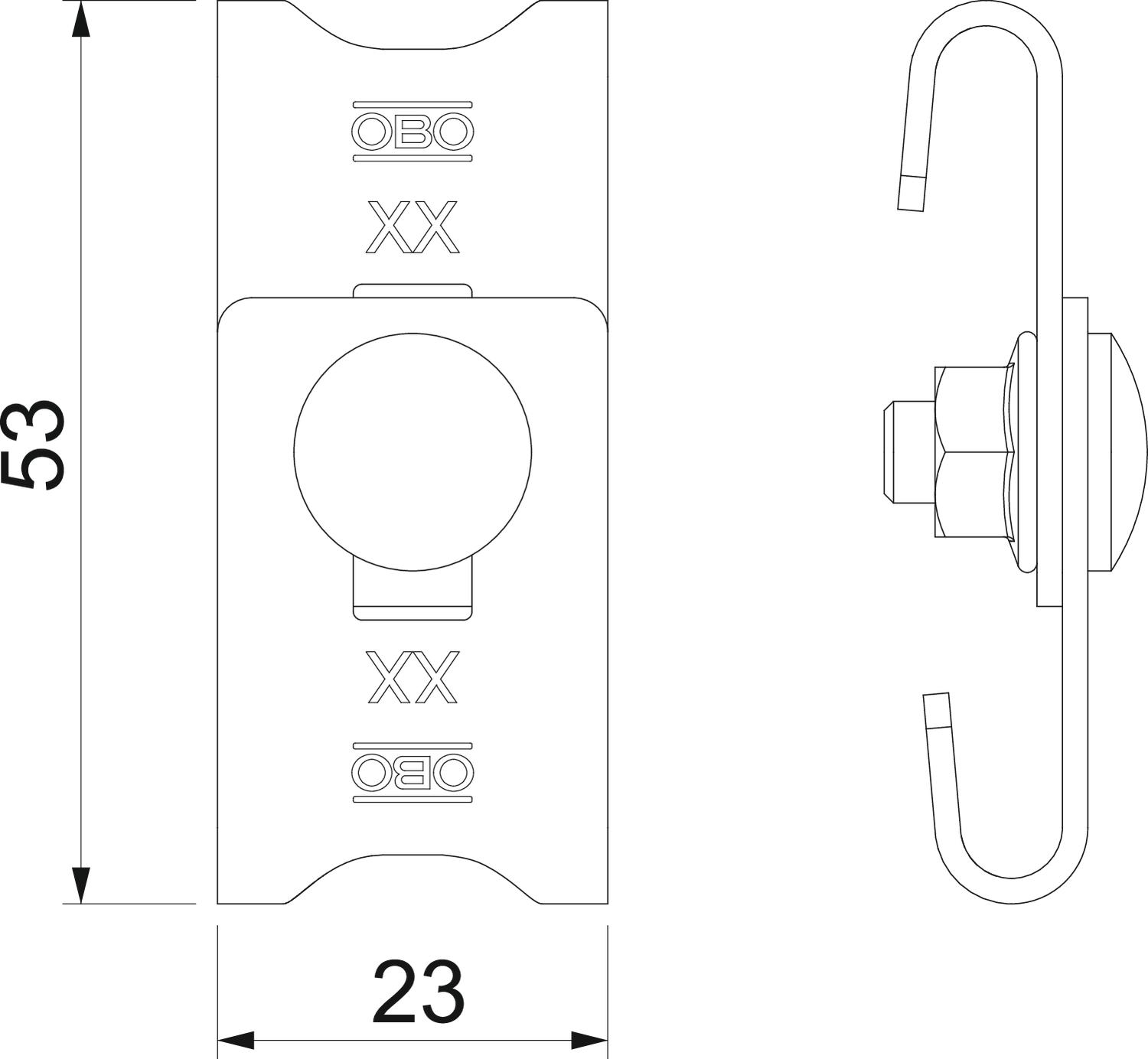

Connection type Screw connector Dimension 42-54 x 23 Height 16 mm Height 0,63 in Length 56 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Suitable for mesh cable tray wire, max. 4,9 mm Suitable for mesh cable tray wire, min. 3,9 mm Surface Hot-dip galvanised Version for Corner connector Width 23 mm Width 0,91 in - All types
- Downloads
-
Catalogue Kabeltragsysteme , 45.23MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
