Corner connector A2
Item no. 6016731 | EAN 4012196013333
- Product description
-

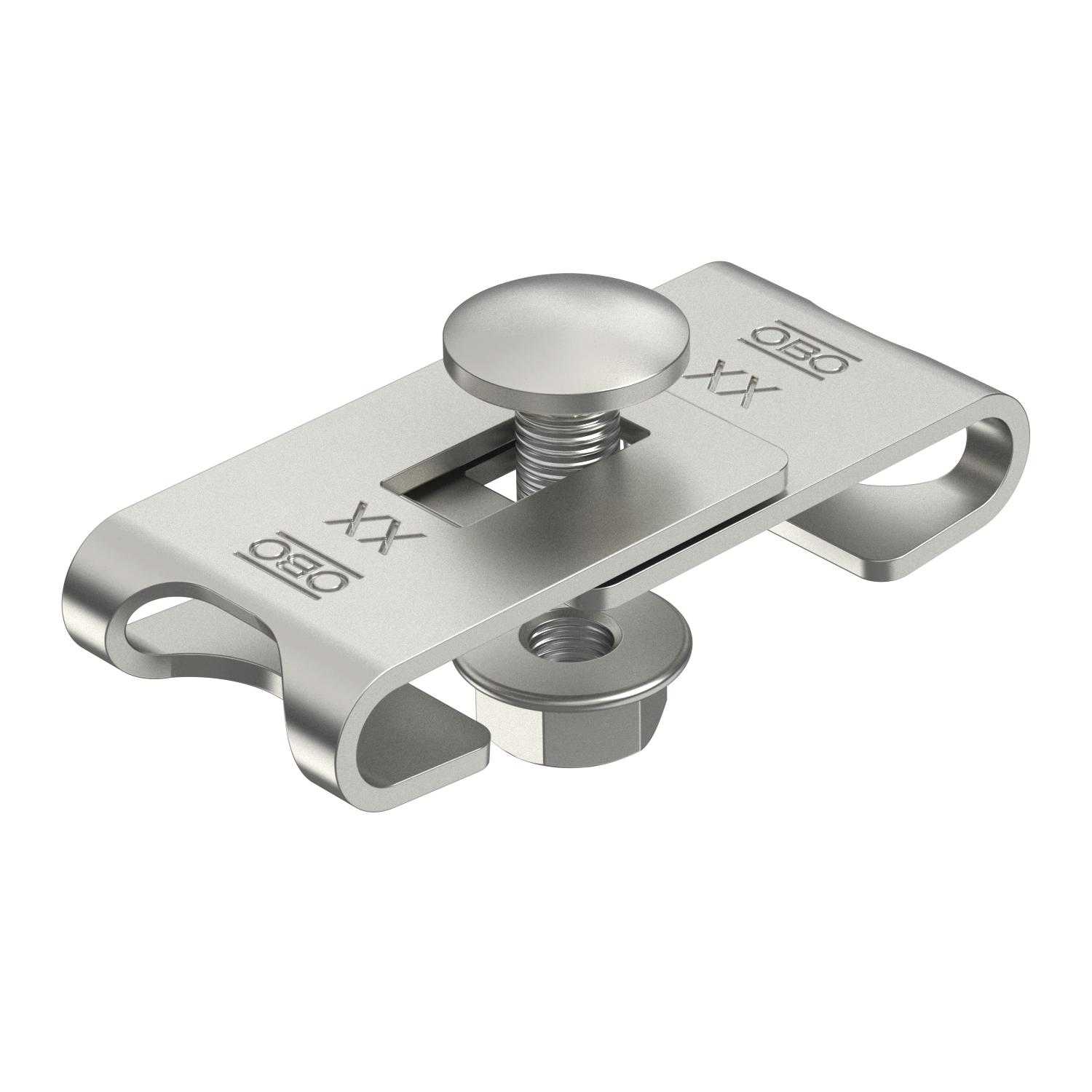

Product descriptionCorner connector for the creation of mesh cable tray bend elements.
-
- Technical data
-
Technical data

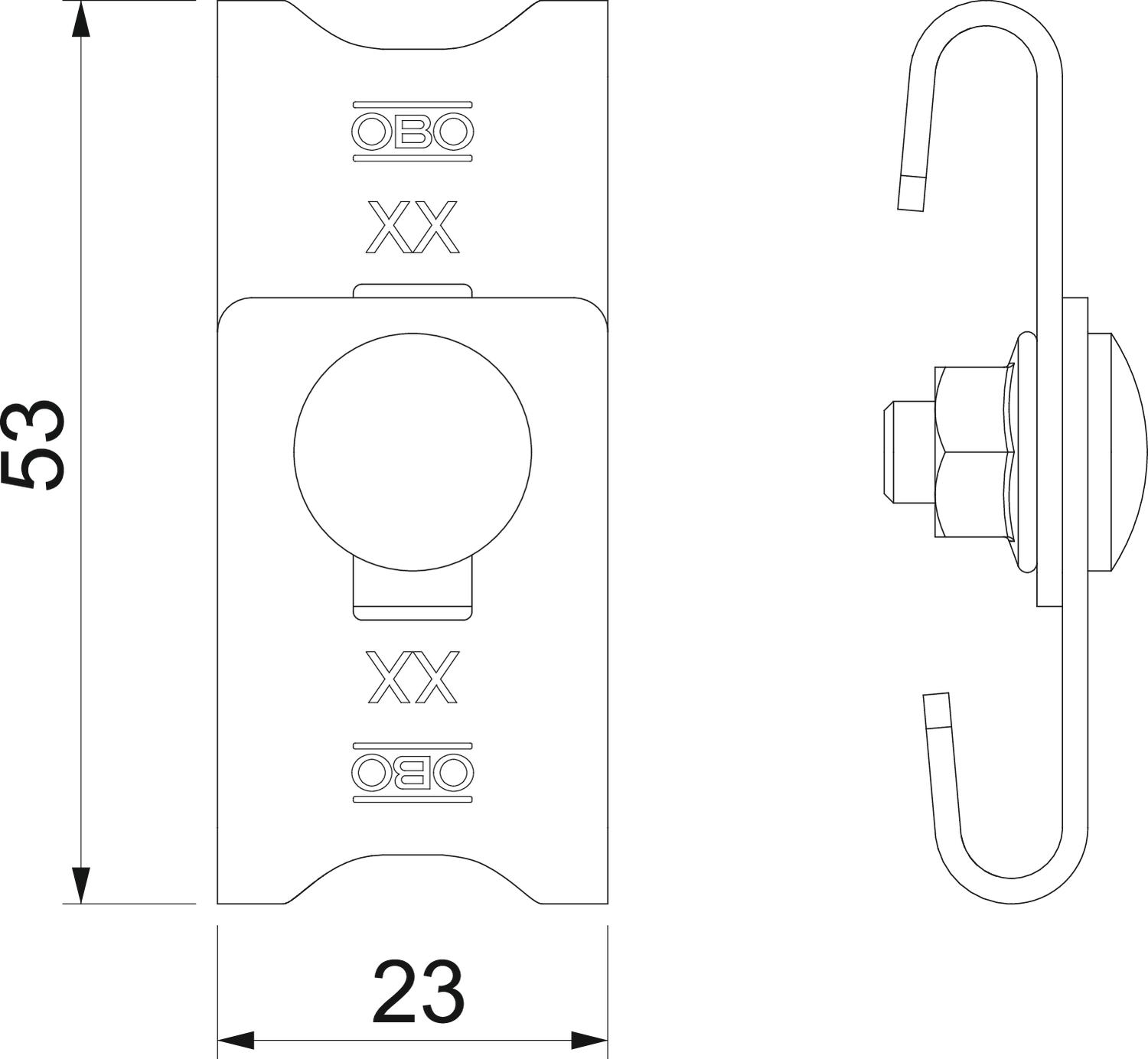

Colour stainless steel Connection type Screw connector Dimension 42-54 x 23 Height 0,63 in Height 16 mm Length 56 mm Maintain electrical functions no Material Stainless steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Suitable for mesh cable tray wire, max. 4,9 mm Suitable for mesh cable tray wire, min. 3,9 mm Surface Bright, treated Version for Corner connector Width 23 mm Width 0,91 in - All types
- Downloads
-
Data sheet GEV 36 A2 / 6016731 , 0.20MB , pdfEU declaration of conformity GEV 36 A2 / 6016731 , 0.10MB , pdfREACH Declaration of conformity GEV 36 A2 / 6016731 , 0.12MB , pdfRoHS Declaration of conformity GEV 36 A2 / 6016731 , 0.12MB , pdf
