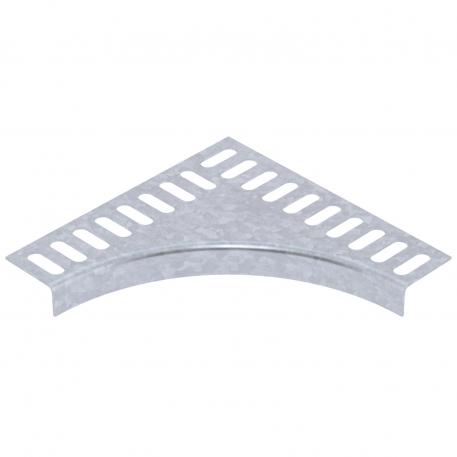

Corner connector 15 |

morepic-1

morepic-2

Corner connector

Item no. 7060041 | EAN 4012196223756

Item no. / Types	7060041 / MKR EV FT

Height	15 mm

Product description

Product description

Corner connector for all cable trays according to the marine standard with side height of 15 mm.

Technical data

Technical data

Dimension	130 x 130
Dimension	130x130
Height	15 mm
Length	130 mm
Material	Steel

Suitable for cable tray system height	15 mm
Surface	Hot-dip galvanised
Version for	Corner connector
Width	130 mm

All types

All types

Types	Height	Item no.	Quantity	SSU
MKR EV FT	15 mm	7060041	piece	1 piece

Downloads

Data sheet MKR EV FT / 7060041 , 0.17MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Solutions for ship construction , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity MKR EV FT / 7060041 , 0.11MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

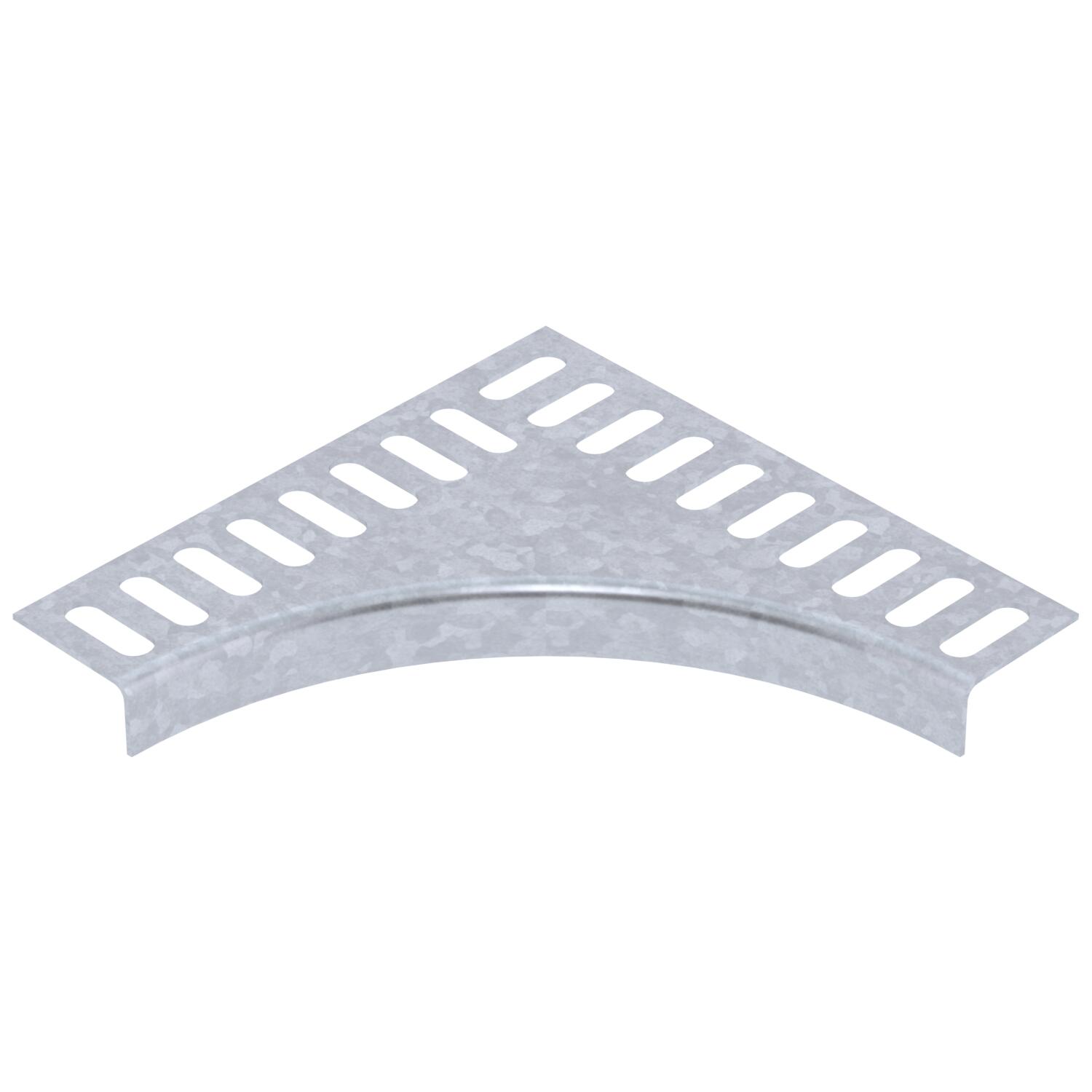

Product graphic MKR EV FT / 7060041, 57.67 kB, jpg

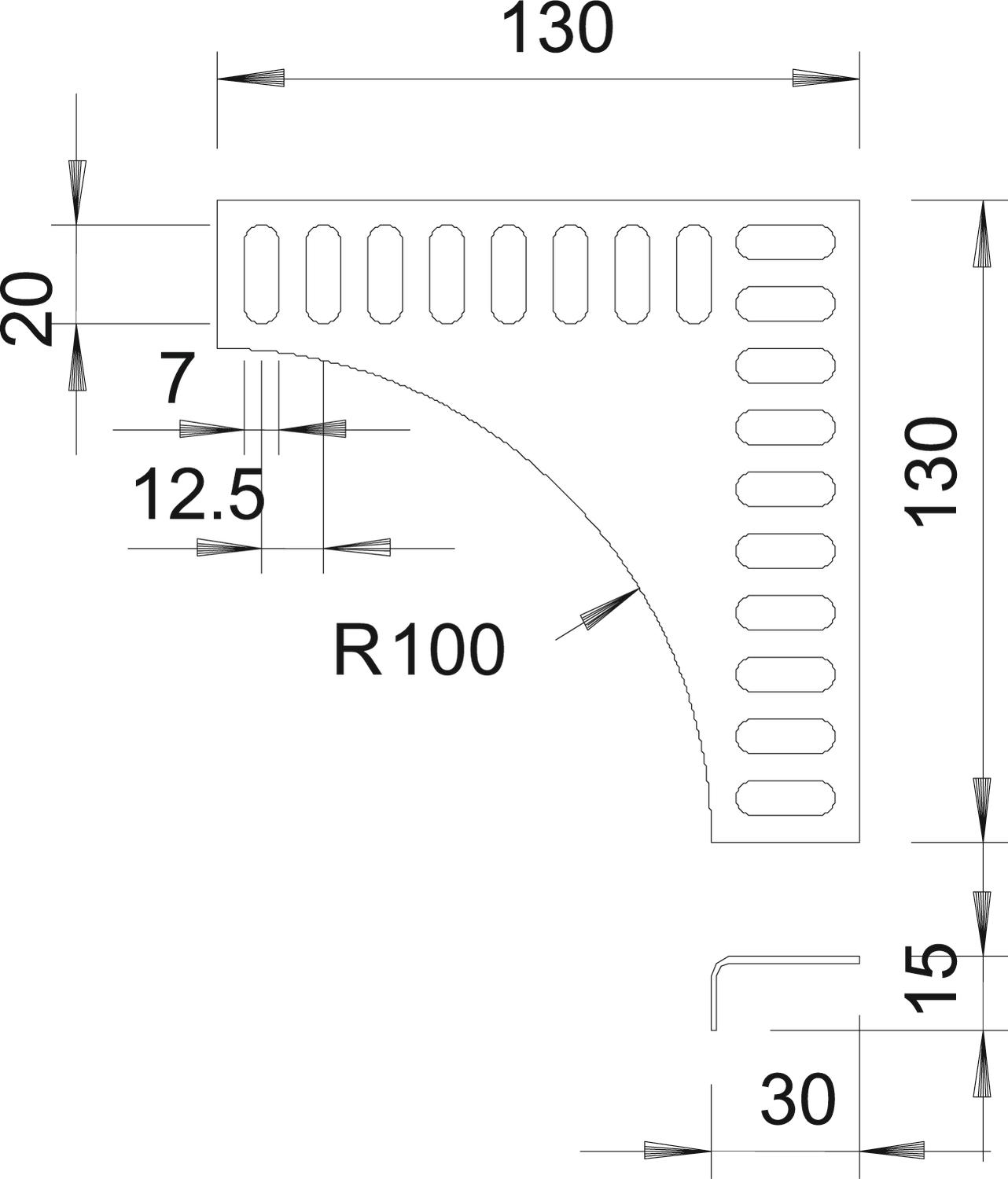

Scale drawing MKR EV FT / 7060041, 75.24 kB, jpg

MKR EV FT / 7060041
