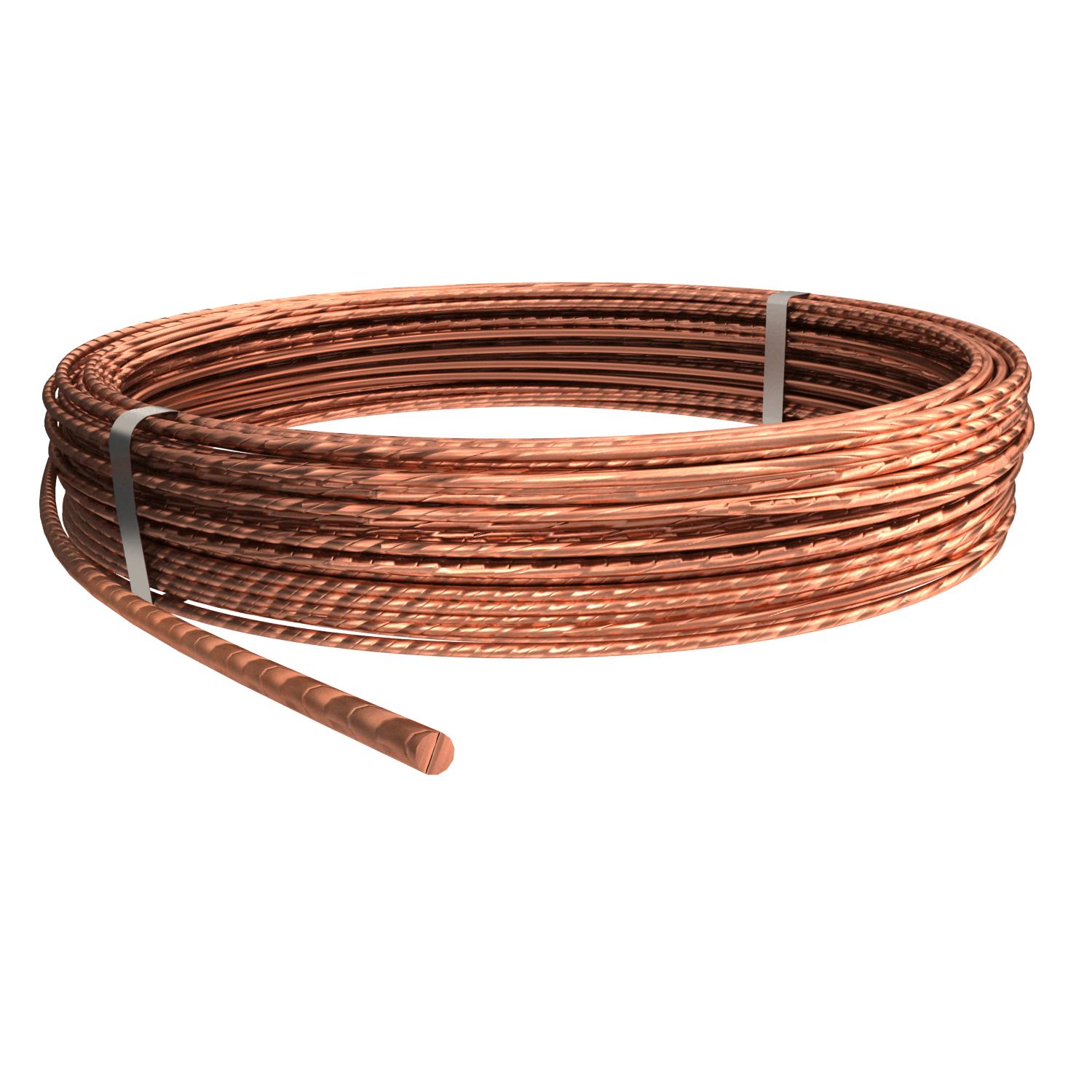

Copper cable Tin-plated
Item no. 5021656 | EAN 4012195938668
- Product description
-
Product description
• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Suitable for earthing heavy current systems > 1 kV to DIN VDE 0101-2
• Type S 11-CU Sn: Tin-plated version
- Technical data
-
Technical data
Cross-section 70 mm² Diameter 10,5 mm Diameter of the individual wires 2,1 mm Dimension 19x2,1mm Lightning protection application no Material Copper Material jacket Without Nomal ring (approx. m) 50 Normal ring (ca. kg) 30 Number of individual wires 19 Surface Tin-plated Dimensions

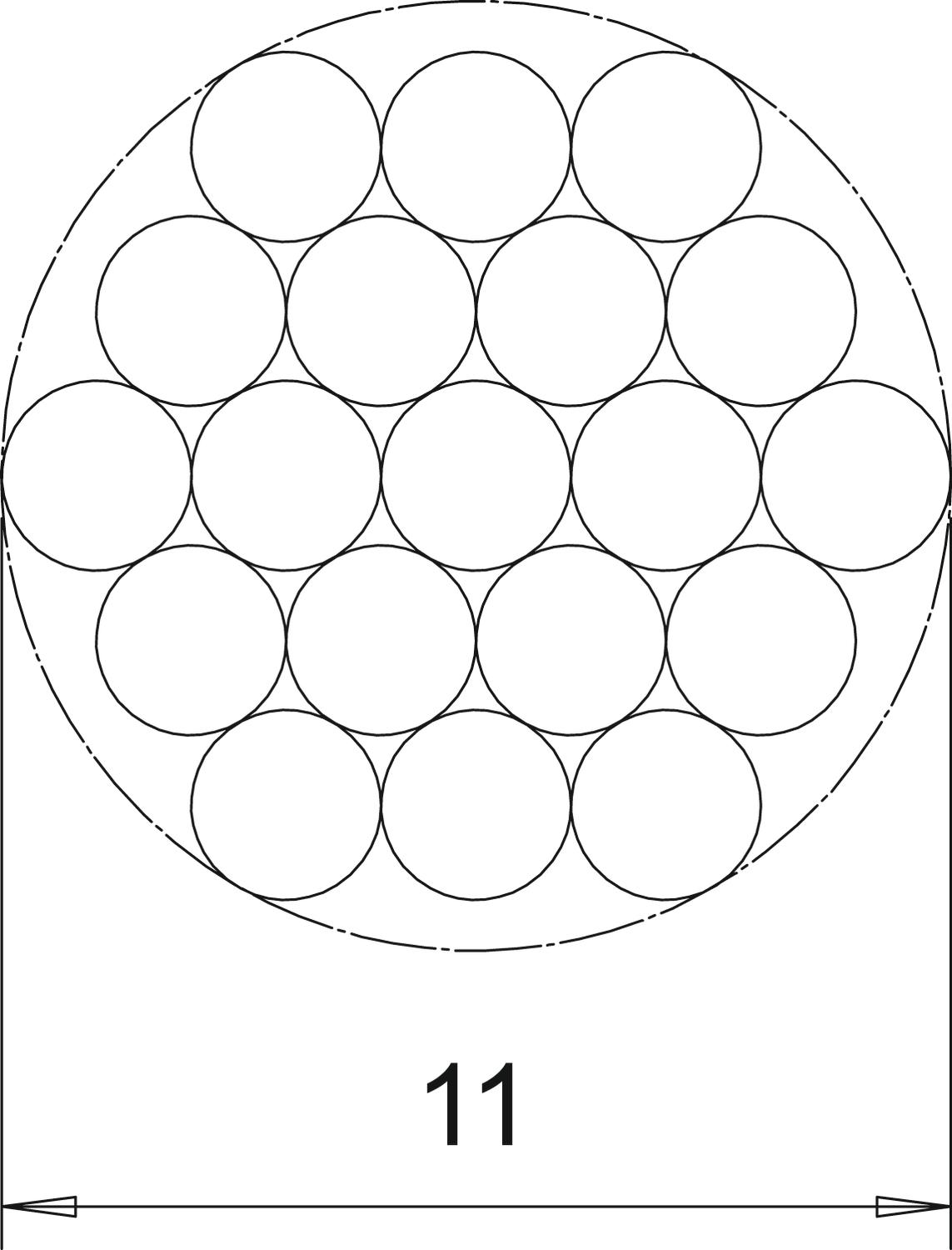

Dimension D 10,5 mm - All types
- Downloads
-
Data sheet S-11-CU SN / 5021656 , 0.22MB , pdf
