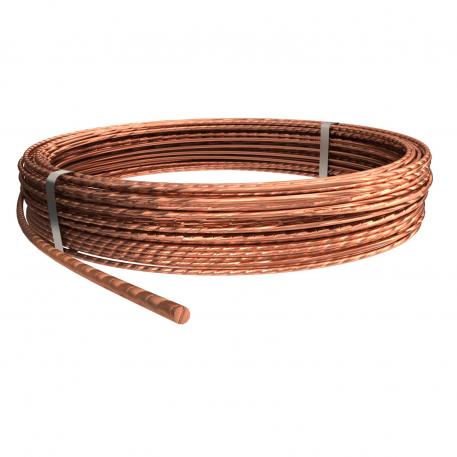

Copper cable
Item no. 5021654 | EAN 4012195836209
- Product description
-
Product description
• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Suitable for earthing heavy current systems > 1 kV to DIN VDE 0101-2
• Type S 11-CU Sn: Tin-plated version
- Technical data
-
Technical data
Cross-section 70 mm² Diameter 10,5 mm Diameter of the individual wires 2,1 mm Dimension 19x2,1mm Dimension D 10,5 mm Length 50000 mm Lightning protection application no Material Copper Material jacket Without Nomal ring (approx. m) 50 Normal ring (ca. kg) 30 Number of individual wires 19 - All types
- Downloads
-
Data sheet S 11-CU / 5021654 , 0.20MB , pdf
