Note: This article is discontinued.

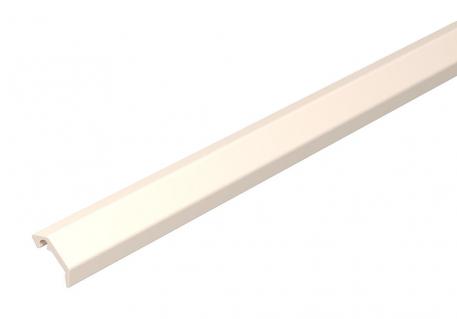

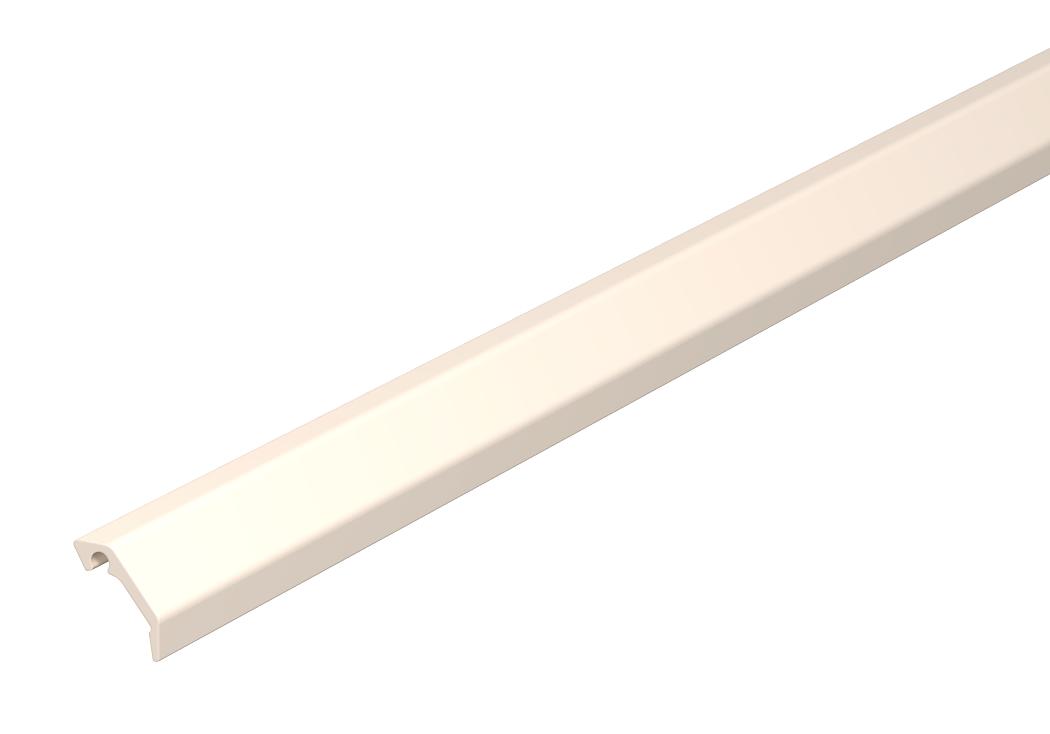

Convection grid profile

Item no. 6287701 | EAN 4012195146582

Item no. / Types

Length

Colour

Product description

Product description

Sloping convection grid, for optically attractive closing of spaces between the device installation trunking and the wall. The convection grid profiles are suitable for horizontal and vertical mounting.

Technical data

Technical data

Colour	Cream; RAL 9001
Dimension	20x22x2000mm

Halogen-free	yes
Material	Aluminium

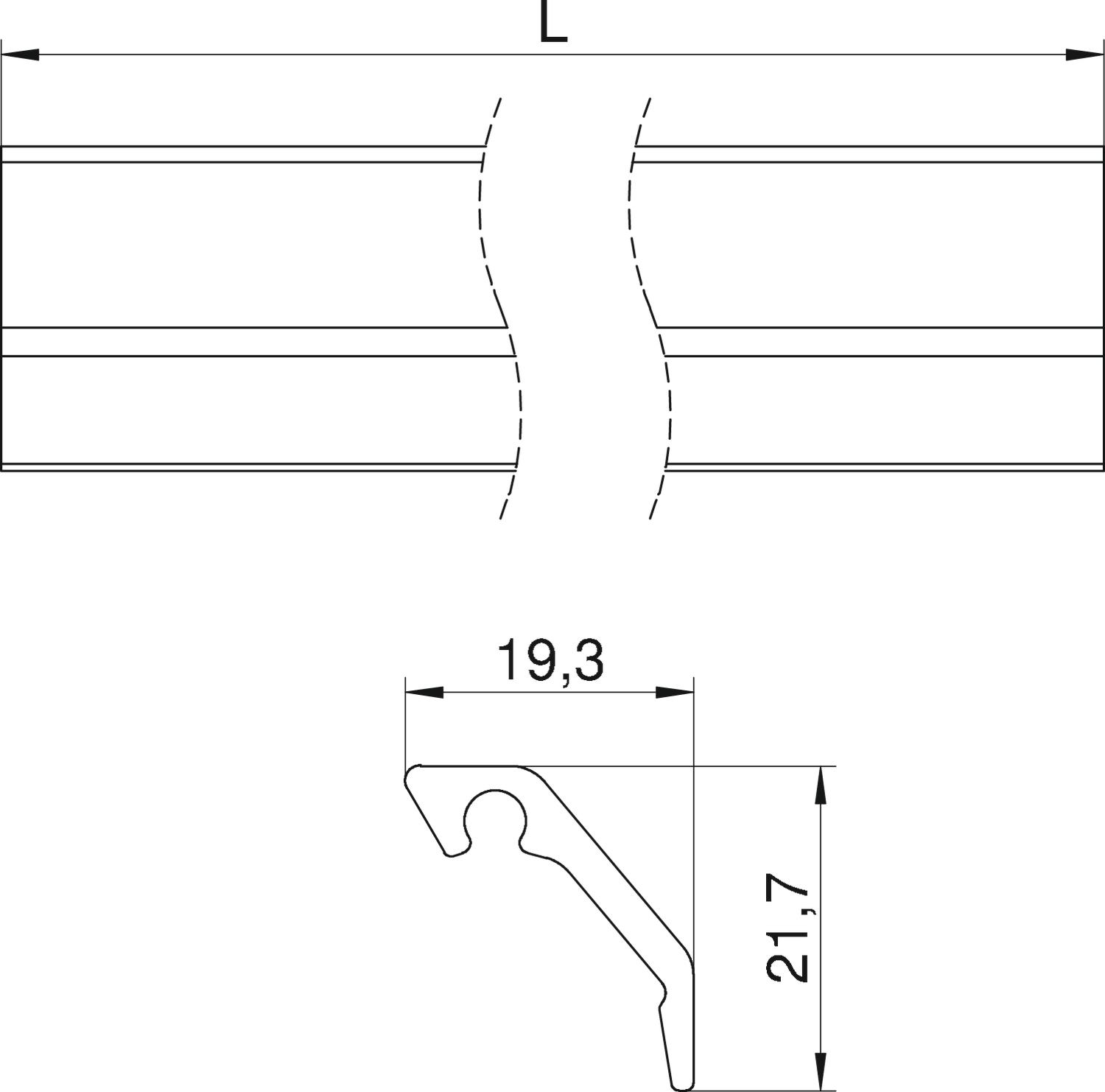

Dimensions

Height	21,7 mm
Length	2000 mm

Width	19,3 mm

All types

All types

Types	Length	Colour	Item no.	Quantity	SSU
KG2RW 2000	2000 mm	Pure white; RAL 9010	6287700	m	2 m
KG2CW	2000 mm	Cream; RAL 9001	6287701	m	2 m
KG2LGR	2000 mm	Light grey; RAL 7035	6287702	m	2 m
KG2RW 3000	3000 mm	Pure white; RAL 9010	6287710	m	3 m
KG2EL 3000	3000 mm	-	6287723	m	3 m
KG2EL 2000	2000 mm	-	6287733	m	2 m
