Control T piece without thread

Item no. / Types

Dimension D

Dimension L

Size

Product description

Product description

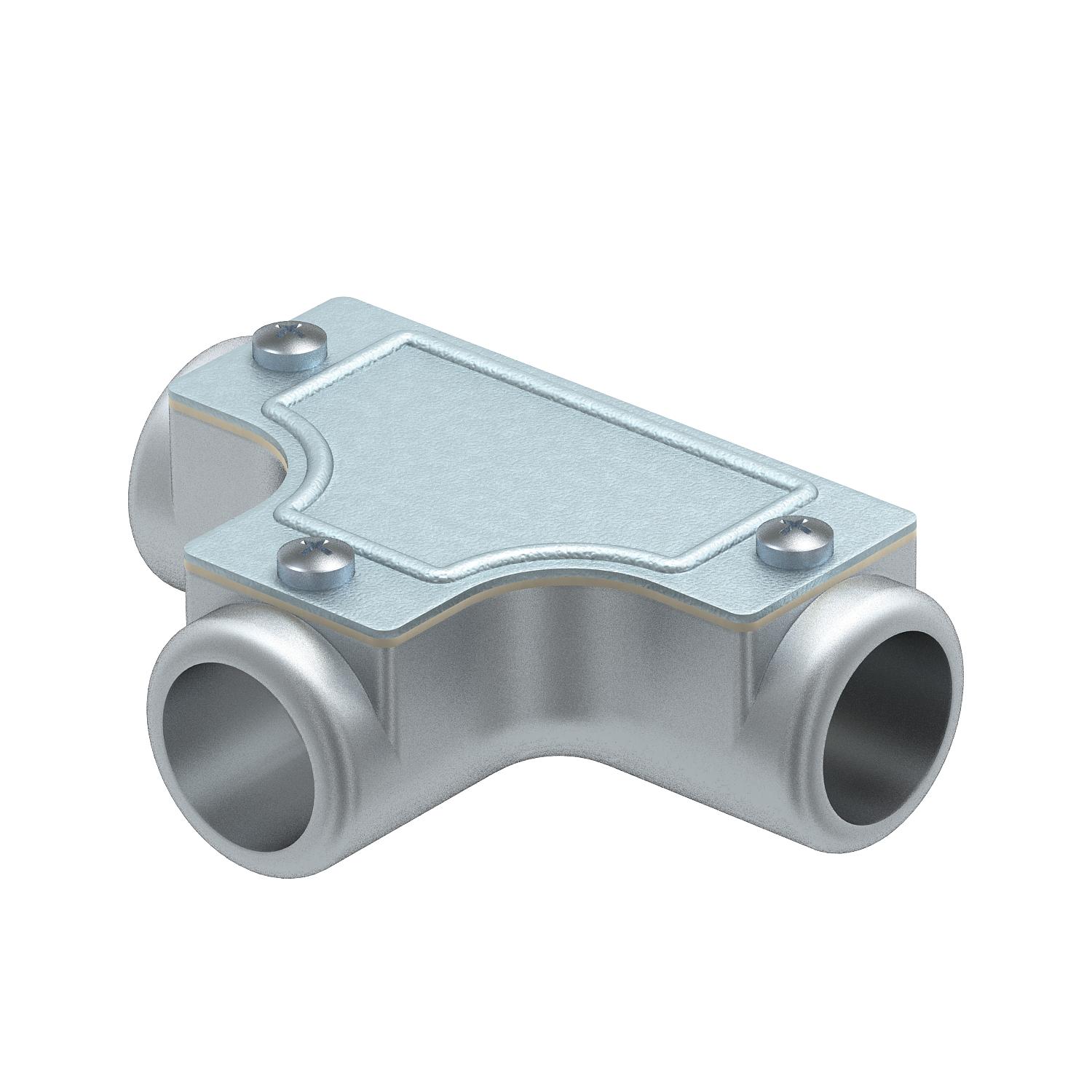

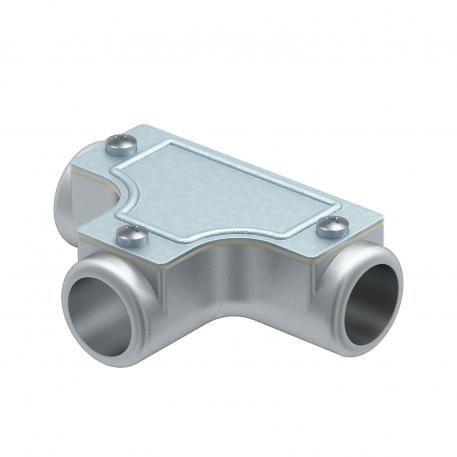

Die-cast aluminium T piece, for mounting in pipe sections as a junction.

Removable cover for easier cable routing and later checking.

Technical data

All types

All types

Types	Dimension D	Dimension L	Size	Item no.	Quantity	SSU

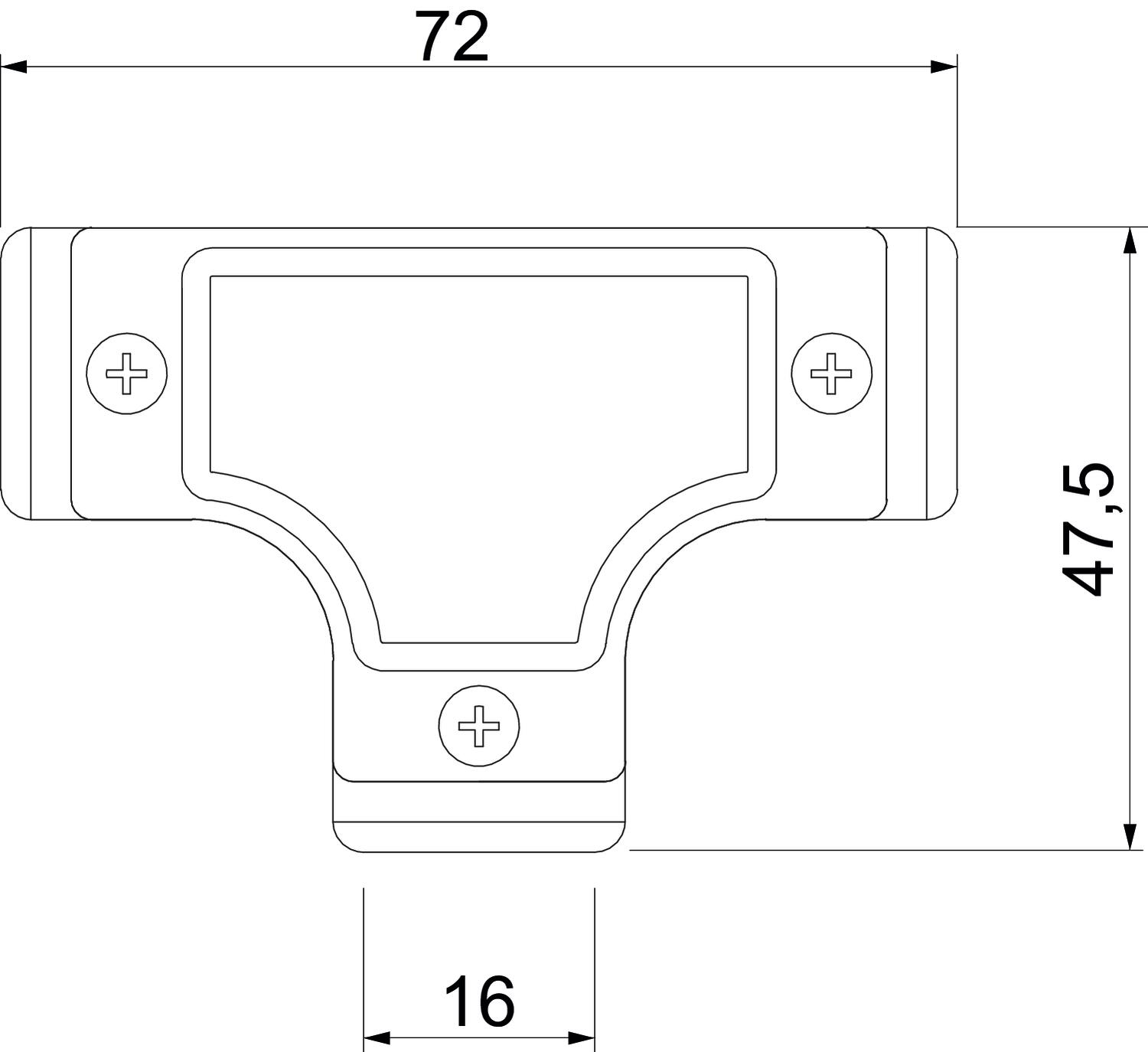

SKT16W ALU	47.5 mm	72 mm	16	2047588	piece	5 piece
SKT20W ALU	65 mm	102 mm	20	2047589	piece	5 piece
SKT25W ALU	75 mm	115 mm	25	2047590	piece	5 piece
SKT32W ALU	96 mm	156 mm	32	2047591	piece	4 piece
SKT40W ALU	96 mm	156 mm	40	2047592	piece	4 piece
SKT50W ALU	124.5 mm	194 mm	50	2047593	piece	2 piece
