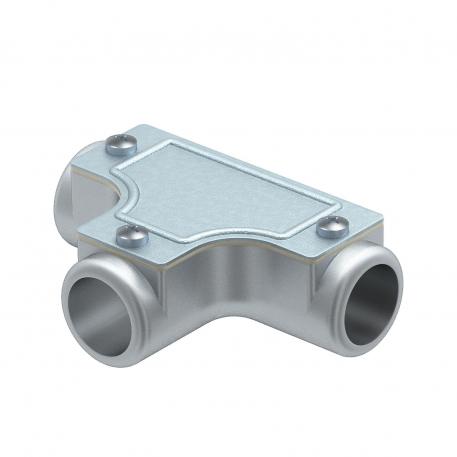

Control T piece without thread

Item no. 2047593 | EAN 4012195957843

Product description
Product description

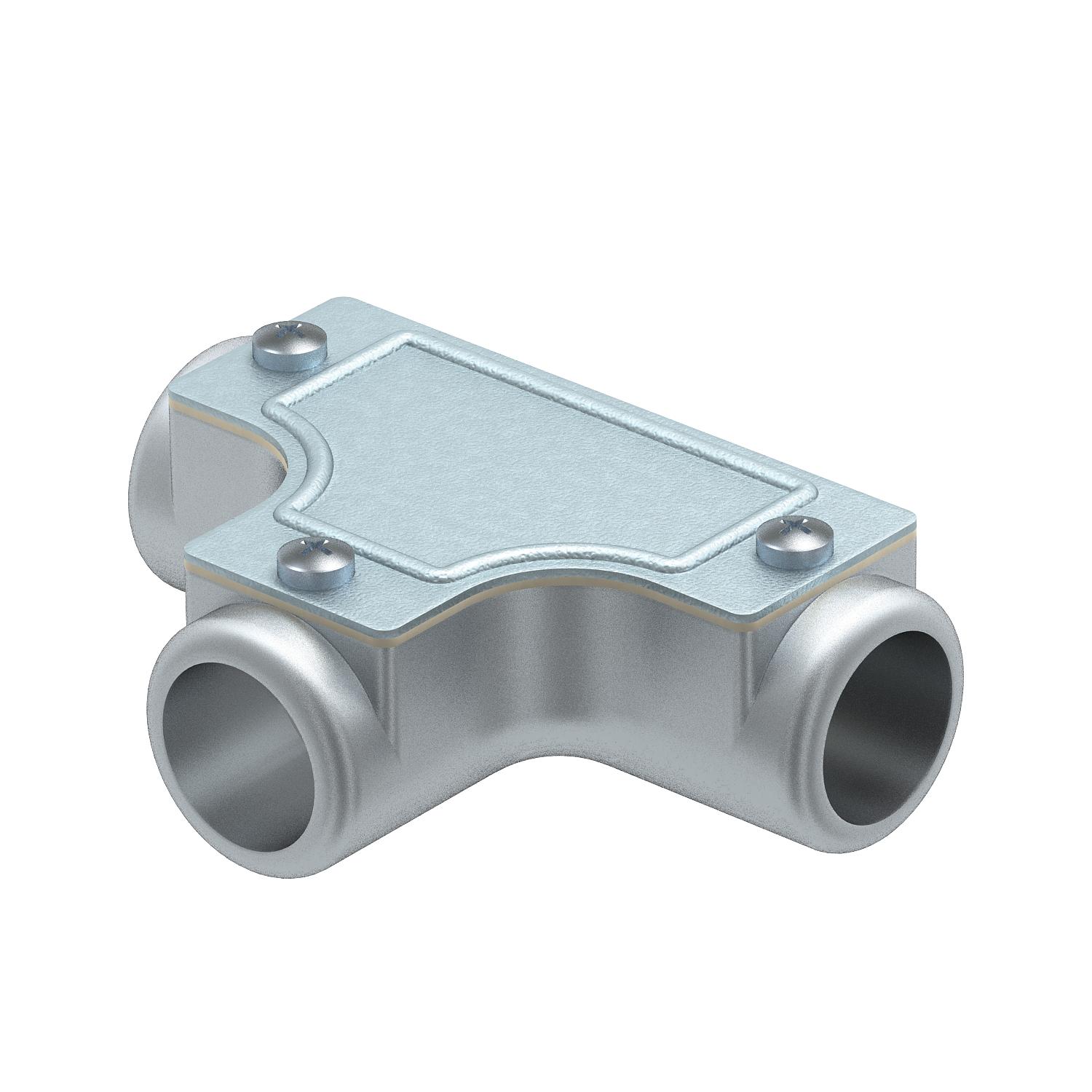

Die-cast aluminium T piece, for mounting in pipe sections as a junction.

Removable cover for easier cable routing and later checking.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
Technical data

Technical data

Brushed surface no

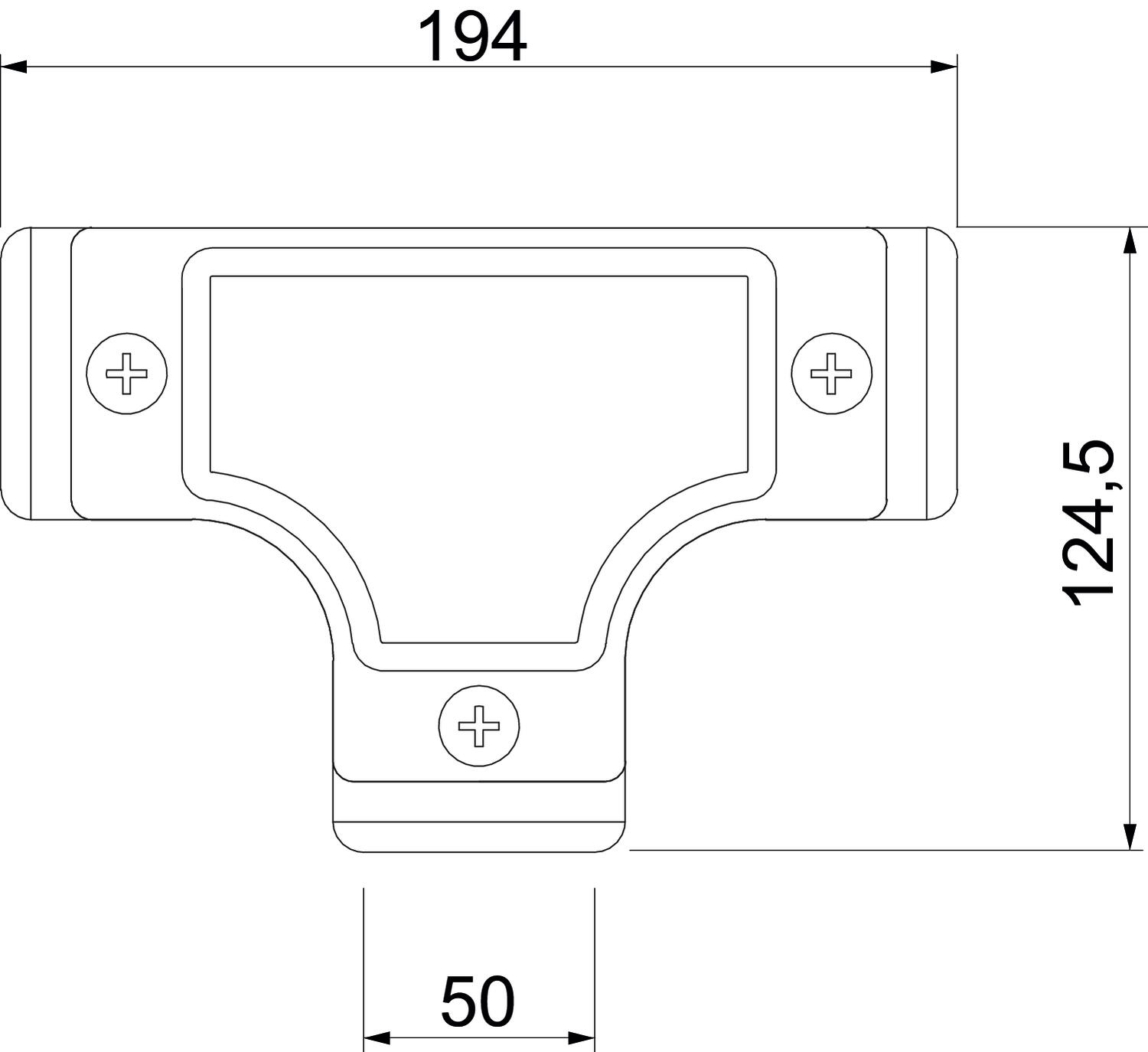

Dimension Ø50mm
Dimension D 124,5 mm
Dimension L 194 mm
Dimension l 50 mm
Dimension m (mm) 50
Halogen-free no
Length 194 mm
Material Cast aluminium
Polished surface no
Size 50
Version for Connector
All types

All types

Types Dimension D Dimension L Size Item no. Quantity SSU
SKT16W ALU 47.5 mm 72 mm 16 2047588
5 piece
SKT20W ALU 65 mm 102 mm 20 2047589
5 piece
SKT25W ALU 75 mm 115 mm 25 2047590
5 piece
SKT32W ALU 96 mm 156 mm 32 2047591
4 piece
SKT40W ALU 96 mm 156 mm 40 2047592
4 piece
SKT50W ALU 124.5 mm 194 mm 50 2047593
2 piece
