Control T piece with thread 96 | 156 | 40

Control T piece with thread

Item no. 2047608 | EAN 4012195957775

Item no. / Types

Dimension D

Dimension L

Size

Product description

Product description

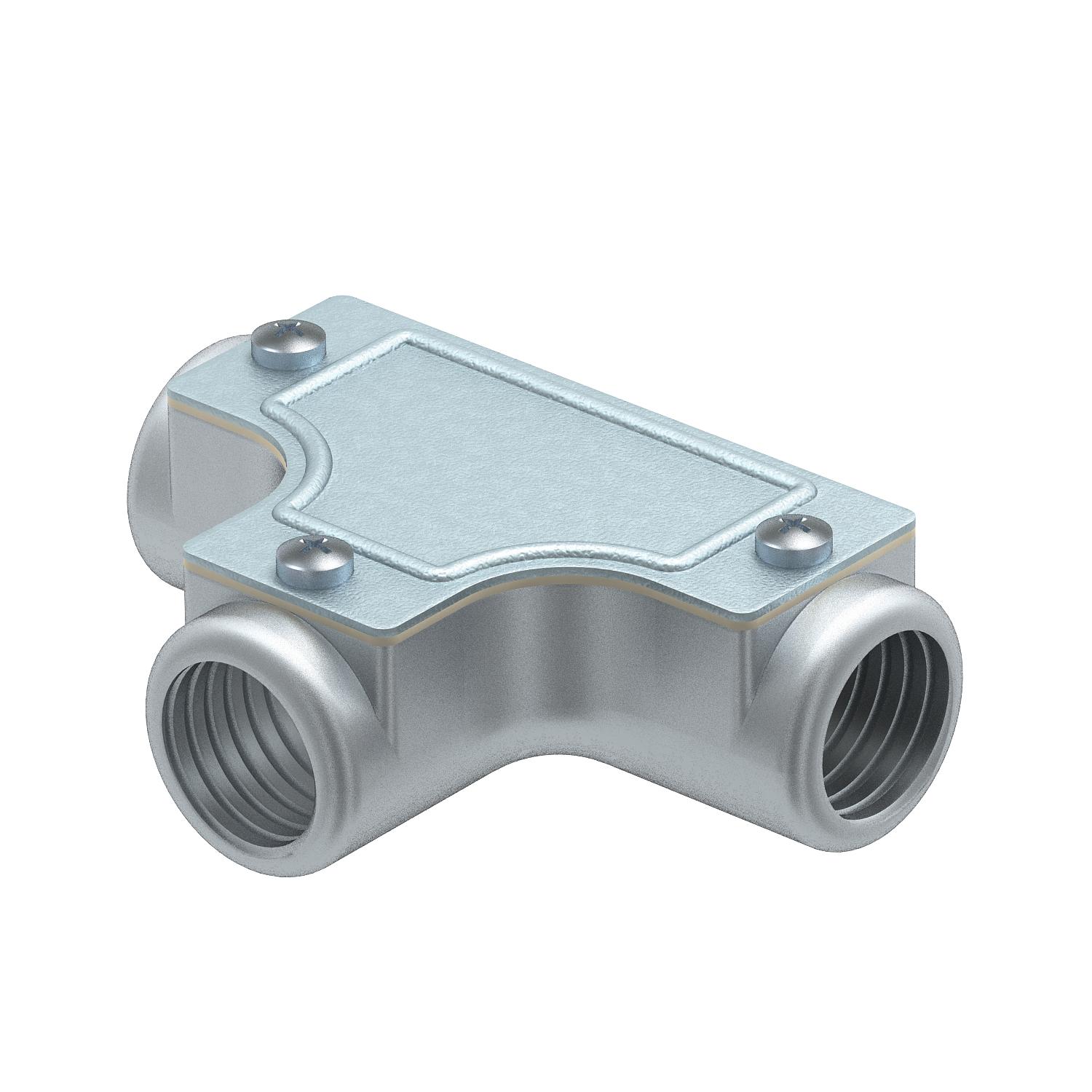

Die-cast aluminium T piece, with internal thread, for mounting in pipe sections as a junction.

Removable cover for easier cable routing and later checking.

Technical data

Technical data

Brushed surface	no
Dimension	M40x1,5
Halogen-free	no
Material	Cast aluminium

Polished surface	no
Size	40
Thread	M40x1,5
Version for	Thread

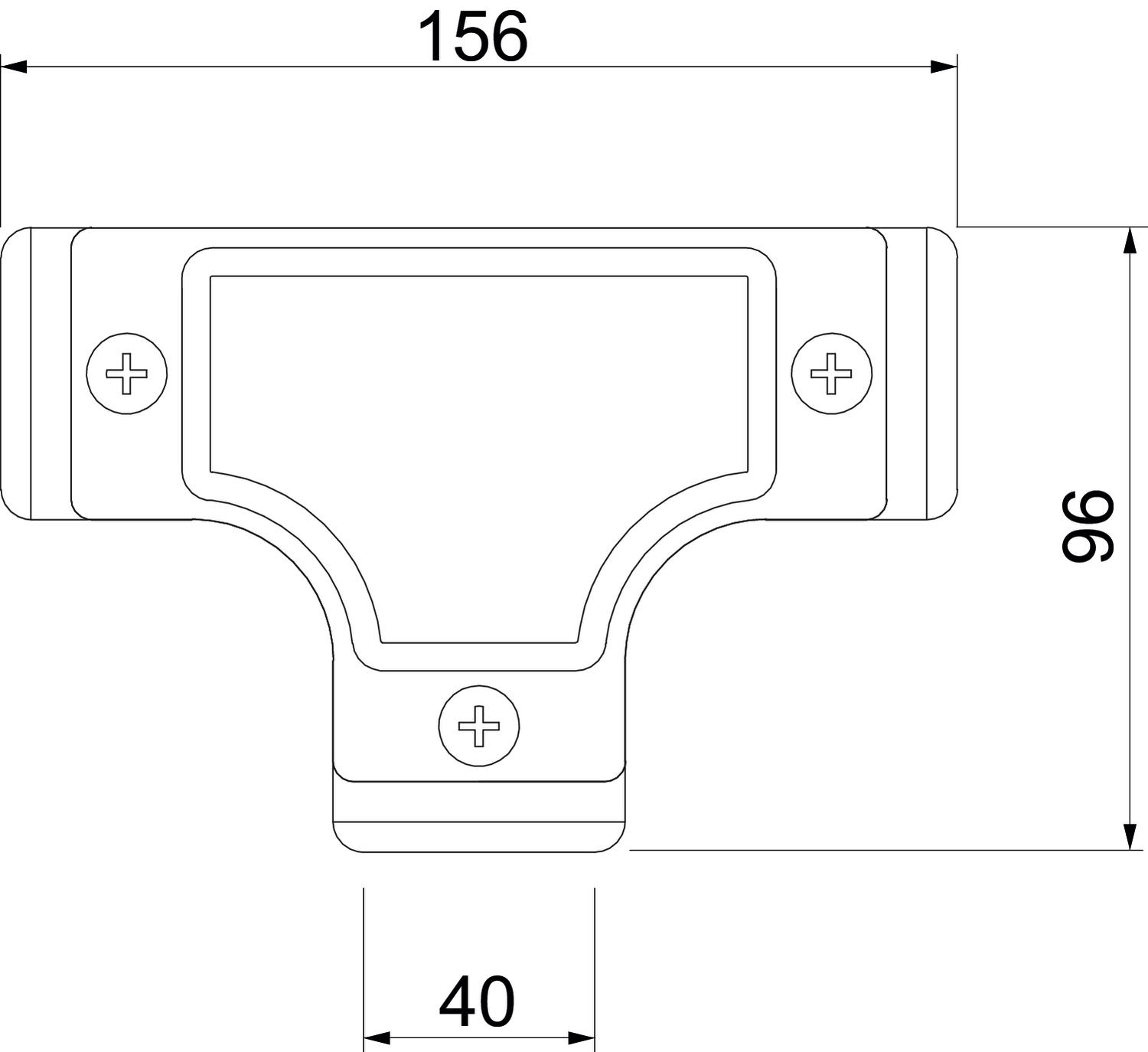

Dimensions

Dimension D	96 mm
Dimension L	156 mm

Dimension m (mm)	M40x1,5
Length	156 mm

All types

All types

Types	Dimension D	Dimension L	Size	Item no.	Quantity	SSU
SKTM16W ALU	47.5 mm	72 mm	16	2047604	piece	5 piece
SKTM20W ALU	65 mm	102 mm	20	2047605	piece	5 piece
SKTM25W ALU	75 mm	115 mm	25	2047606	piece	5 piece
SKTM32W ALU	96 mm	156 mm	32	2047607	piece	4 piece
SKTM40W ALU	96 mm	156 mm	40	2047608	piece	4 piece
SKTM50W ALU	124.5 mm	194 mm	50	2047609	piece	2 piece
