Control T piece with thread

Item no. 2047605 | EAN 4012195957744

Product description
Product description

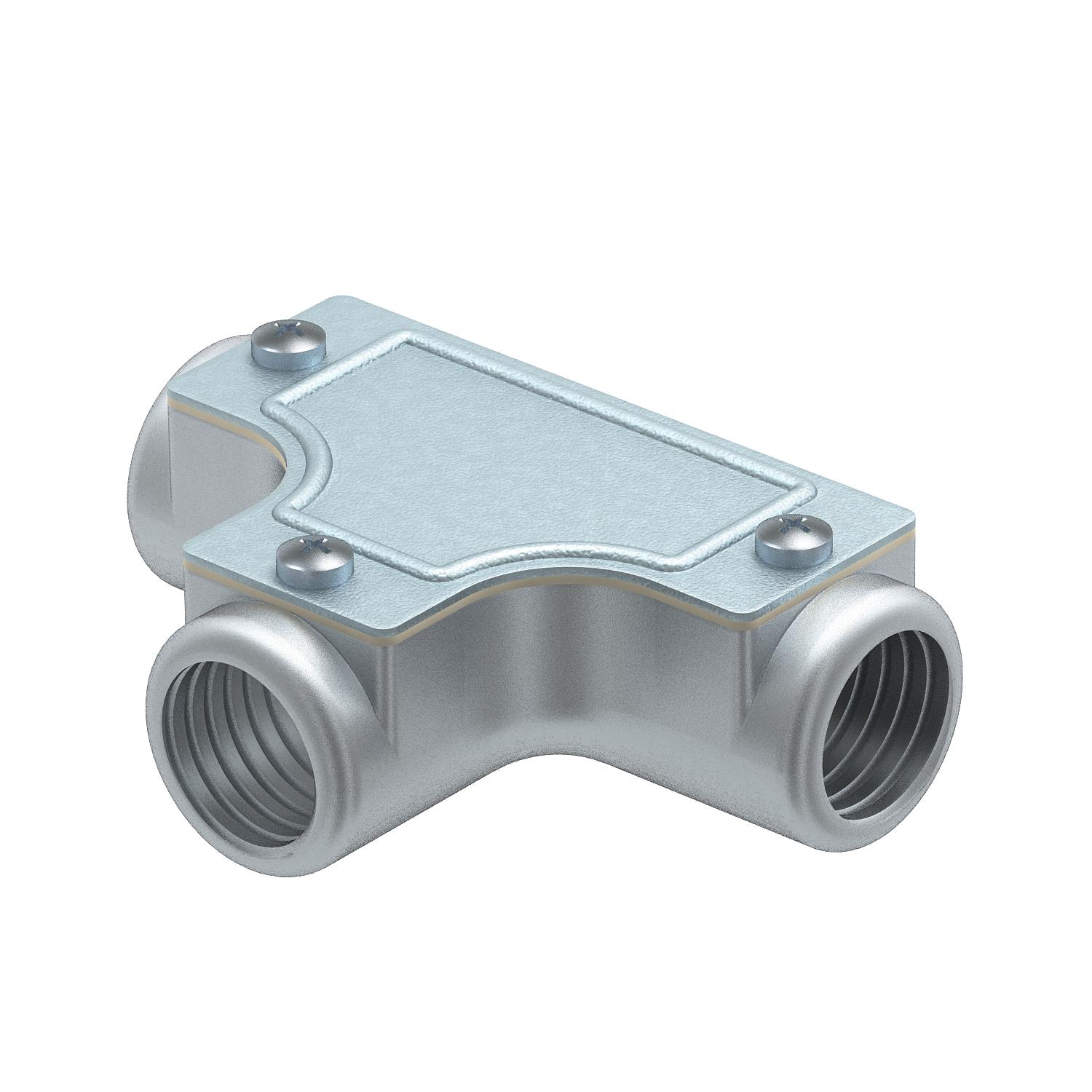

Die-cast aluminium T piece, with internal thread, for mounting in pipe sections as a junction.

Removable cover for easier cable routing and later checking.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Protection rating IP 54
Technical data

Technical data

Brushed surface no

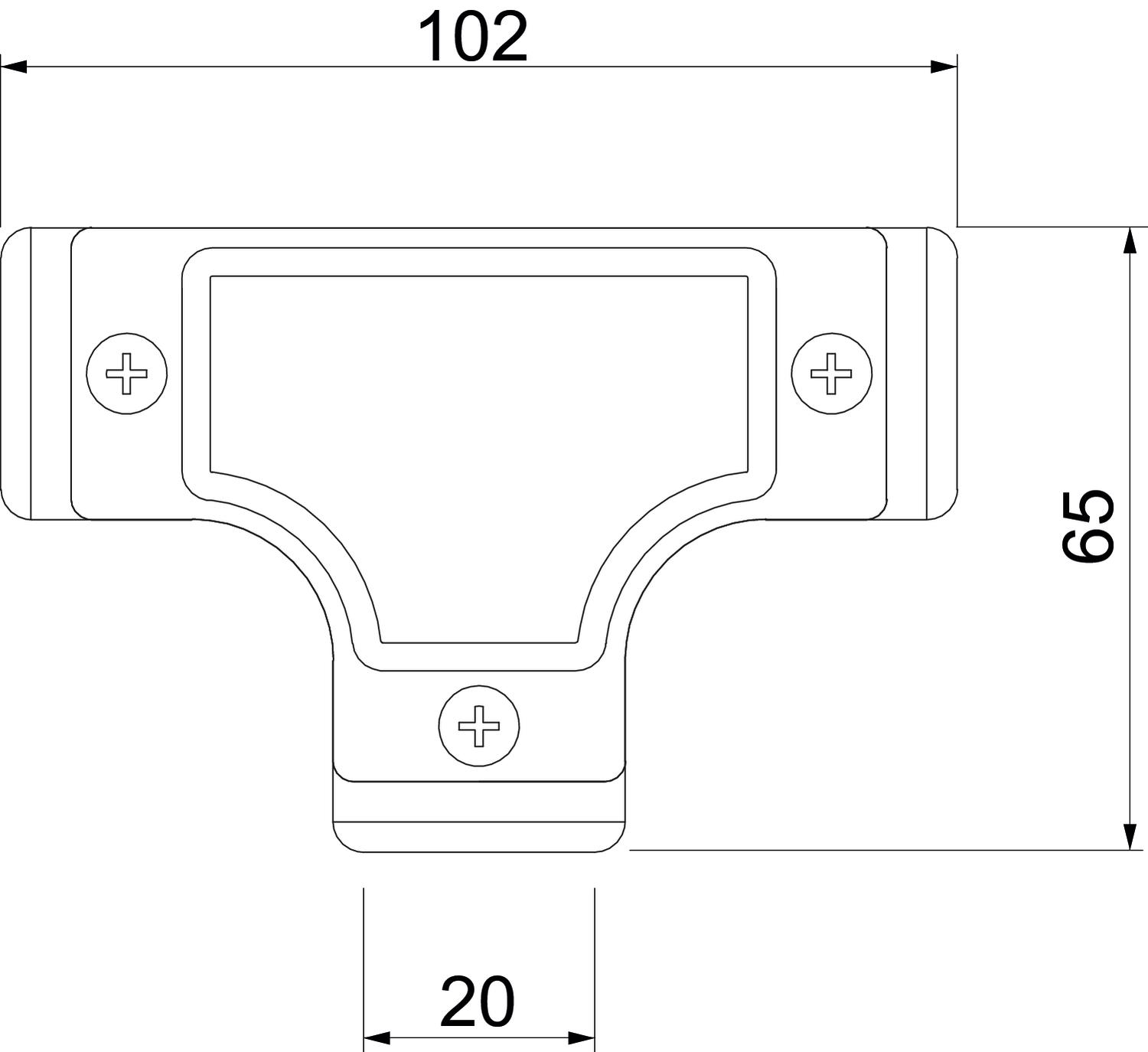

Dimension M20x1,5
Dimension D 65 mm
Dimension L 102 mm
Dimension m (mm) M20x1,5
Halogen-free no
Length 102 mm
Material Cast aluminium
Polished surface no
Size 20
Thread M20x1,5
Version for Thread
All types

All types

Types Dimension D Dimension L Size Item no. Quantity SSU
SKTM16W ALU 47.5 mm 72 mm 16 2047604
5 piece
SKTM20W ALU 65 mm 102 mm 20 2047605
5 piece
SKTM25W ALU 75 mm 115 mm 25 2047606
5 piece
SKTM32W ALU 96 mm 156 mm 32 2047607
4 piece
SKTM40W ALU 96 mm 156 mm 40 2047608
4 piece
SKTM50W ALU 124.5 mm 194 mm 50 2047609
2 piece
