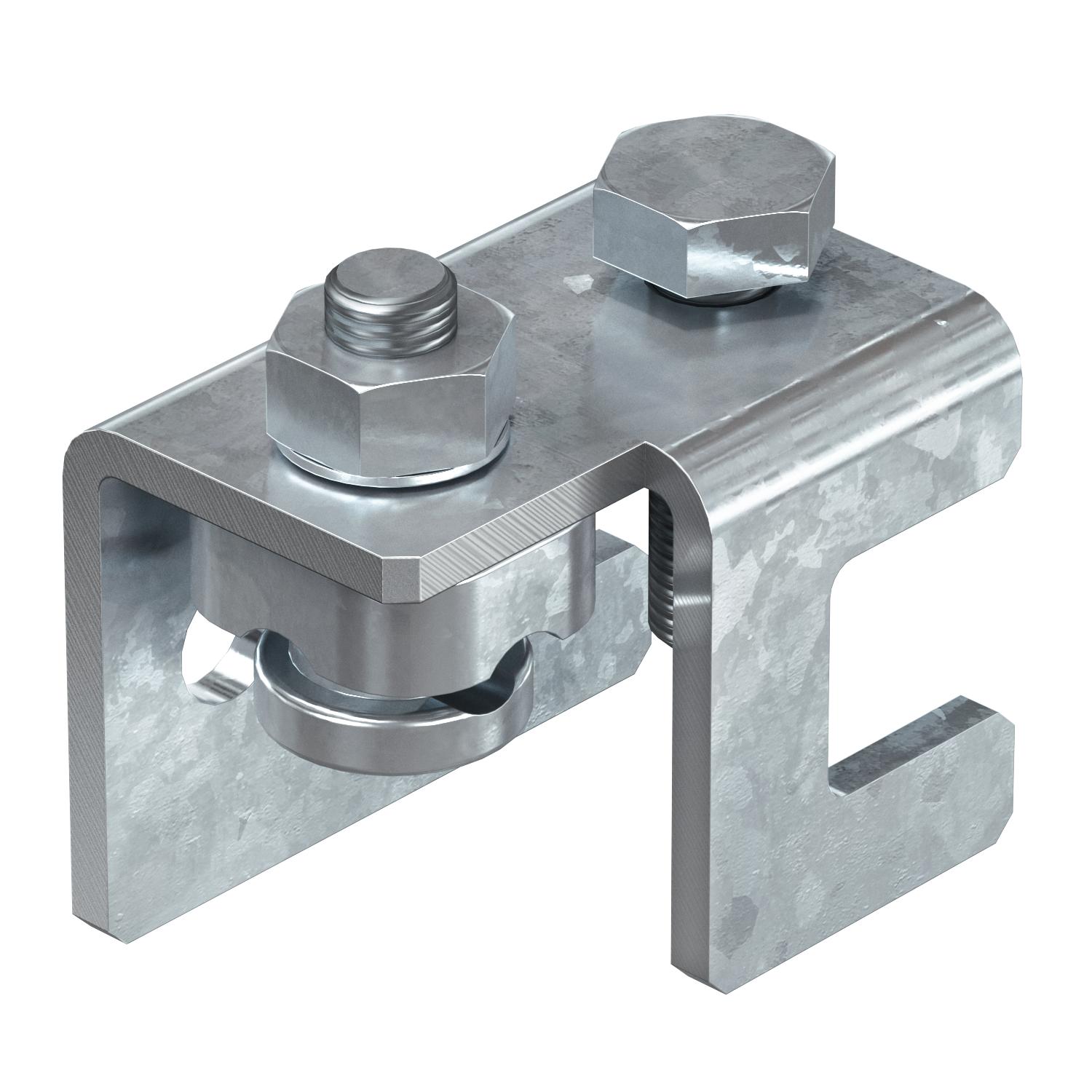

Construction clamp to 20 mm
Item no. 5304520 | EAN 4012195503057
- Product description
-
Product description
• Mounting of the round conductor possible vertically or transverse to construction
• For fastening to constructions up to a flange thickness of 20 mm
• Fastening to constructions using a hexagonal bolt M10
• Meets the requirements of VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
Clamping range, max. 20 mm Clamping range, min. 4 mm Dimension 20mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material Steel Suitable for connection Miscellaneous Surface Hot-dip galvanised Type of connector Construction clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 5010 20 FT / 5304520 , 0.32MB , pdfDeclaration of conformity 5010 20 FT / 5304520 , 0.06MB , pdf
