Construction and suspension profile FESP Q SG

Item no. 7104358 | EAN 4012195705536

Item no. / Types	7104358 / FESP Q 40 5 SG

Length	3000 mm

Plate thickness	5 mm

Product description

Product description

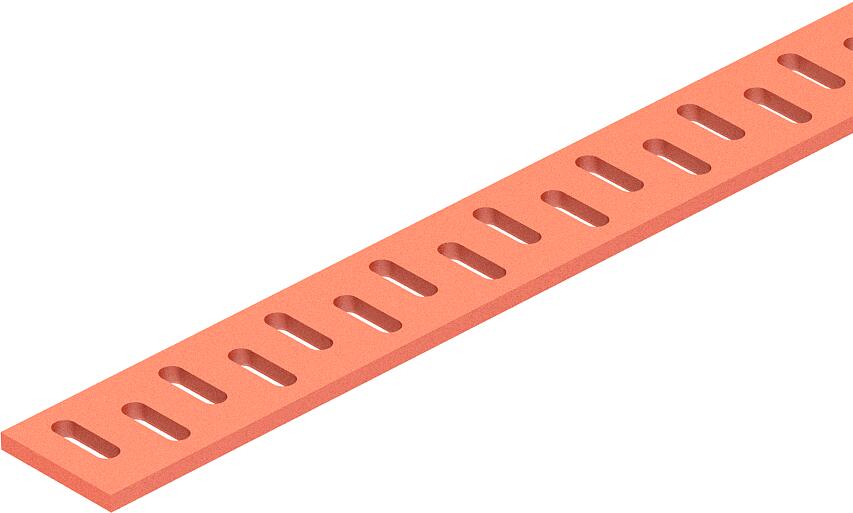

Flat iron profile with double, side-offset slot row to create suspension and support constructions.

Technical data

Technical data

Colour	rust red
Dimension	40x3000x5
Height	5 mm
Length	3000 mm
Material	Steel

Plate thickness	5 mm
Profile shape	Flat profile
Surface	Welding primed
Width	40 mm

All types

All types

Types	Length	Plate thickness	Item no.	Quantity	SSU
FESP Q 40 5 SG	3000 mm	5 mm	7104358	m	3 m

Downloads

Data sheet FESP Q 40 5 SG / 7104358 , 0.13MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Solutions for ship construction , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity FESP Q 40 5 SG / 7104358 , 0.11MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic FESP Q 40 5 SG / 7104358, 28.68 kB, jpg

Scale drawing FESP Q 40 5 SG / 7104358, 55.59 kB, jpg

FESP Q 40 5 SG / 7104358
