Construction and suspension profile FESP Q BK

Item no. 7104367 | EAN 4012196239719

Item no. / Types	7104367 / FESP Q 50 5 BK

Length	3000 mm

Plate thickness	5 mm

Product description

Product description

Flat iron profile with slots to create suspensions and support constructions.

Technical data

Technical data

Dimension	50x3000x5
Height	5 mm
Length	3000 mm
Material	Steel

Plate thickness	5 mm
Profile shape	Flat profile
Surface	Bright
Width	50 mm

All types

All types

Types	Length	Plate thickness	Item no.	Quantity	SSU
FESP Q 50 5 BK	3000 mm	5 mm	7104367	m	3 m

Downloads

Data sheet FESP Q 50 5 BK / 7104367 , 0.12MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Solutions for ship construction , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity FESP Q 50 5 BK / 7104367 , 0.11MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

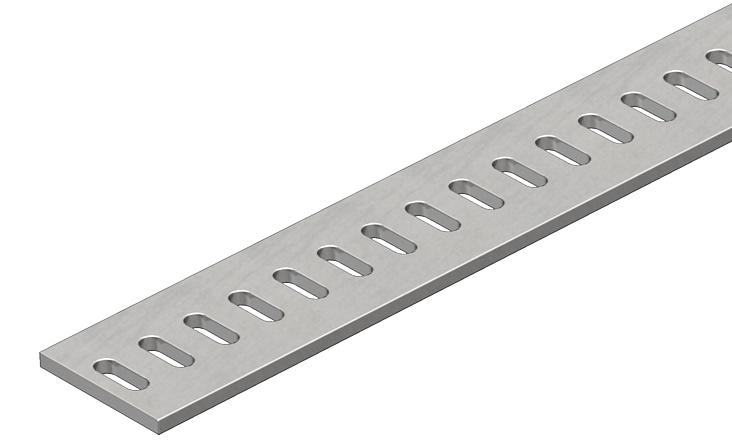

Product graphic FESP Q 50 5 BK / 7104367, 22.09 kB, jpg

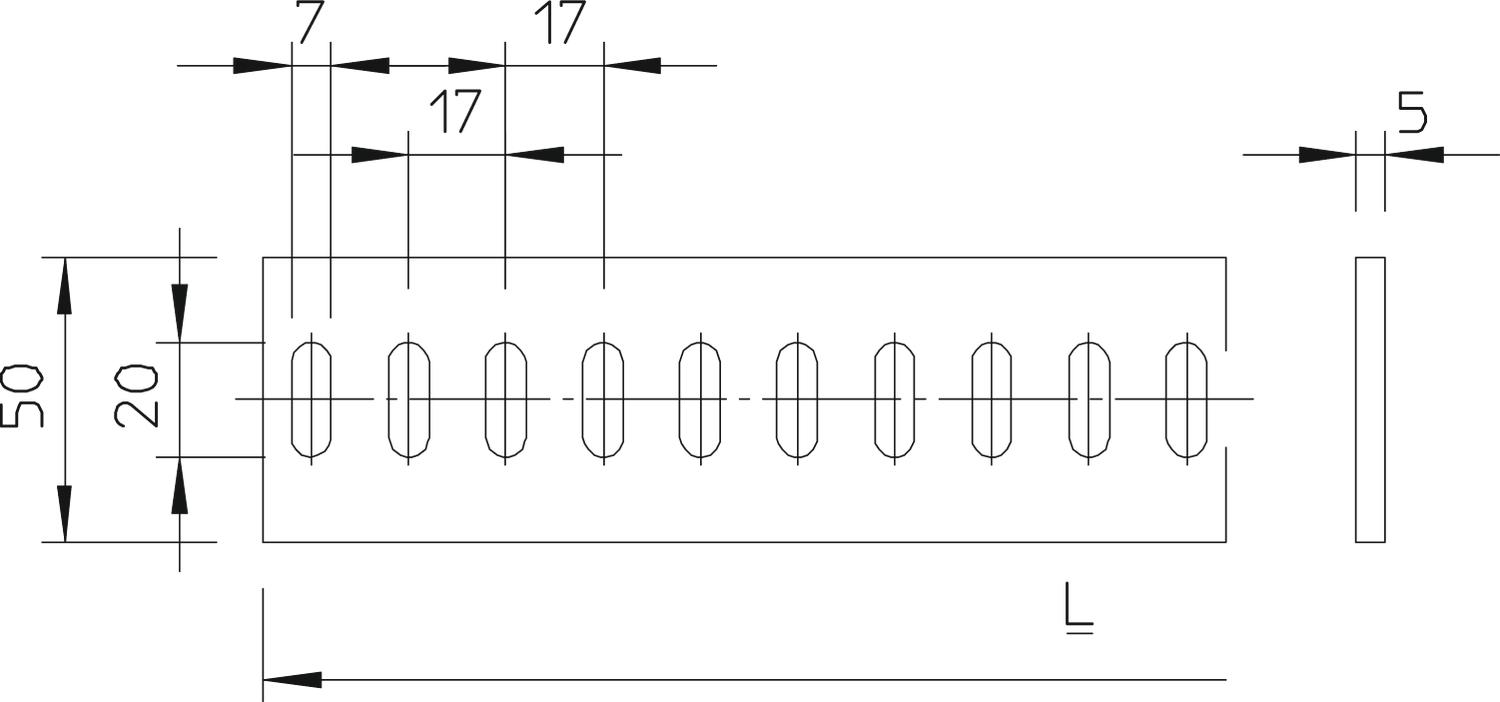

Scale drawing FESP Q 50 5 BK / 7104367, 44.36 kB, jpg

FESP Q 50 5 BK / 7104367
