Construction and suspension profile FESP L FT
Item no. 7105002 | EAN 4012196987924
- Product description
-

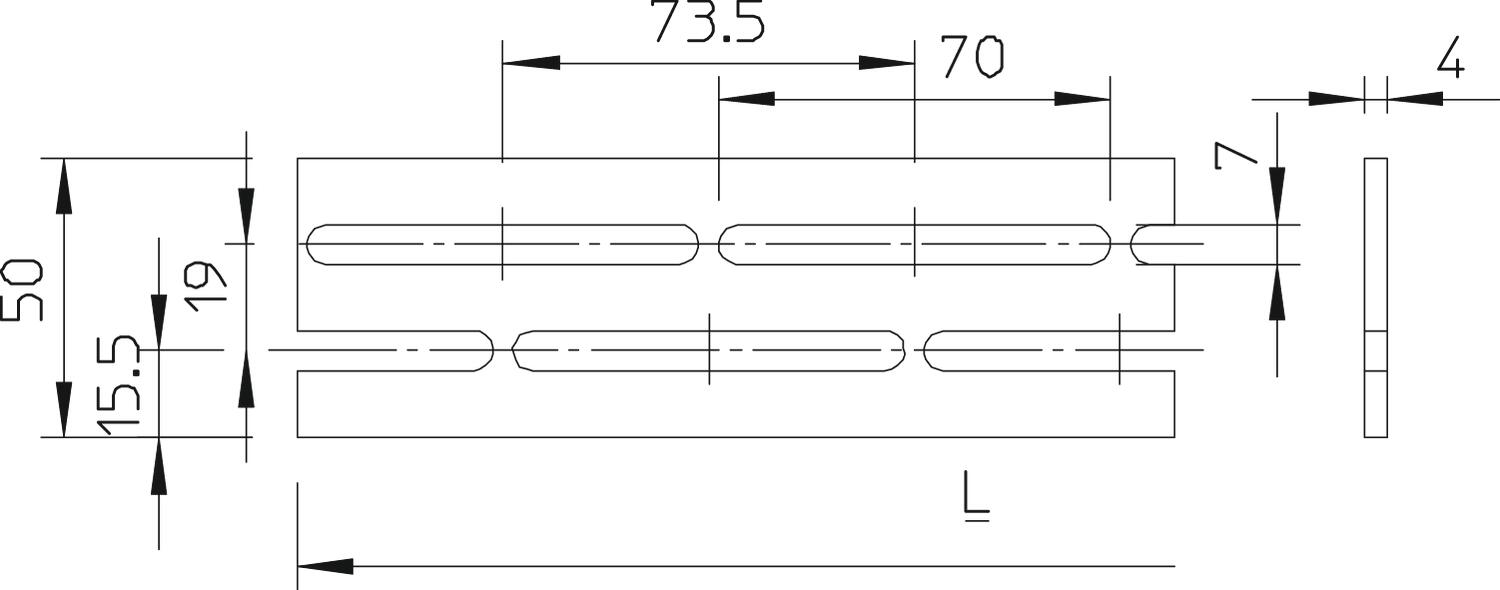

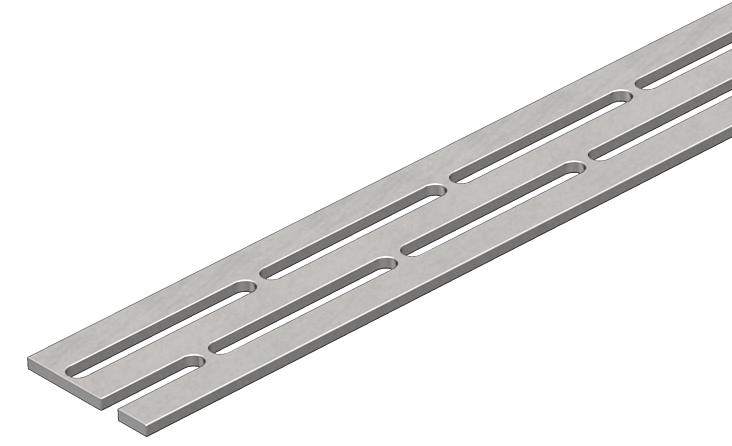

Product descriptionFlat iron profile with double, offset longitudinal hole row for creation of suspension and support constructions.
-
- Technical data
-
Technical data
Colour zinc Dimension 50x3000x4 Height 4 mm Length 3000 mm Material Steel Plate thickness 4 mm Profile shape Flat profile Surface Hot-dip galvanised Width 50 mm - All types
- Downloads
-
Data sheet FESP L 50 4 FT / 7105002 , 0.15MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity FESP L 50 4 FT / 7105002 , 0.10MB , pdfREACH Declaration of conformity FESP L 50 4 FT / 7105002 , 0.12MB , pdfRoHS Declaration of conformity FESP L 50 4 FT / 7105002 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
