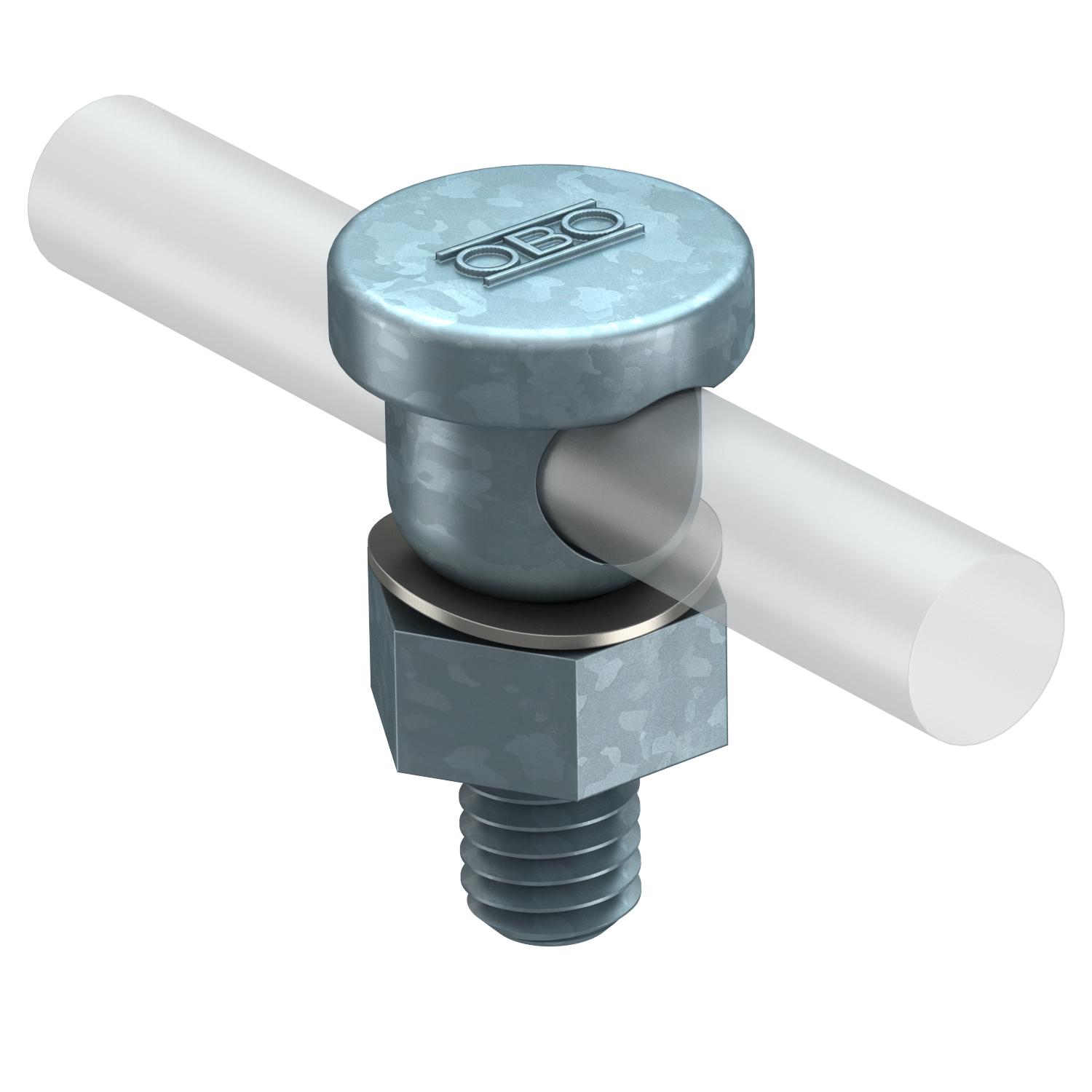

Connector, Rd 8−10 mm with M10 thread
Item no. 5304008 | EAN 4012195415695
- Product description
-
Product description• With bore hole 10.2 mm
• With thread M10
• Including pre-mounted nut M10 and serrated washer
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Material Steel Suitable for connection Miscellaneous Surface Hot galvanized Type of connector Connectors Type of fastening screw Miscellaneous - All types
- Downloads
-
Data sheet 5000 / 5304008 , 0.17MB , pdfEU declaration of conformity 5000 / 5304008 , 0.06MB , pdfMounting instructions Mounting instructions, clamp-free holder 5000 , 2.00MB , pdf
