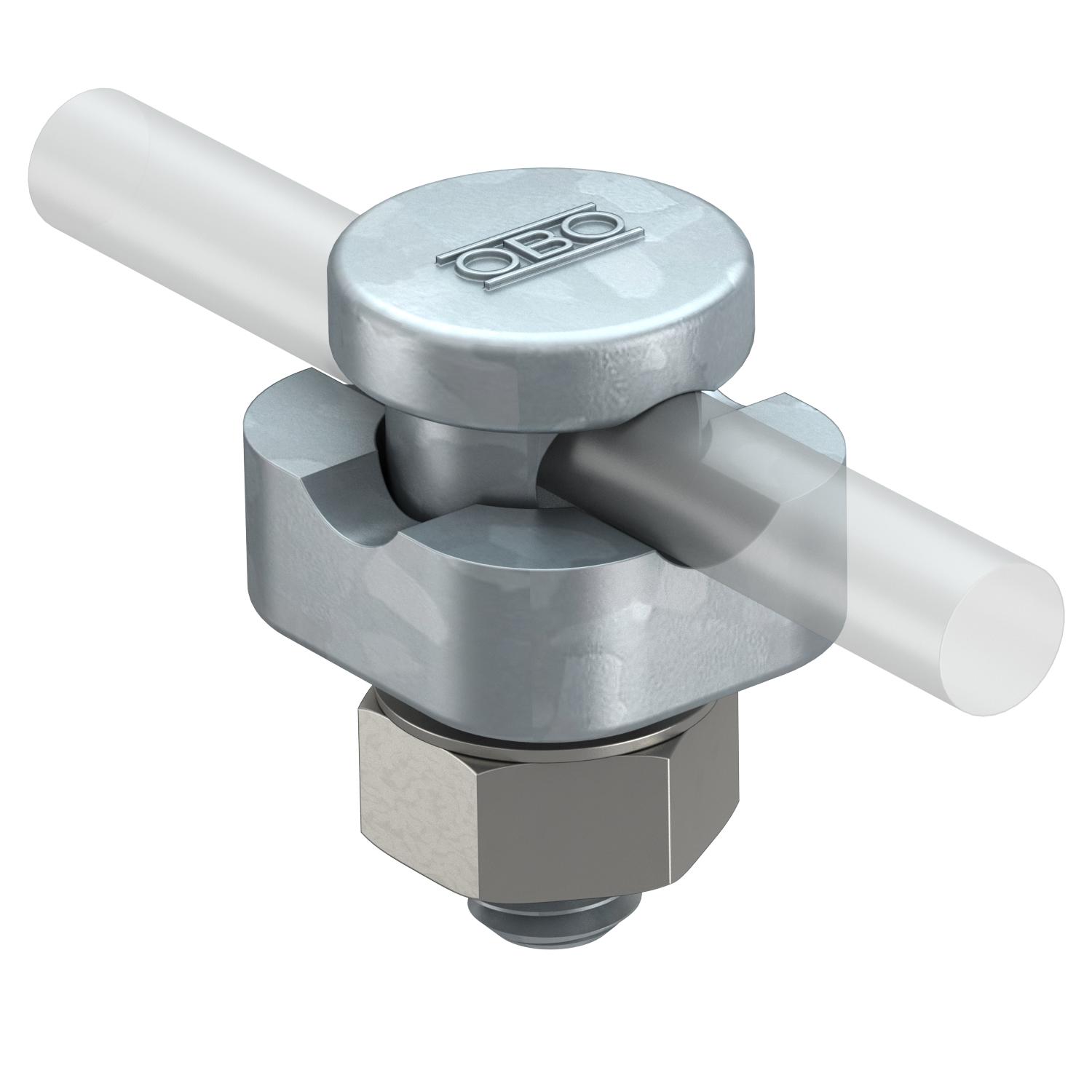

Connector Rd 8−10 mm, single
Item no. 5304107 | EAN 4012195858034
- Product description
-
Product description• With fix contact clamping screw, nut and serrated washer
• With bore hole 10.2 mm
• With pre-mounted pressure piece, die-cast zinc
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material Steel Suitable for connection Miscellaneous Surface Hot-dip galvanised Type of connector Connectors Type of fastening screw Clamping screw - All types
- Downloads
-
Data sheet 5001 DIN-FT+VA / 5304107 , 0.18MB , pdfEU declaration of conformity 5001 DIN-FT+VA / 5304107 , 0.06MB , pdf
