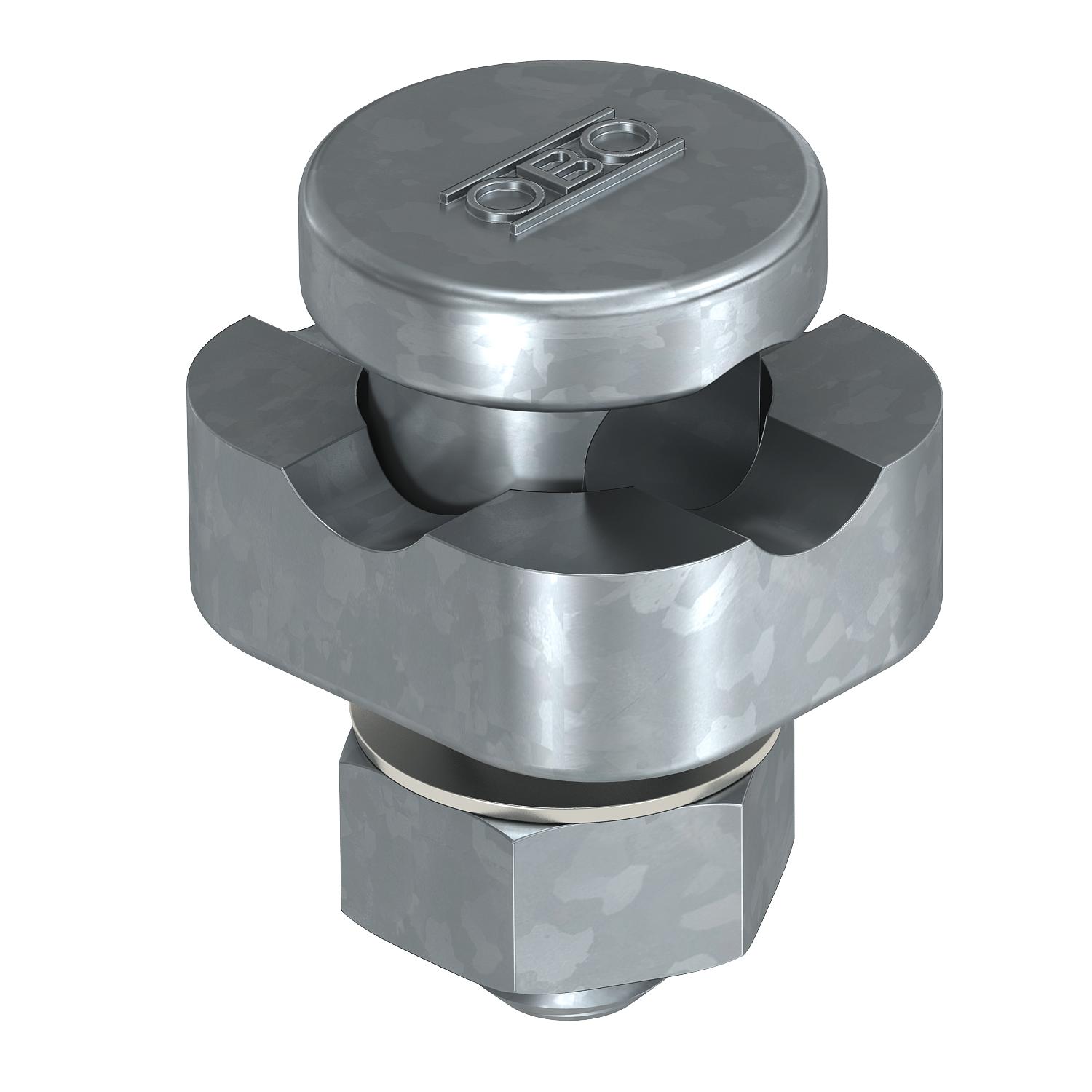

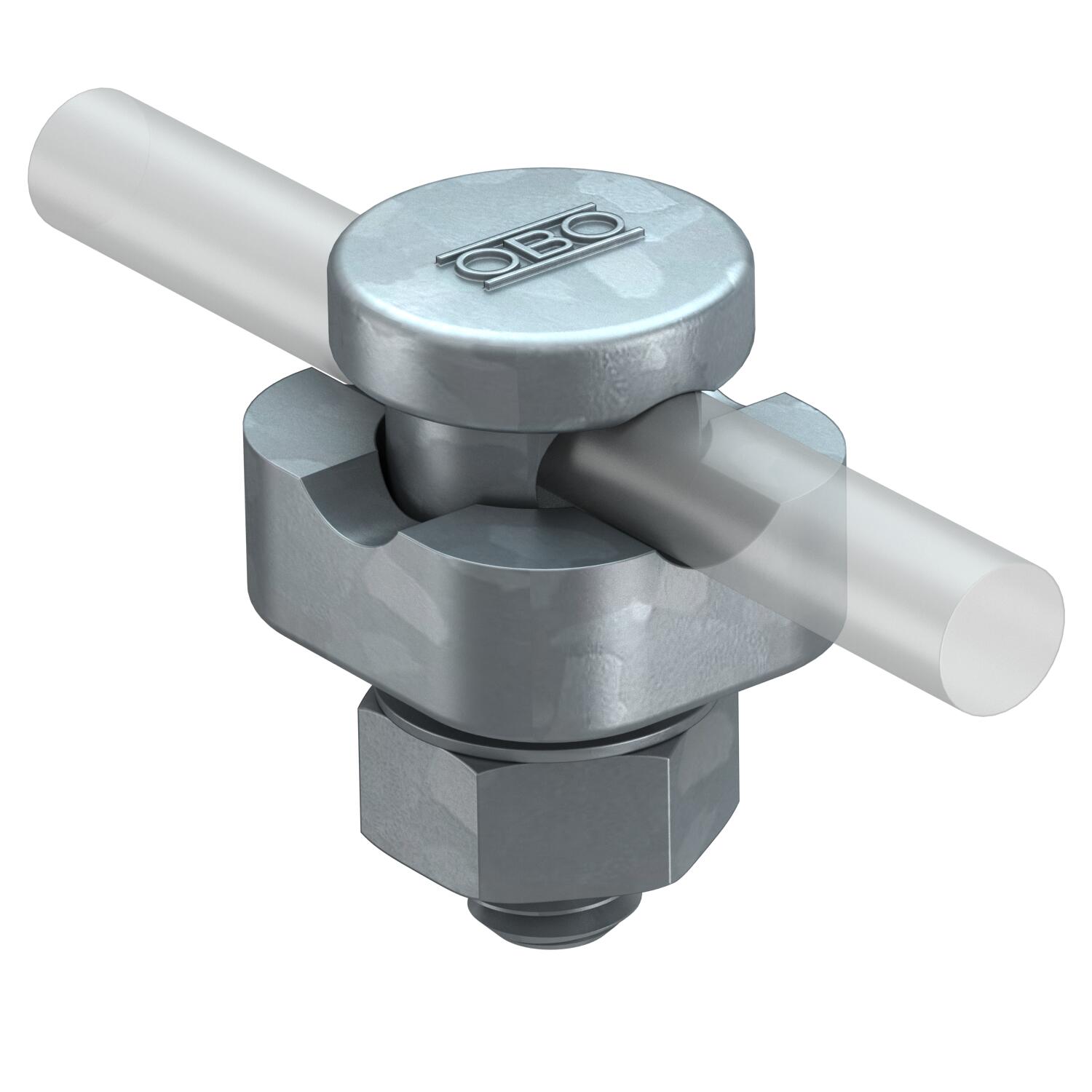

Connector Rd 8−10 mm, single
Item no. 5304105 | EAN 4012195415879
- Product description
-
Product description
• With Fix-Kontakt clamping screw, nut and serrated washer
• With 10.2 mm drill hole
• With pre-mounted thrust piece made of die-cast zinc
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Miscellaneous Surface Hot-dip galvanised Type of connector Connectors Type of fastening screw Clamping screw - All types
- Downloads
-
Data sheet 5001 DIN-FT / 5304105 , 0.18MB , pdfDeclaration of conformity 5001 DIN-FT / 5304105 , 0.06MB , pdfREACH Declaration of conformity 5001 DIN-FT / 5304105 , 0.12MB , pdfRoHS Declaration of conformity 5001 DIN-FT / 5304105 , 0.12MB , pdf
