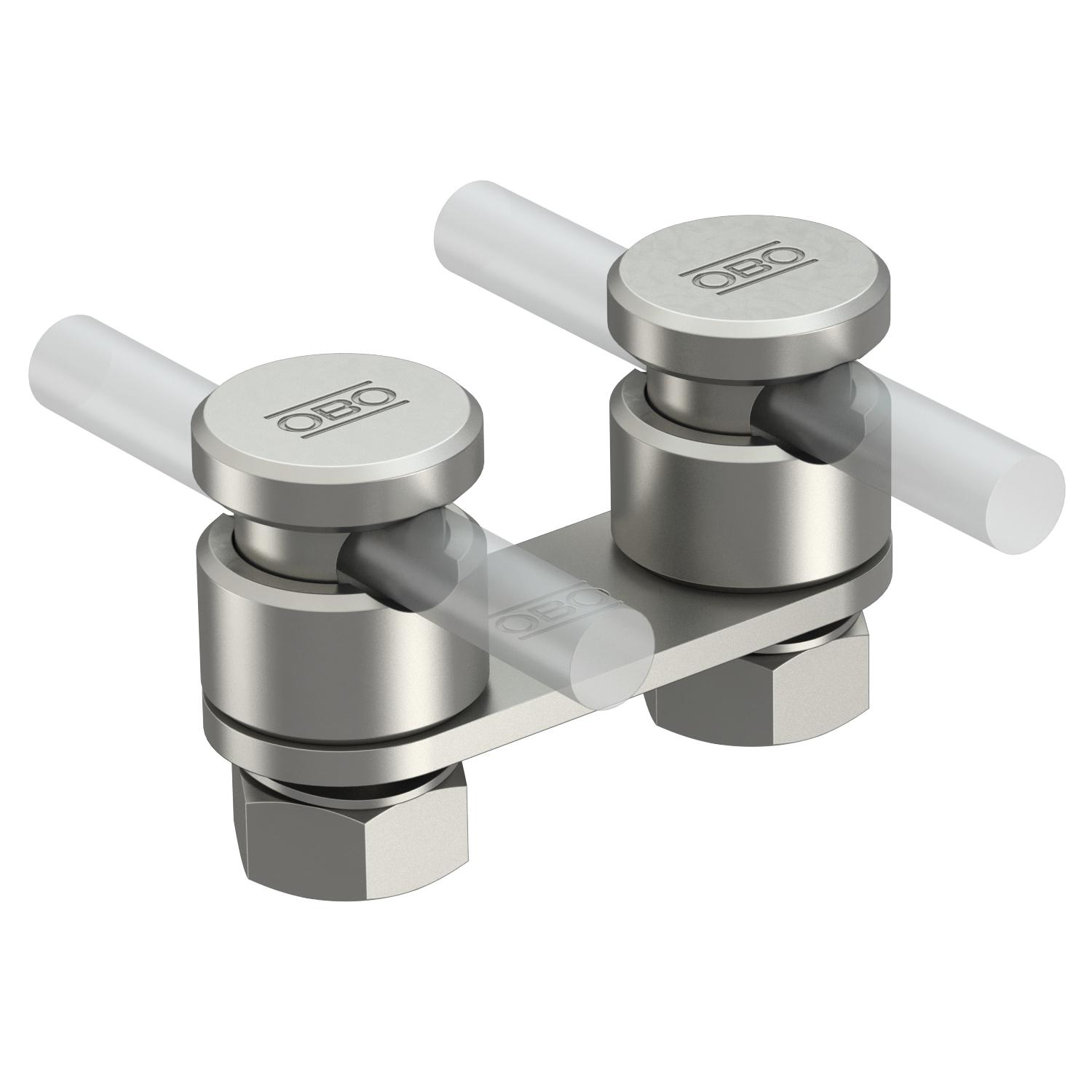

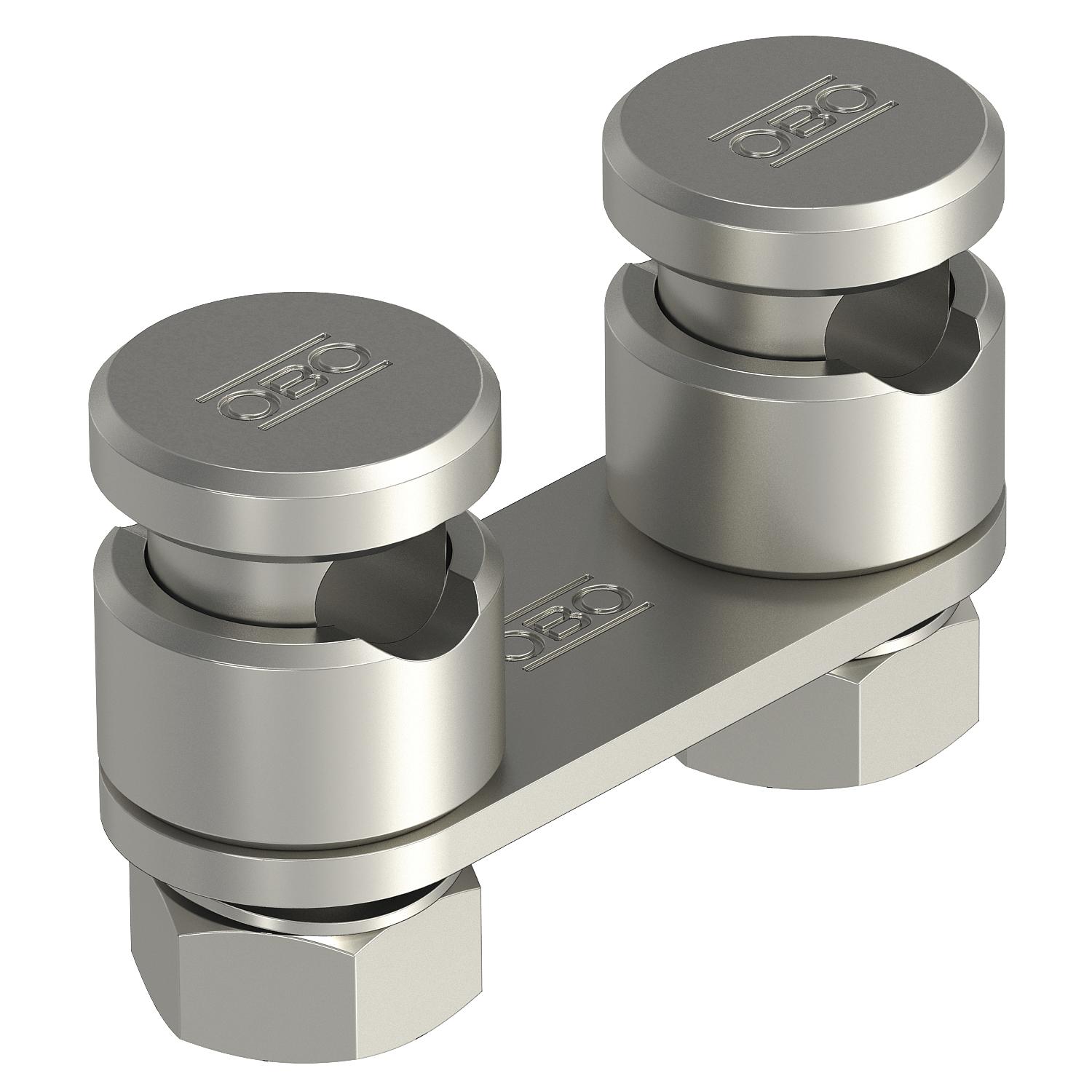

Connector, Rd 8−10 mm, double, with pressure trough
Item no. 5304270 | EAN 4012195892847
- Product description
-
Product description• With 2 Fix contact clamping screws, nuts and serrated washers
• With pre-mounted pressure trough made of VA
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data

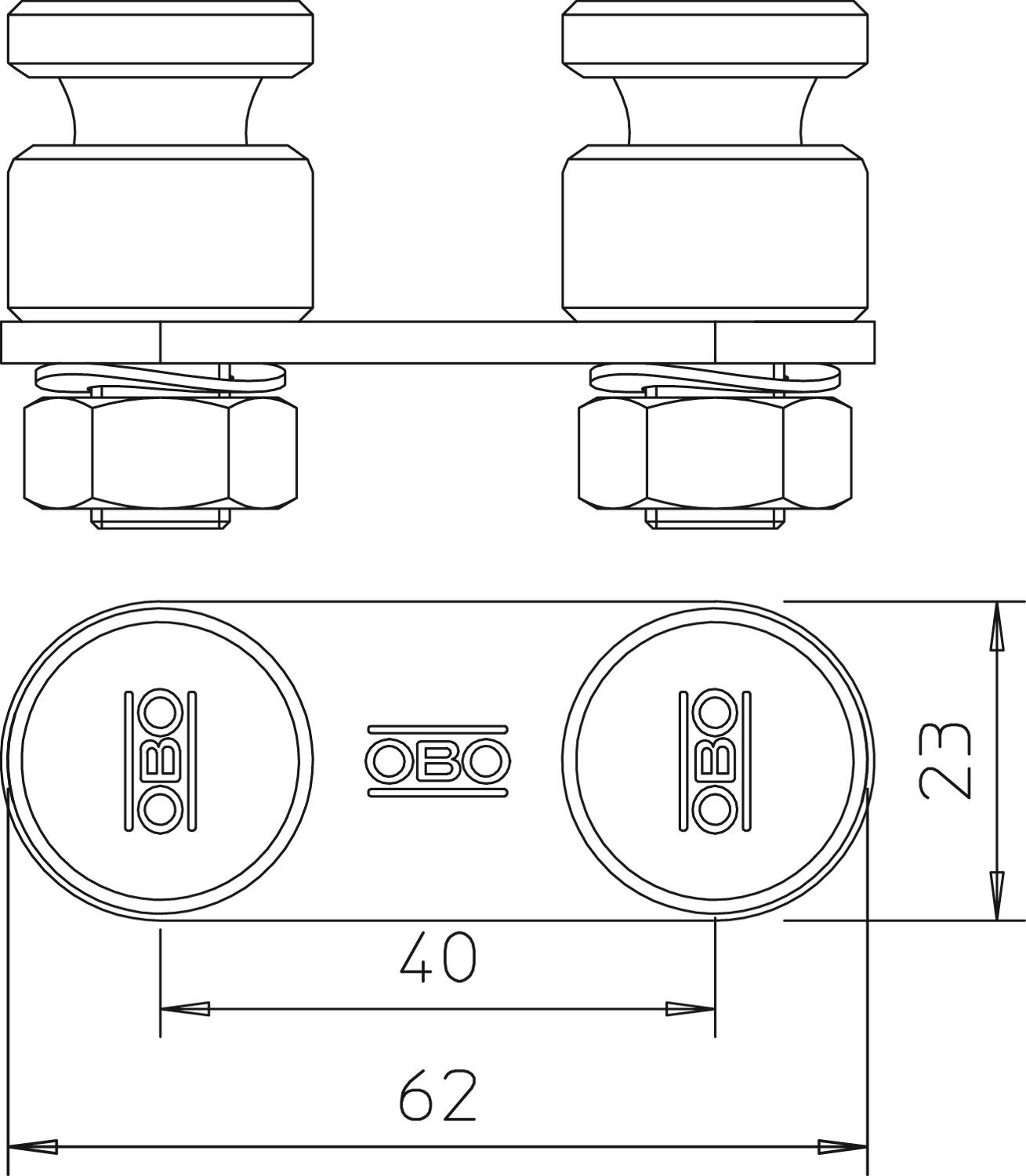

Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material Stainless steel Suitable for connection Round conductor Rd 6–10 / Rd 6–10 TBS application Miscellaneous Type of connector Connectors Type of fastening screw Clamping screw - All types
- Downloads
-
Data sheet 5002 N-VA / 5304270 , 0.19MB , pdfEU declaration of conformity 5002 N-VA / 5304270 , 0.06MB , pdfREACH Declaration of conformity 5002 N-VA / 5304270 , 0.12MB , pdfRoHS Declaration of conformity 5002 N-VA / 5304270 , 0.12MB , pdfMounting instructions Connector, Rd 8−10 mm, double, with pressure trough , 2.00MB , pdf
