Connector part, 5-pin, screw connection
Item no. 6108070 | EAN 4012195273707
- Product description
-

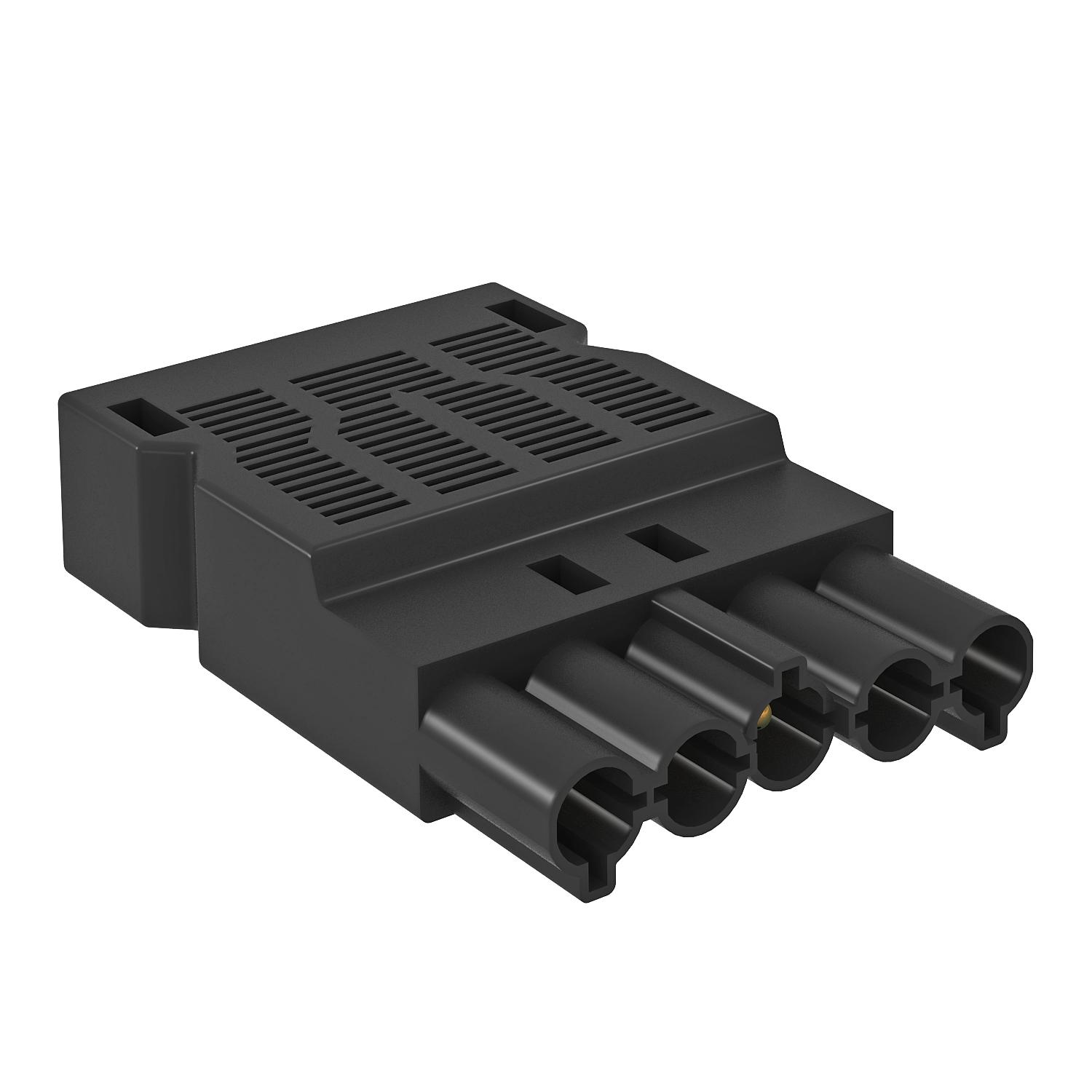

Product descriptionConnector part, 5-pin, type GST18i, with screw connection for 1.5−2.5 mm² cables, single and fine-wire, with strain relief, one connection per pin, unmounted, for cables H05VV (Ø 9.5−13.5) NYM and (Ø 10.5−13.5 mm), lockable, according to the strain relief in VDE 0628 a lock should be planned, 250 V, 16 A.
Stripping length: 8 mm
Jacket removal length: 46 mm
-
- Technical data
-
- All types
- Downloads
-
Data sheet ST-S GST18i5p SW / 6108070 , 0.17MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity ST-S GST18i5p SW / 6108070 , 0.13MB , pdfREACH Declaration of conformity ST-S GST18i5p SW / 6108070 , 0.12MB , pdfRoHS Declaration of conformity ST-S GST18i5p SW / 6108070 , 0.12MB , pdfNo invitation to tender text is available for this product.
