- Product description
-
Product description

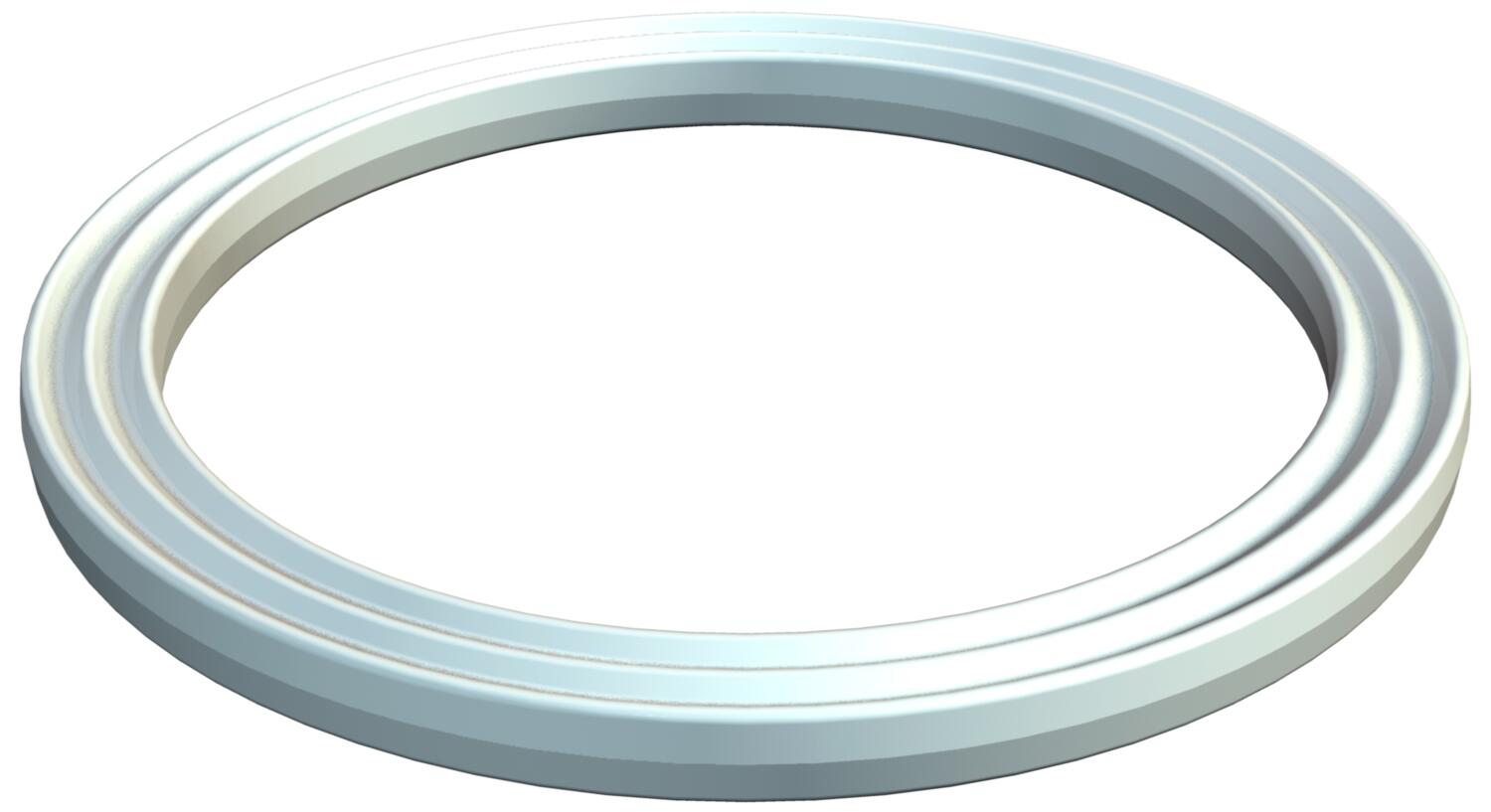

Connection thread sealing ring, in accordance with Part 9 to DIN 46320, however, dimensions may, according to material or function, deviate, suitable for all plastic cable glands with PG connection thread to DIN EN 40430, the internal diameter of the sealing rings are designed so that they can be captively pre-mounted.
- Technical data
-
Technical data

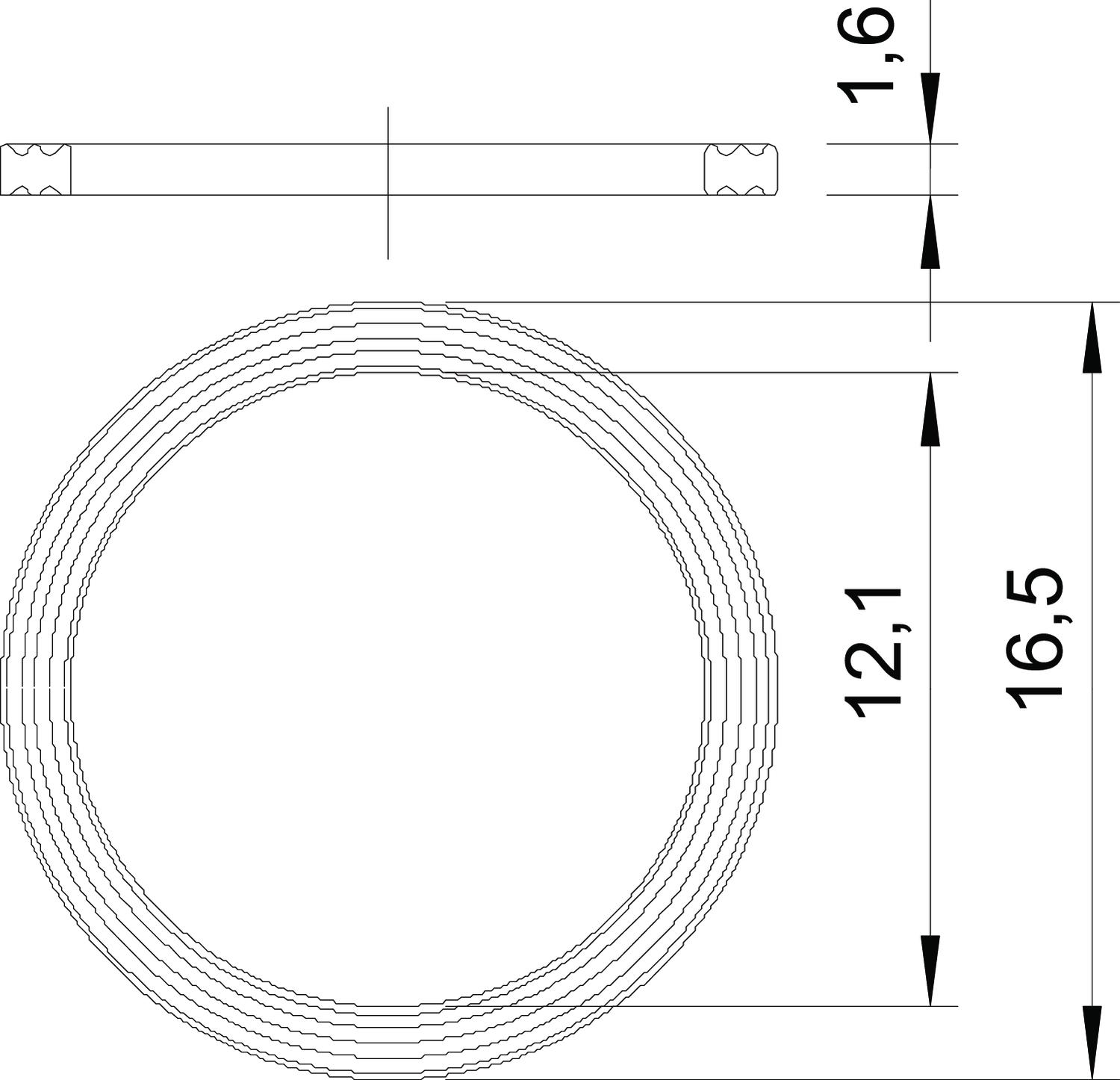

Dimension PG7 Dimension D1 16,5 mm Dimension D2 12,1 mm Dimension t 1,6 mm External diameter 16,5 mm Halogen-free yes Inner diameter 12,1 mm Material Polyethylene Screw for PG thread dimension 7 Thickness 1,6 mm Version for Flat sealing ring - All types
-
All types
- Downloads
-
Data sheet 107 F PG7 PE / 2030071 , 0.15MB , pdfREACH Declaration of conformity 107 F PG7 PE / 2030071 , 0.12MB , pdfRoHS Declaration of conformity 107 F PG7 PE / 2030071 , 0.12MB , pdf
